TRRS Male to DB9 PIN Female Spiral Cable
Cable Specifications:28AWG*2C+D+AL elastic TPU
OD:3.5mm
Baking wire size: Coil length 200mm
Magnetic ring:Injection molded at both ends
Connector1:TRRS Male Gold Plated,180 Degree Green Injection Molding
Connector2:DB9 PIN Female,Injection Molded Black
Test requirements (100% test) :No short circuit,open circuit,dislocation,poor insulation,etc.

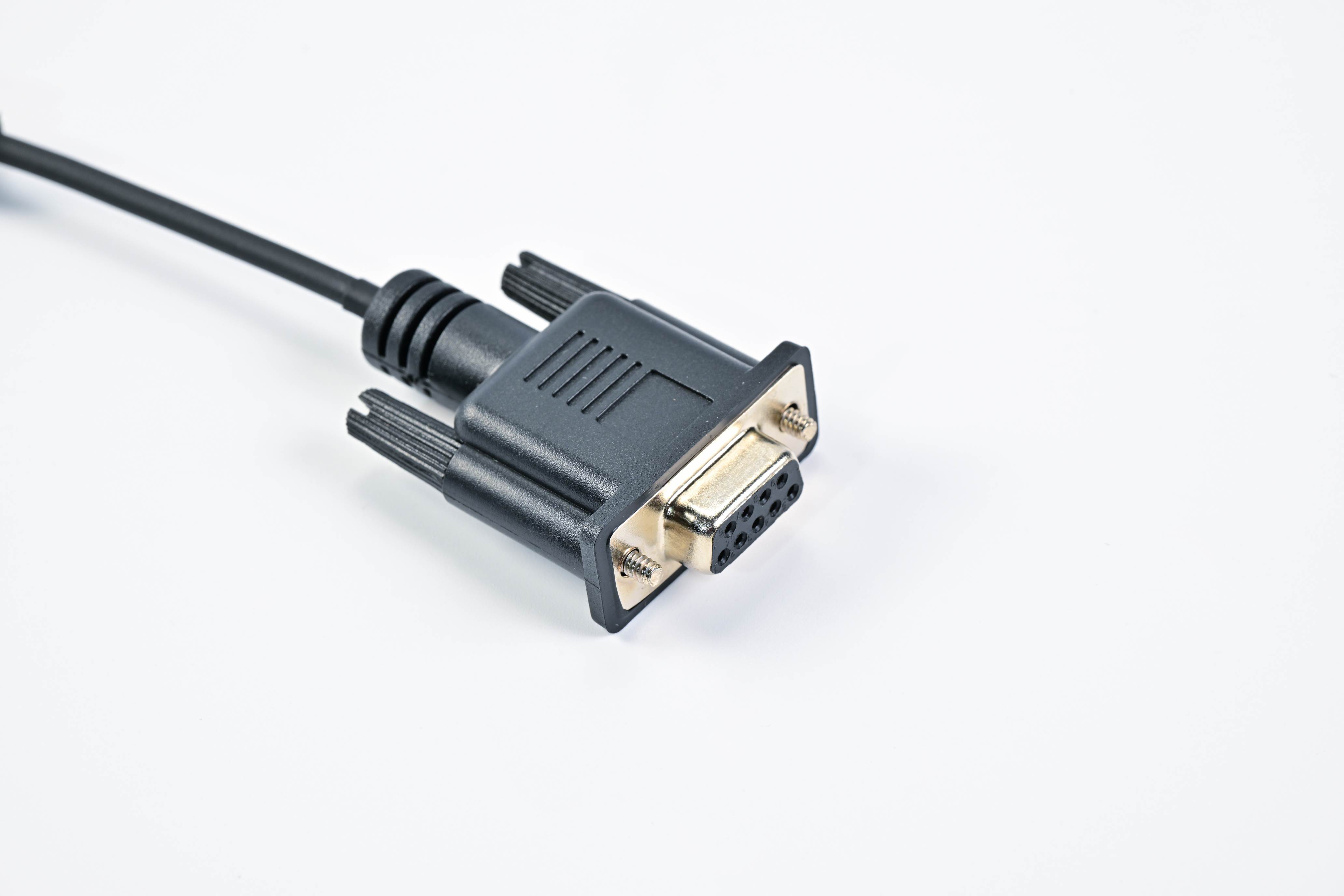

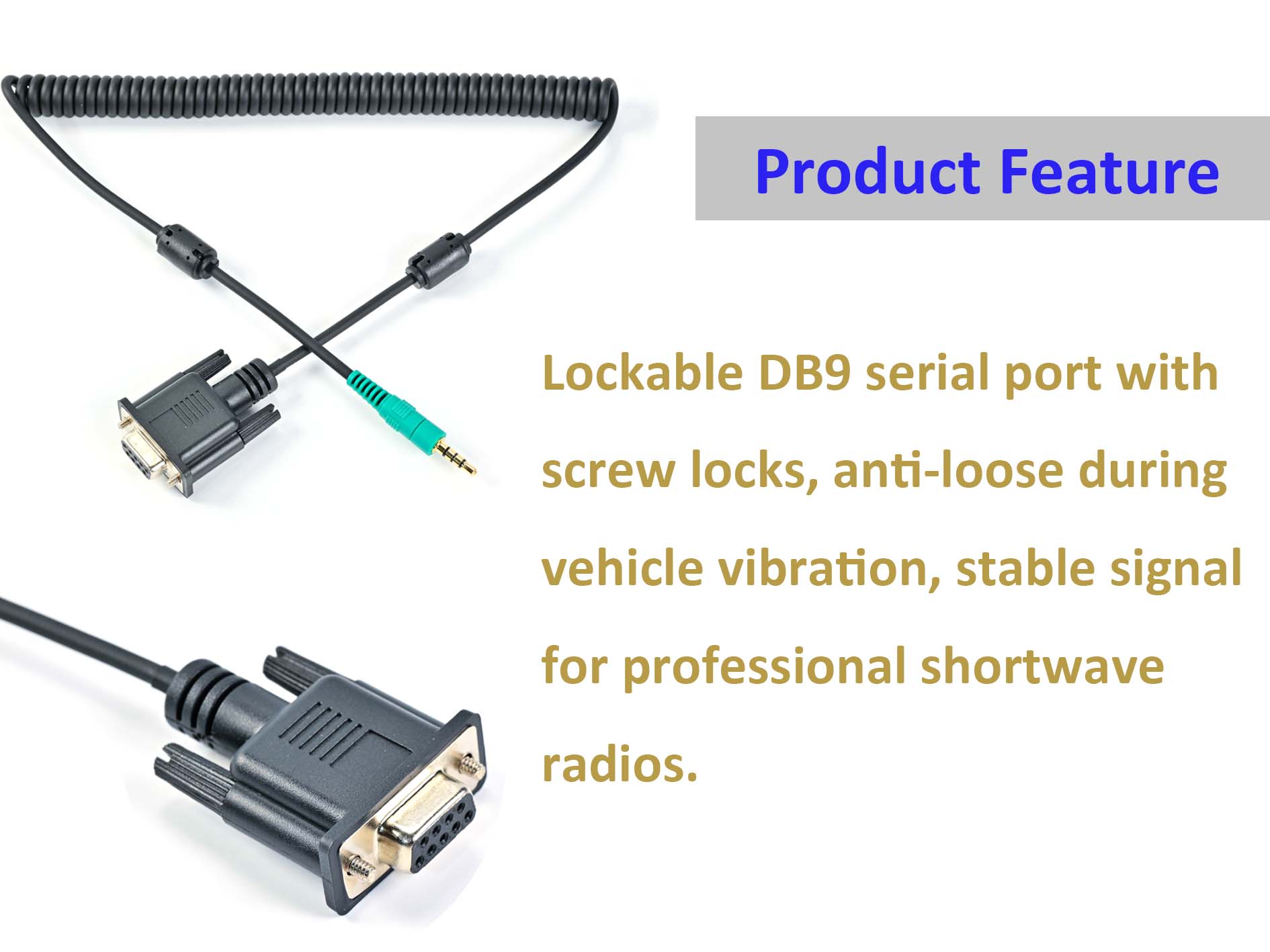

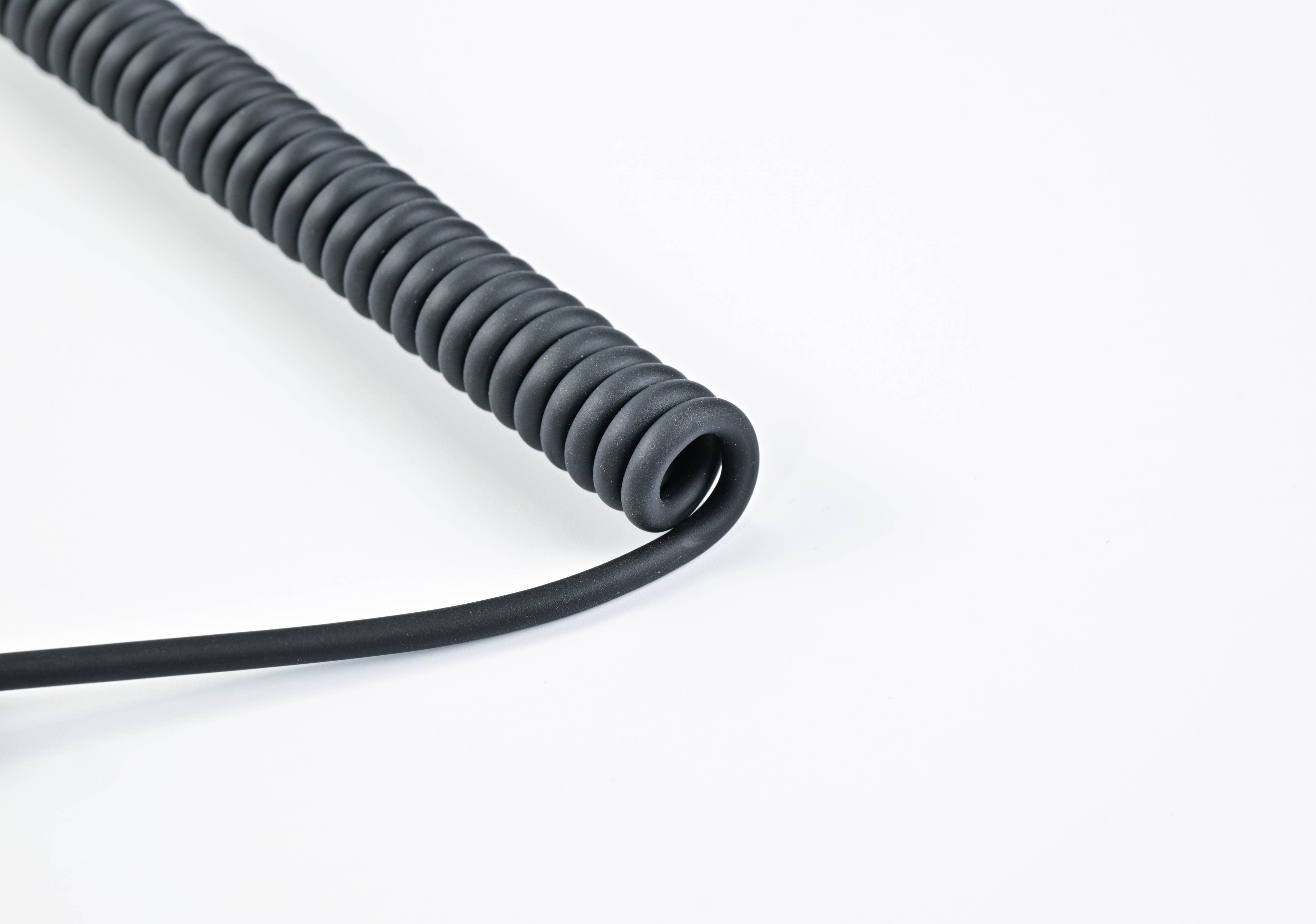

This TRRS male to DB9 PIN female spiral cable is made of durable TPU material and fitted with magnetic rings to reduce signal interference. It features a lockable DB9 PIN female serial connector secured by screws,which stays tightly connected under vehicle vibration and delivers stable data transmission for professional shortwave radios.The retractable coiled design of TRRS male to DB9 PIN female spiral cable saves interior space,avoids tangled wiring and buffers pulling force to extend the service life of plugs and cables.

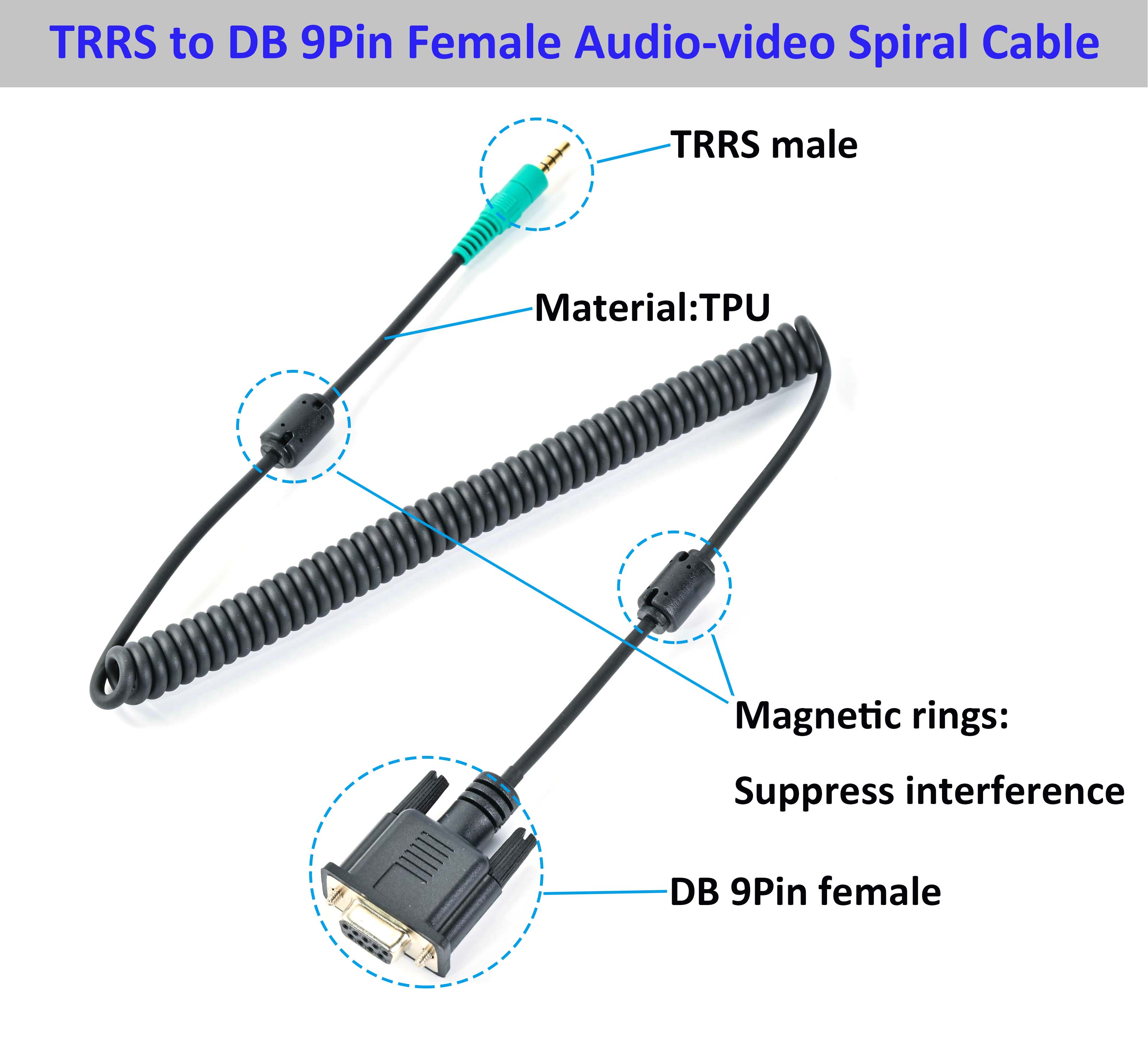

The TRRS male to DB9 PIN female spiral cable,one end is TRRS male gold plated,the other end is DB9 PIN female.The material of spiral cable is TPU.Our TRRS male to DB9 PIN female spiral cable is certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

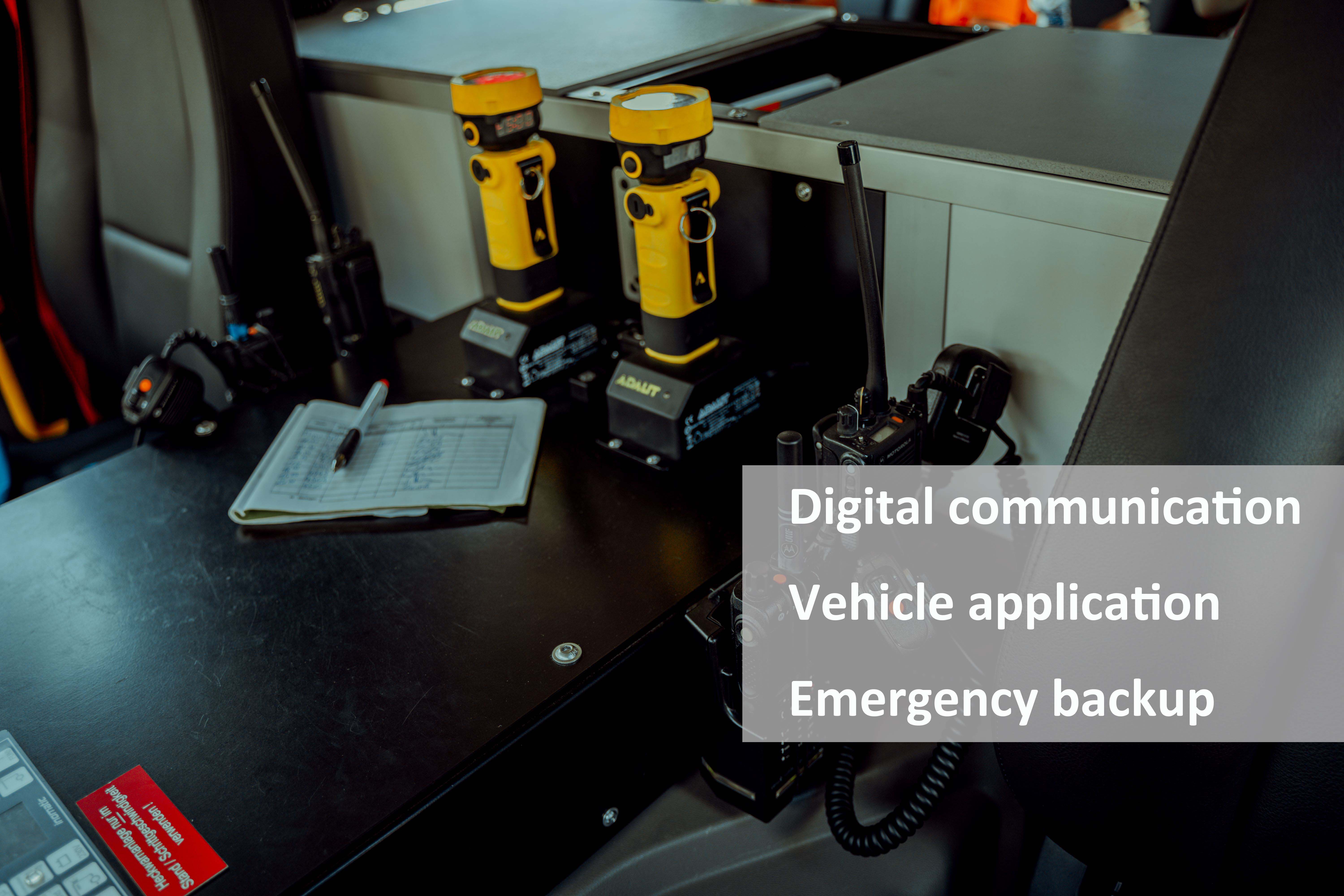

This TRRS male to DB9 PIN female spiral cable connects DB9 shortwave radios to computers via Digirig sound card for FT8 long-distance communication,image transmission and APRS positioning.The screw-locked DB9 Pin connector is anti-loosening under vibration,and the retractable coiled wire enables neat vehicle wiring for HAM off-road use. Our TRRS male to DB9 PIN female spiral cable also creates independent radio links for rescue dispatch when public communication networks fail in disasters.
Detailed Display of The Product
| Cable Name: | TRRS Male to DB9 PIN Female Spiral Cable |
| Cable Specifications: | 228AWG*2C+D+AL elastic TPU |
| Baking wire size: | Coil length 200mm |
| OD： | 3.5mm |
| Coil diameter: | 14mm,each end stay:180mm |
| Rod diameter: | 7mm |
| Magnetic ring: | Injection molded at both ends |
| Connector1: | TRRS Male Gold Plated,180 Degree Green Injection Molding |
| Connector2: | DB 9PIN Female Injection Molded Black |
| Test requirements (100% test): | No short circuit,open circuit,dislocation,poor insulation,etc. |
