2*TRS  to TRRS Spiral Cable

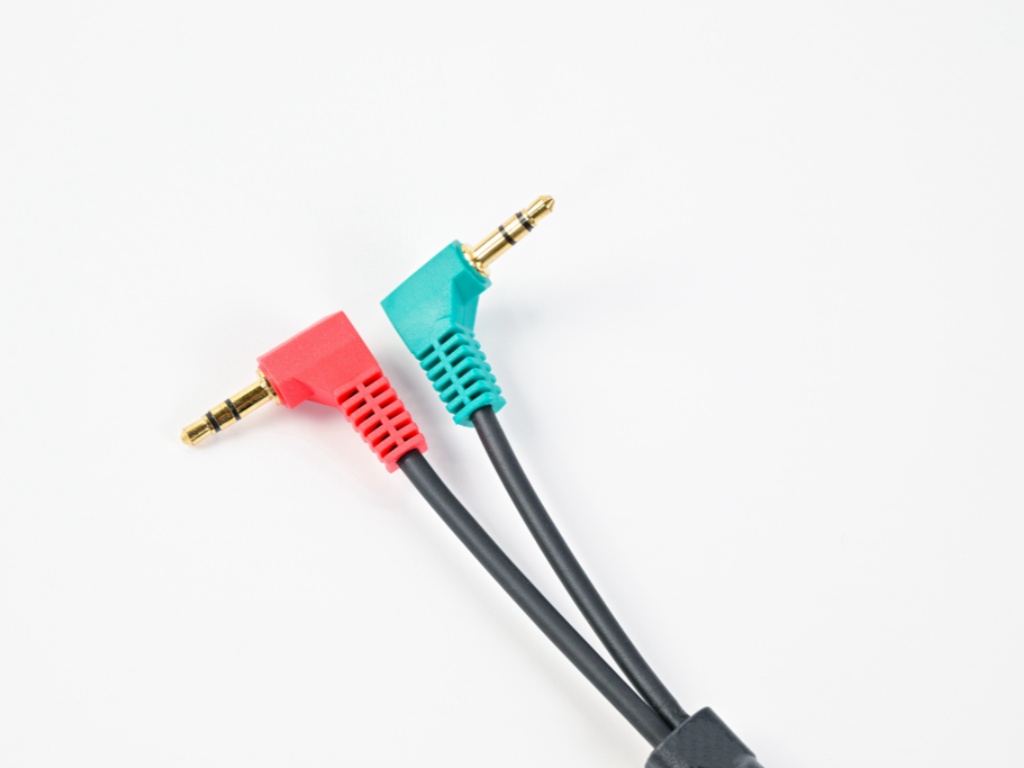

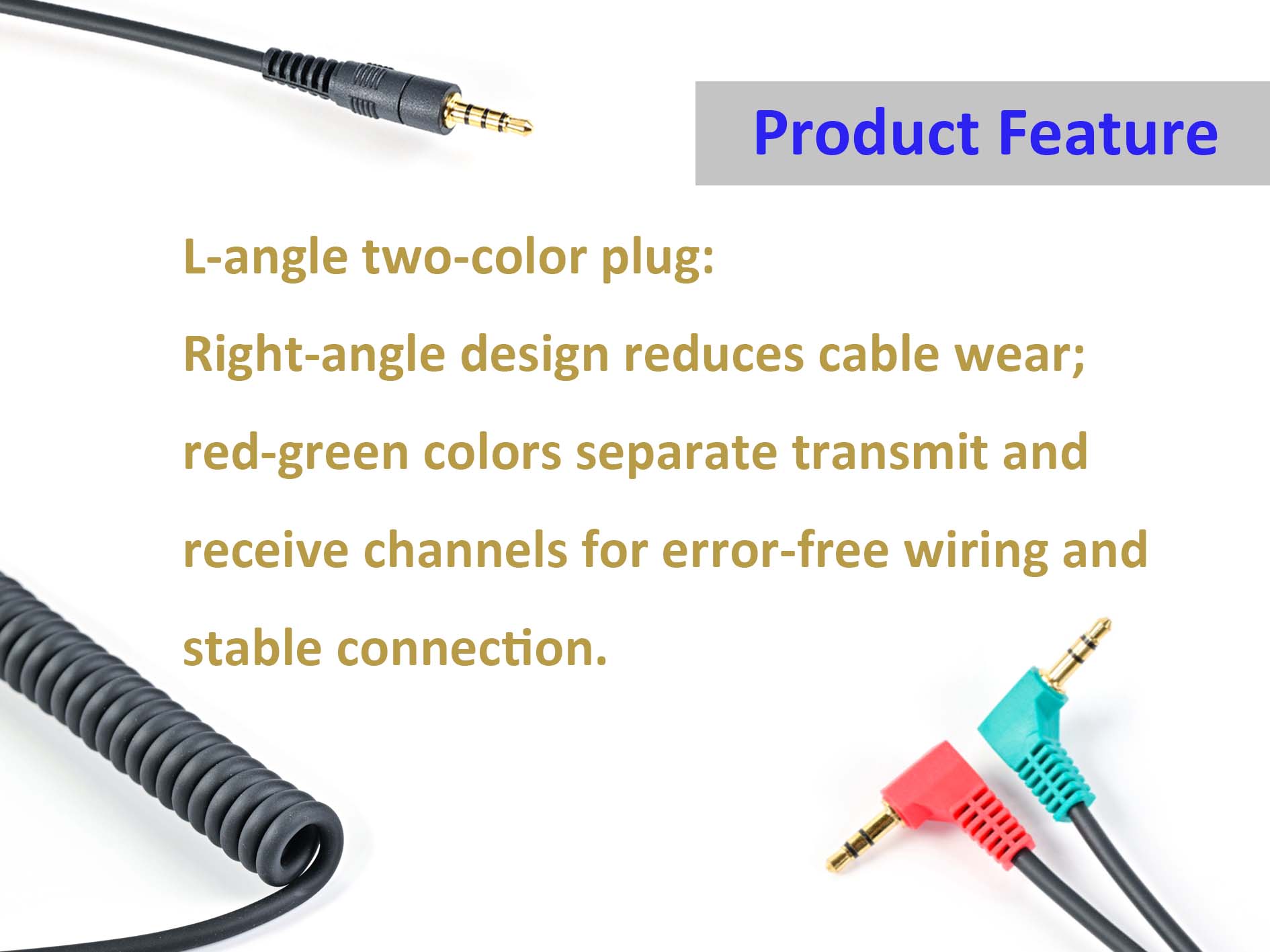

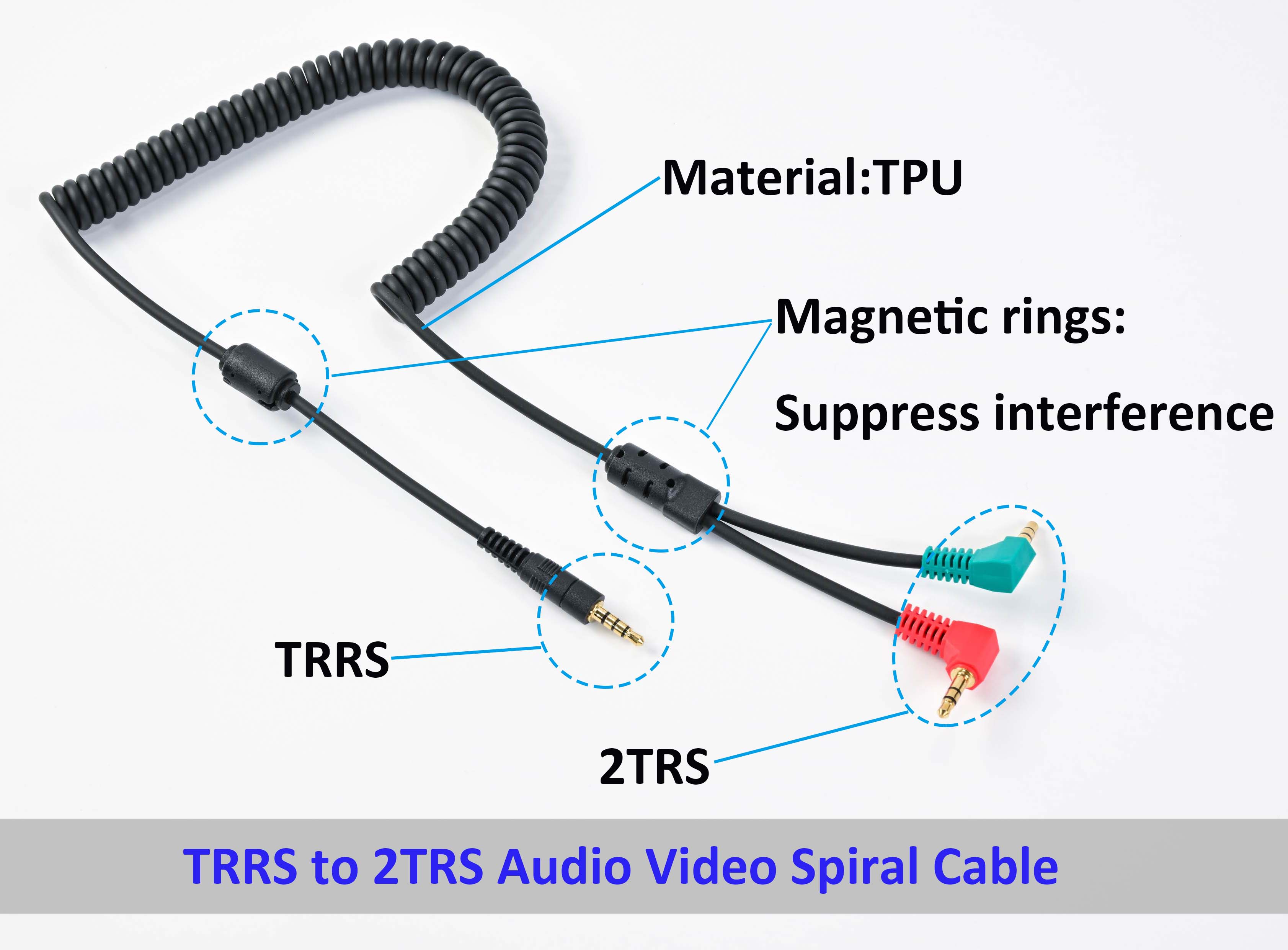

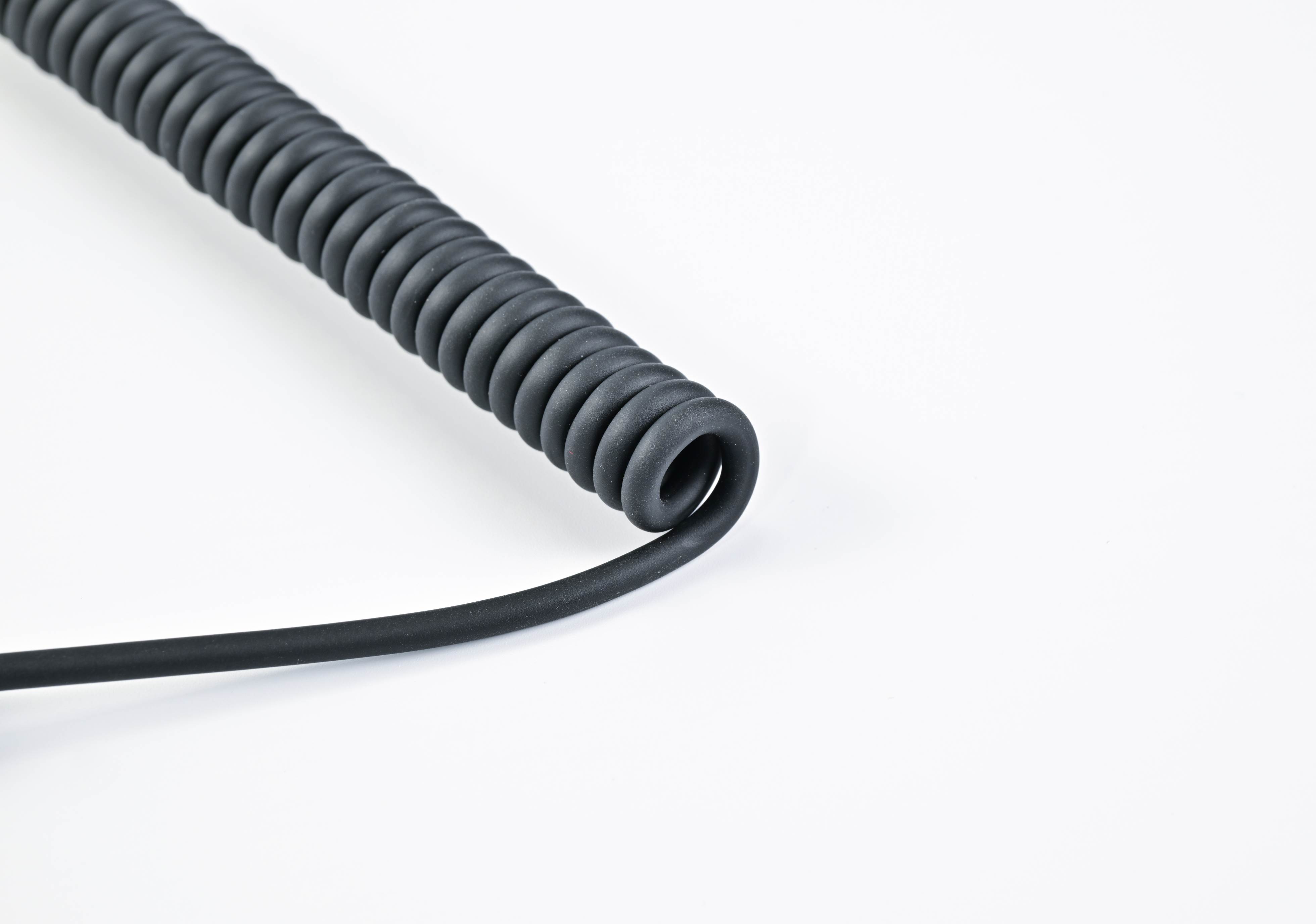

This 2*TRS  to TRRS spiral cable is made of flexible TPU material and equipped with magnetic rings to block signal interference.It adopts L-shaped color-coded plugs,which effectively reduce cable bending damage. Red and green plugs clearly mark transmit and receive channels for error-free wiring and stable connection. The retractable coiled cord avoids tangled wiring inside vehicles, buffers pulling tension during driving and greatly extends the service life of connectors.

The 2*TRS  to TRRS spiral cable,one end is TRRS male gold plated,the other end is TRS male gold plated.The material of  spiral cable is TPU.Our 2*TRS  to TRRS spiral cable is certified strictly and passed 100% testing.

XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and  OEM,one-stop service,please contact us for customised solutions to meet your requirements!

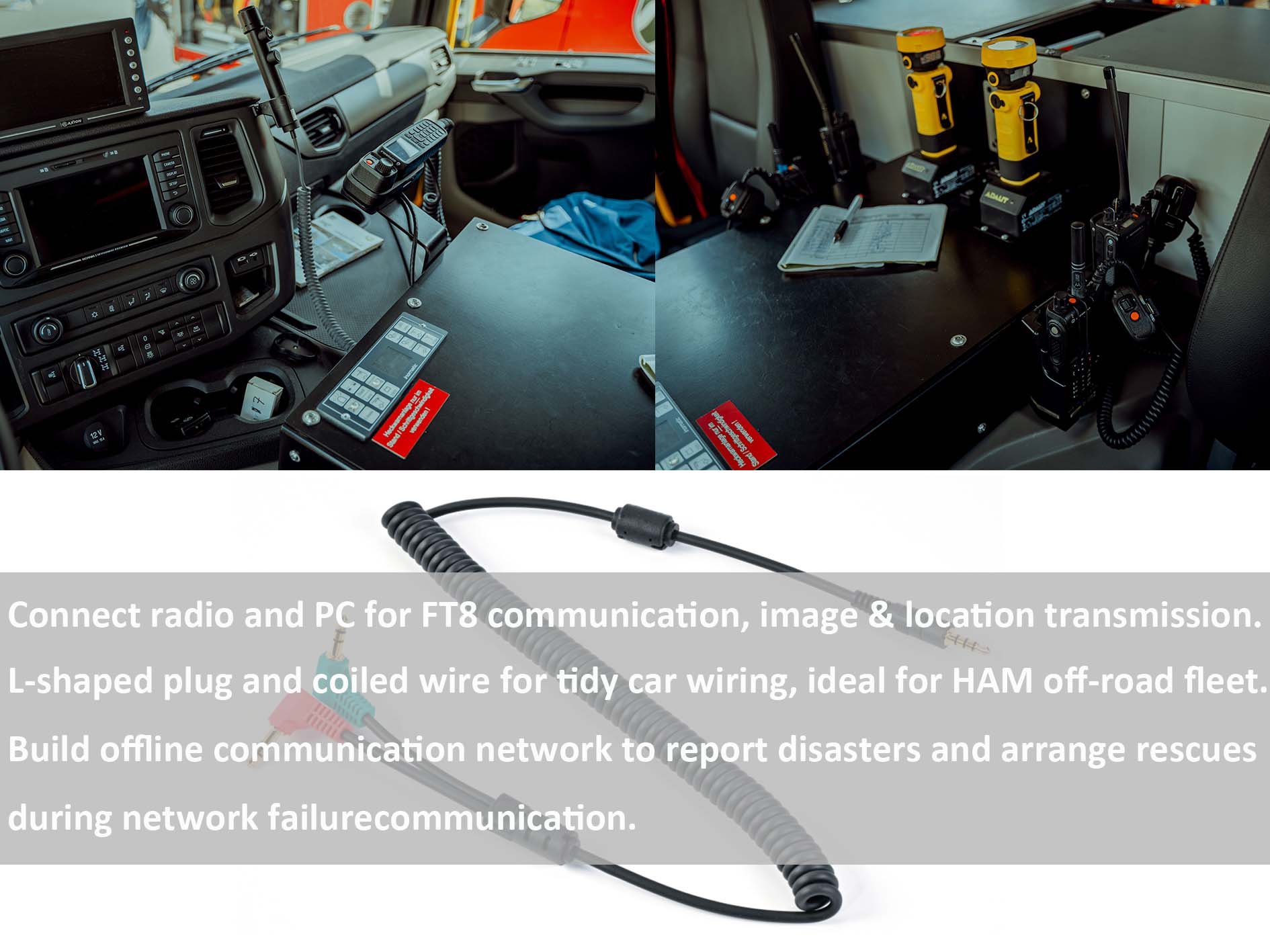

Our 2*TRS  to TRRS spiral cable connects shortwave radios to computers with Digirig sound card for FT8 long-distance communication, image transmission and APRS location reporting. The coiled cord and L-shaped plugs facilitate tidy vehicle wiring for HAM off-road fleet networking. When public networks fail in disasters, this 2*TRS  to TRRS spiral cable builds an offline communication link to deliver disaster information and rescue instructions.

Detailed Display of The Product

Cable Name:	2*TRS  to TRRS Spiral Cable
Cable Specifications:	28AWG*3C+D+AL+60P elastic TPU
Baking wire size:	coil length 200mm
OD：	3.5mm
Coil diameter:	14mm
Rod diameter:	7mm

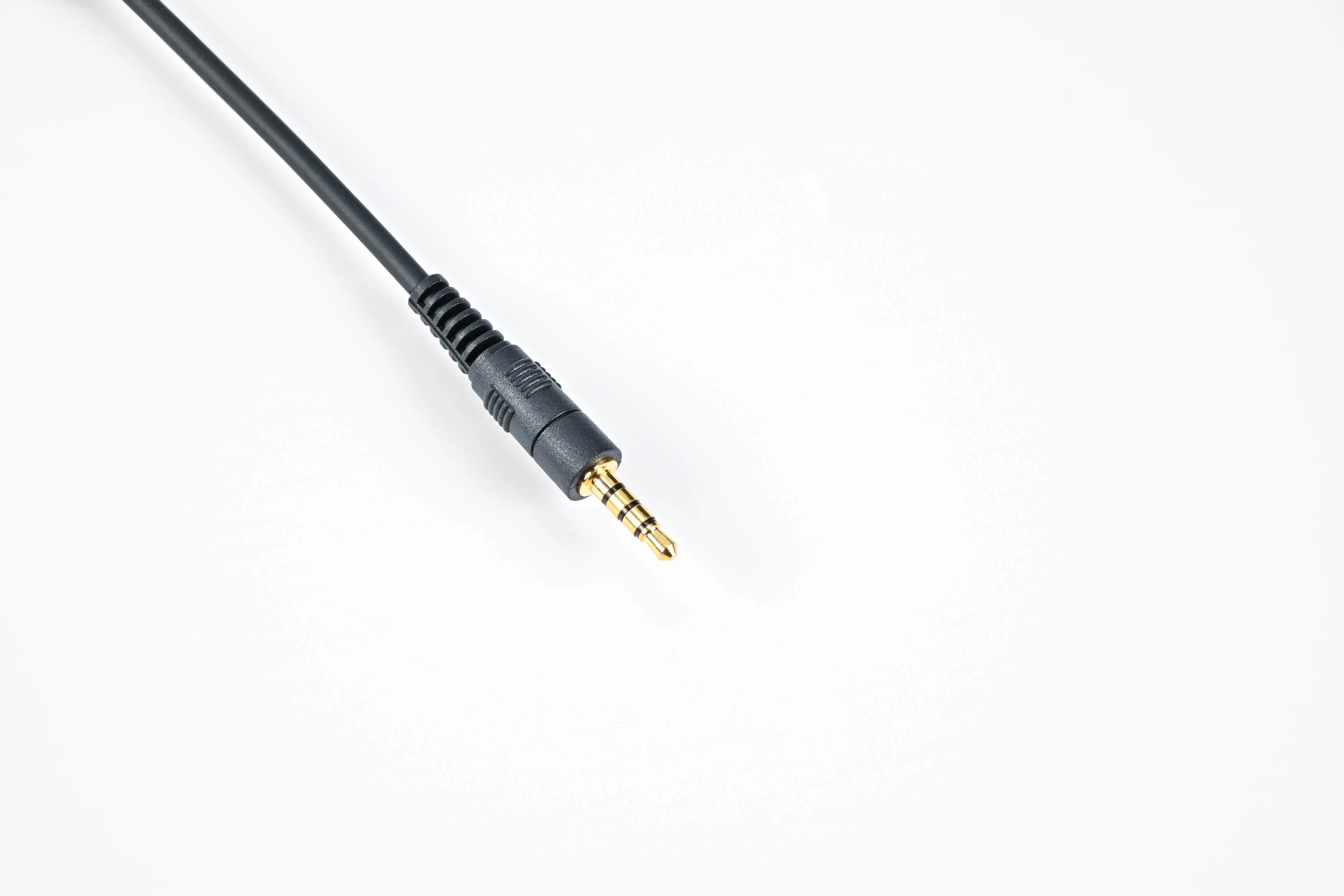

Connector1:	TRRS Male Gold Plated,180 Degree Molding
Connector2:	2*TRS Male Gold Plated,180 Degree Molded Green,Red
Lengths:	200mm
Test requirements (100% test):	No short circuit,open circuit,dislocation,poor insulation,etc.
