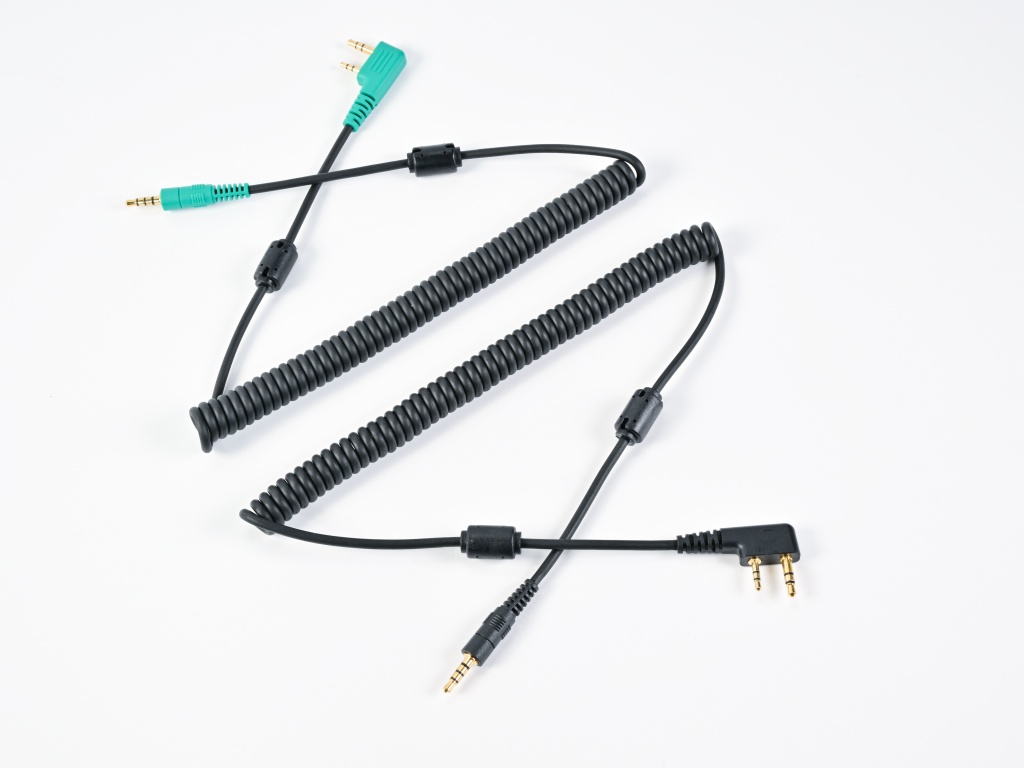

K1 to TRRS Spiral Cable
Cable Specifications: 28AWG*2C+D+AL+60P Elastic TPU
OD:3.5mm,Injection molded magnetic ring at both ends
Baking wire size: coil length 200mm
Coil diameter:14mm,each end:180mm
Rod diameter:7mm

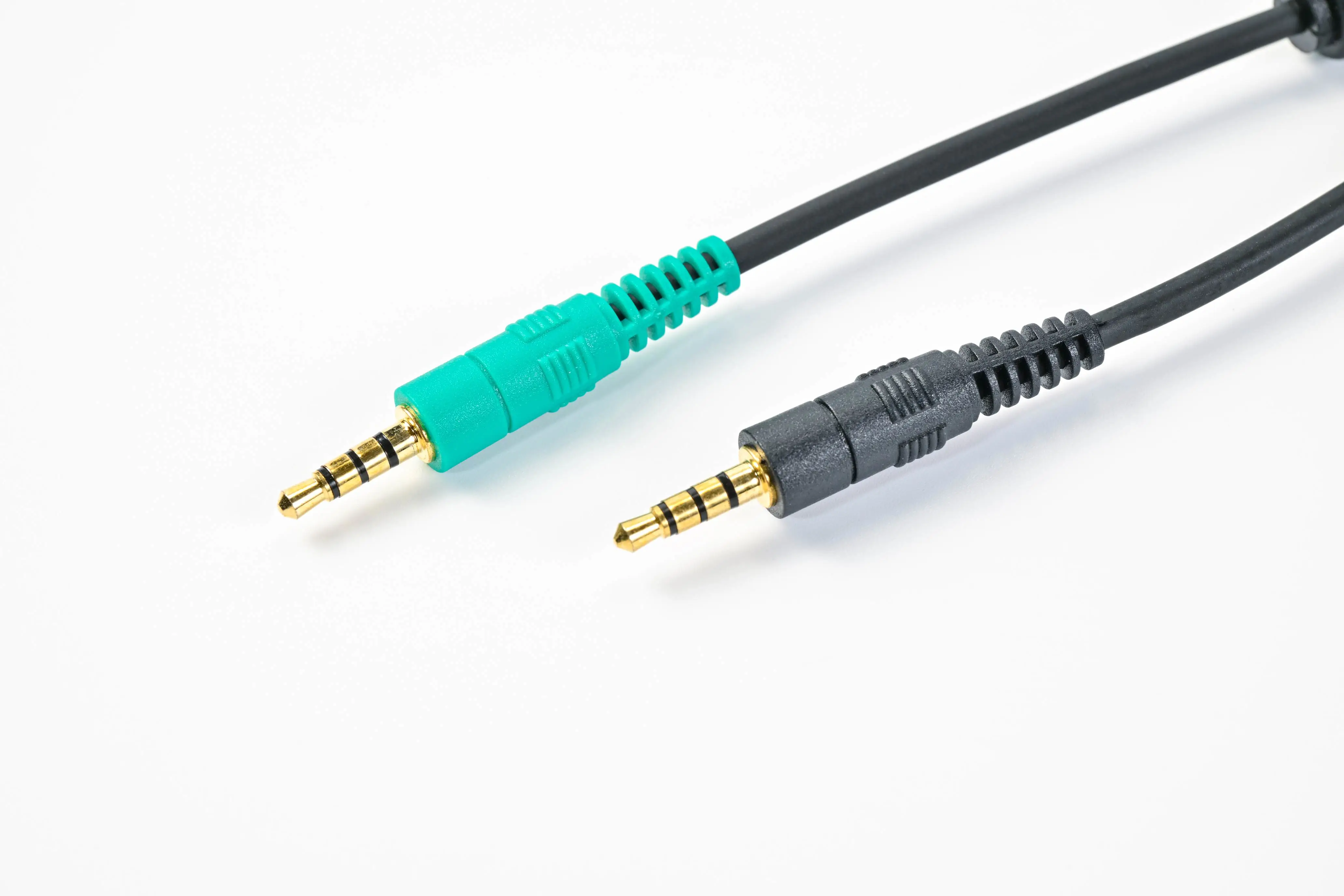

Connector1:TRRS Male Gold Plated, 180 Degree Injection Molding

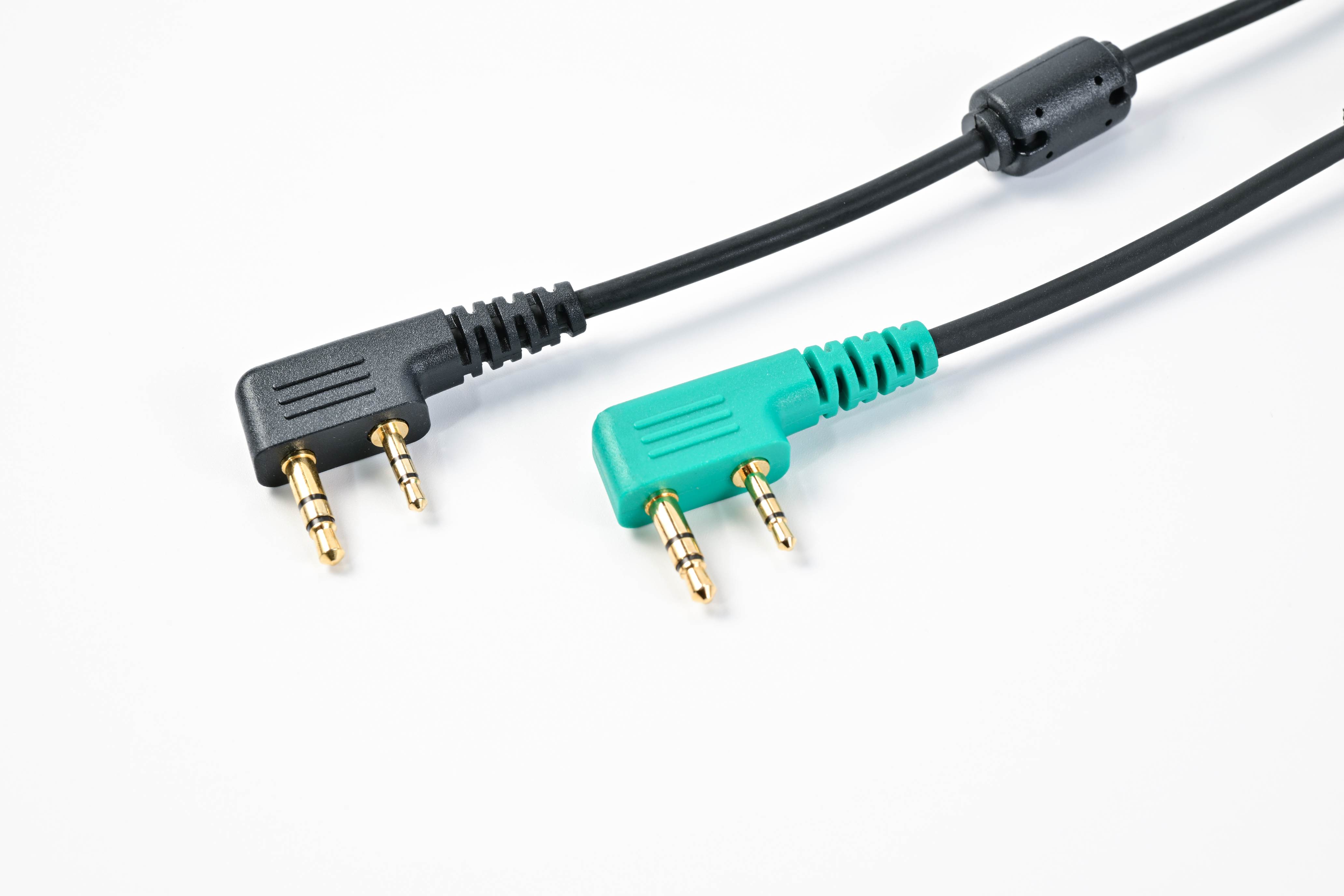

Connector2:K1 (3.5 3-pole + 2.5 3-pole) gold plated 90 degree male elbow
Lengths:200MM
Test requirements (100% test) :No short circuit,open circuit,dislocation,poor insulation,etc.

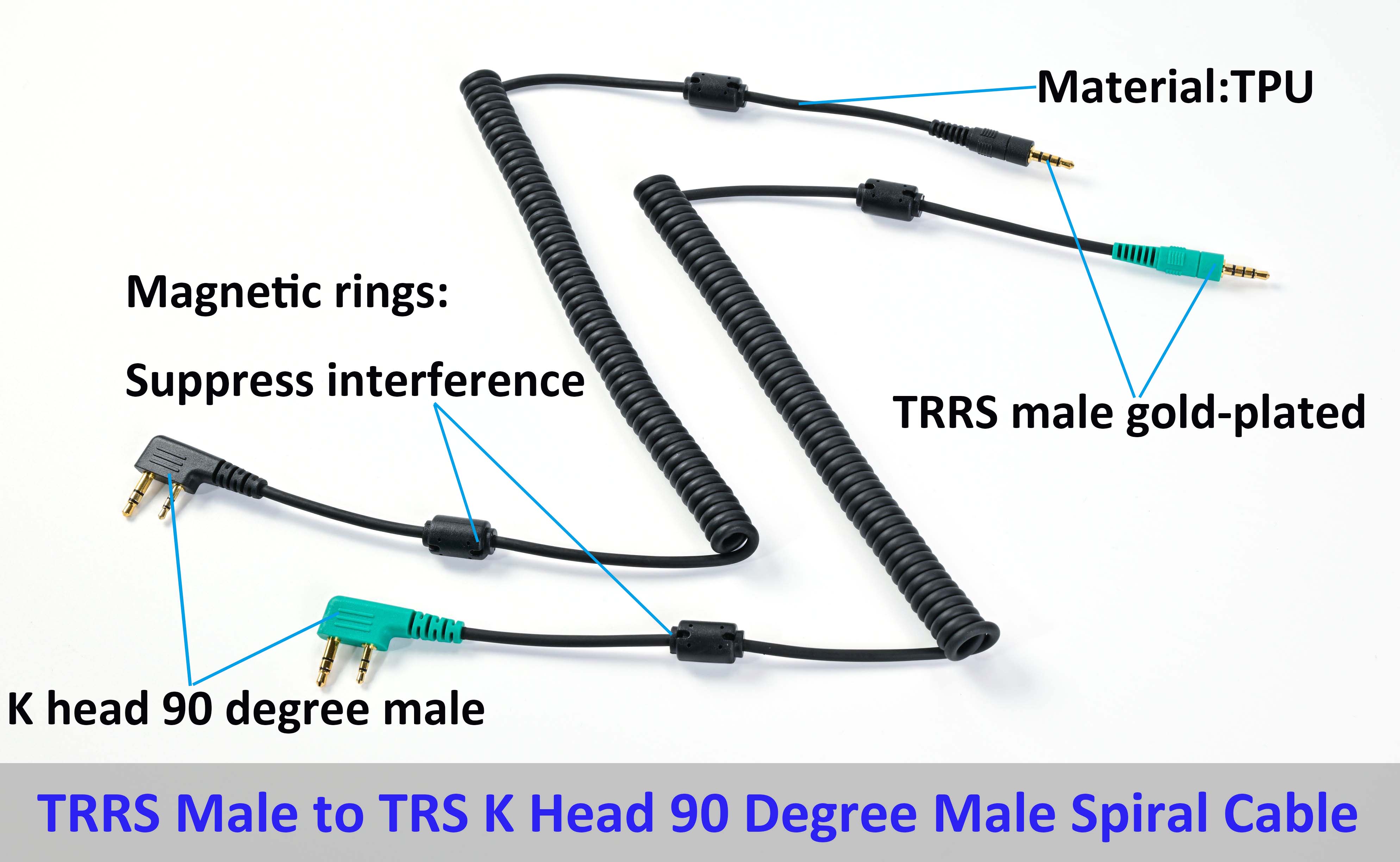

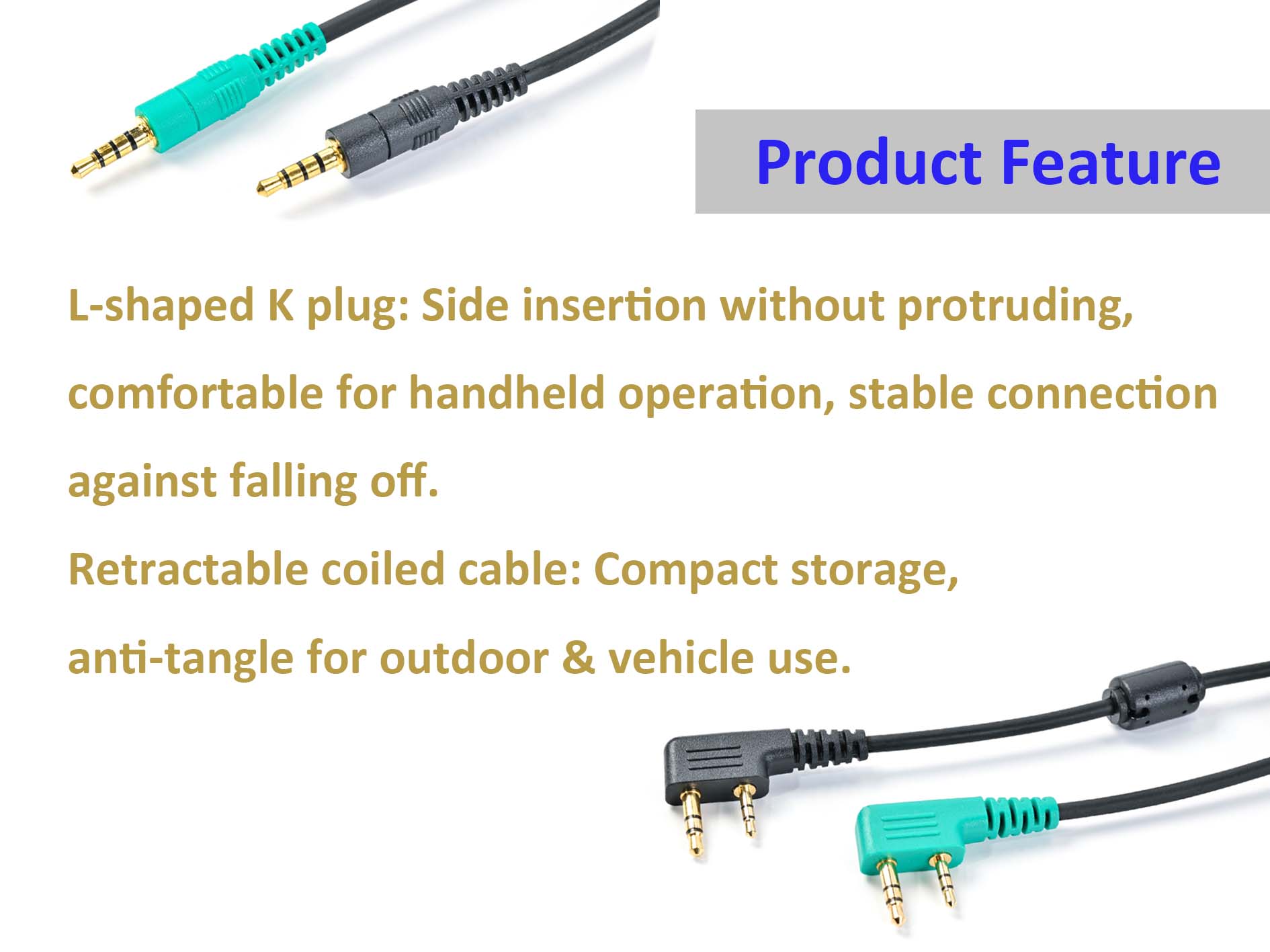

This is a K1 to TRRS spiral cable made of durable TPU material. It features gold-plated TRRS plug and right-angle K-type connector, with built-in magnetic rings to reduce signal interference. The L-shaped K plug fits walkie-talkie side port perfectly for comfortable handheld use and firm connection. The retractable coiled design saves storage space, prevents tangling during outdoor or vehicle use, and buffers pulling force to effectively protect the internal ports of amateur radio handheld transceivers.
The K1 to TRRS spiral cable,one end is TRRS male gold plated,the other end is K1 (3.5 3-pole + 2.5 3-pole) gold plated.The material of spiral cable is TPU.Our K1 to TRRS spiral cable is tested and certified strictly,passed 100% testing.

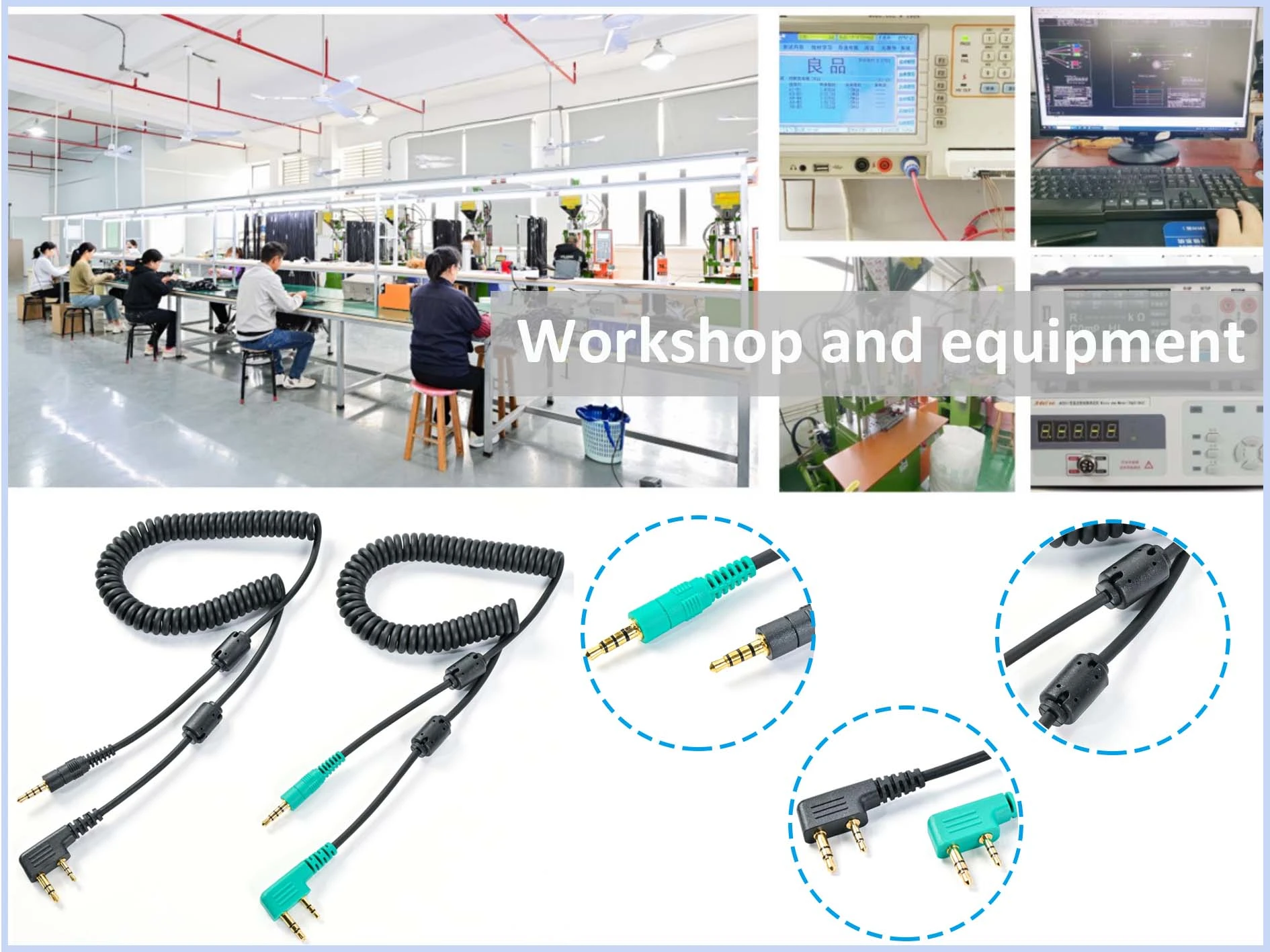

XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!
This K1 to TRRS spiral cable is built for HAM radio users. It connects handheld radios to laptops for multi‑mode digital radio transmission and APRS position reporting. Its retractable coiled design and angled plug allow neat, tangle‑free storage, ideal for hiking, camping and road trips. It also establishes temporary standalone communication links to relay emergency field data when cellular networks fail.
Detailed Display of The Product
| Cable Name: | K1 to TRRS Spiral Cable |
| Cable Specifications: | 28AWG*2C+D+AL+60P Elastic TPU |
| Baking wire size: | coil length 200mm |
| OD： | 3.5mm |
| Coil diameter: | 14mm, each end:180mm |
| Rod diameter: | 7mm |
| Connector1: | 2*TRRS Male Gold Plated, 180 Degree Molding |
| Connector2: | K1 (3.5 3-pole + 2.5 3-pole) gold plated 90 degree male elbow |
| Lengths： | 200mm |
| Test requirements (100% test) : | No short circuit,open circuit,dislocation,poor insulation,etc. |
