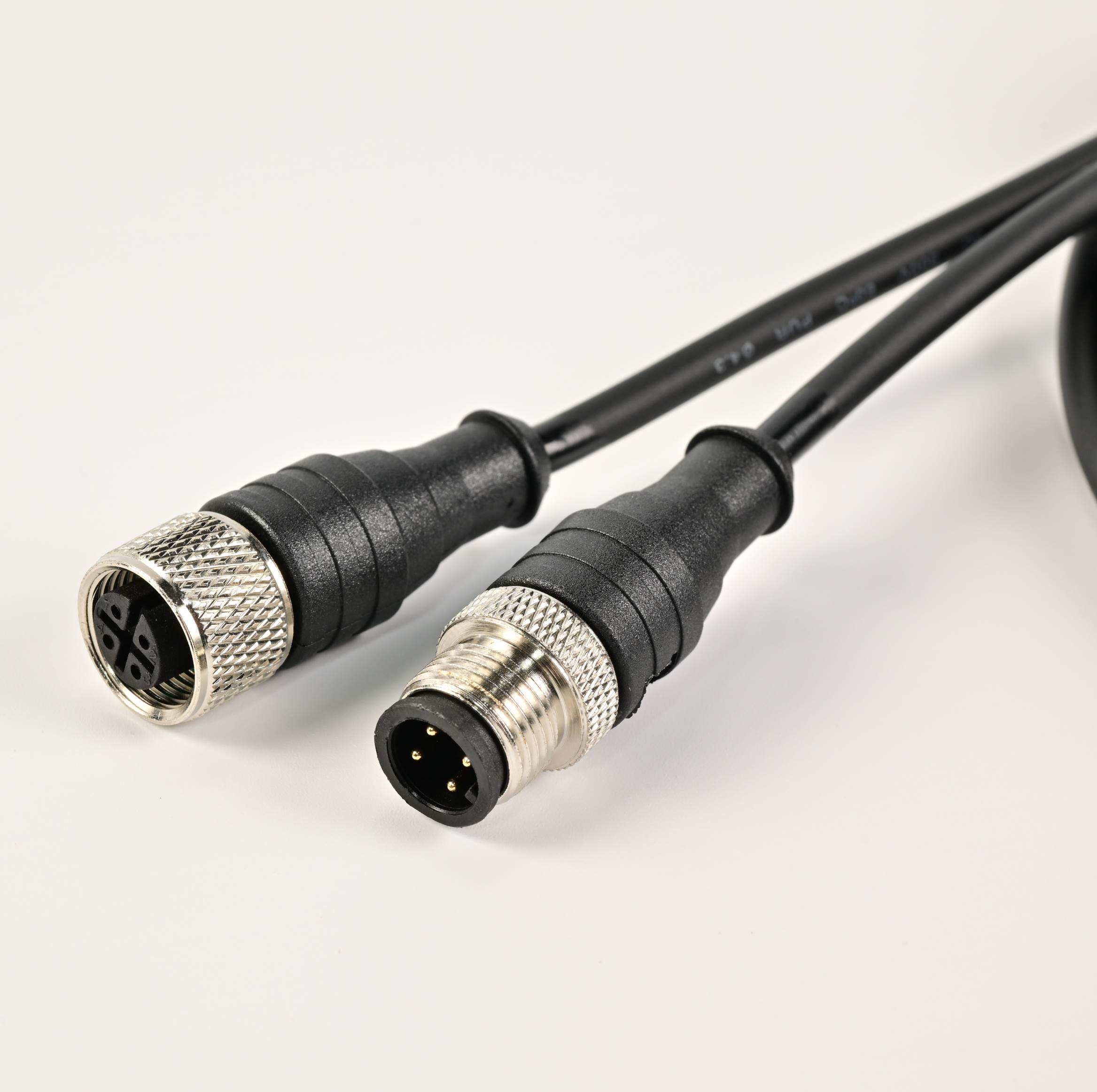

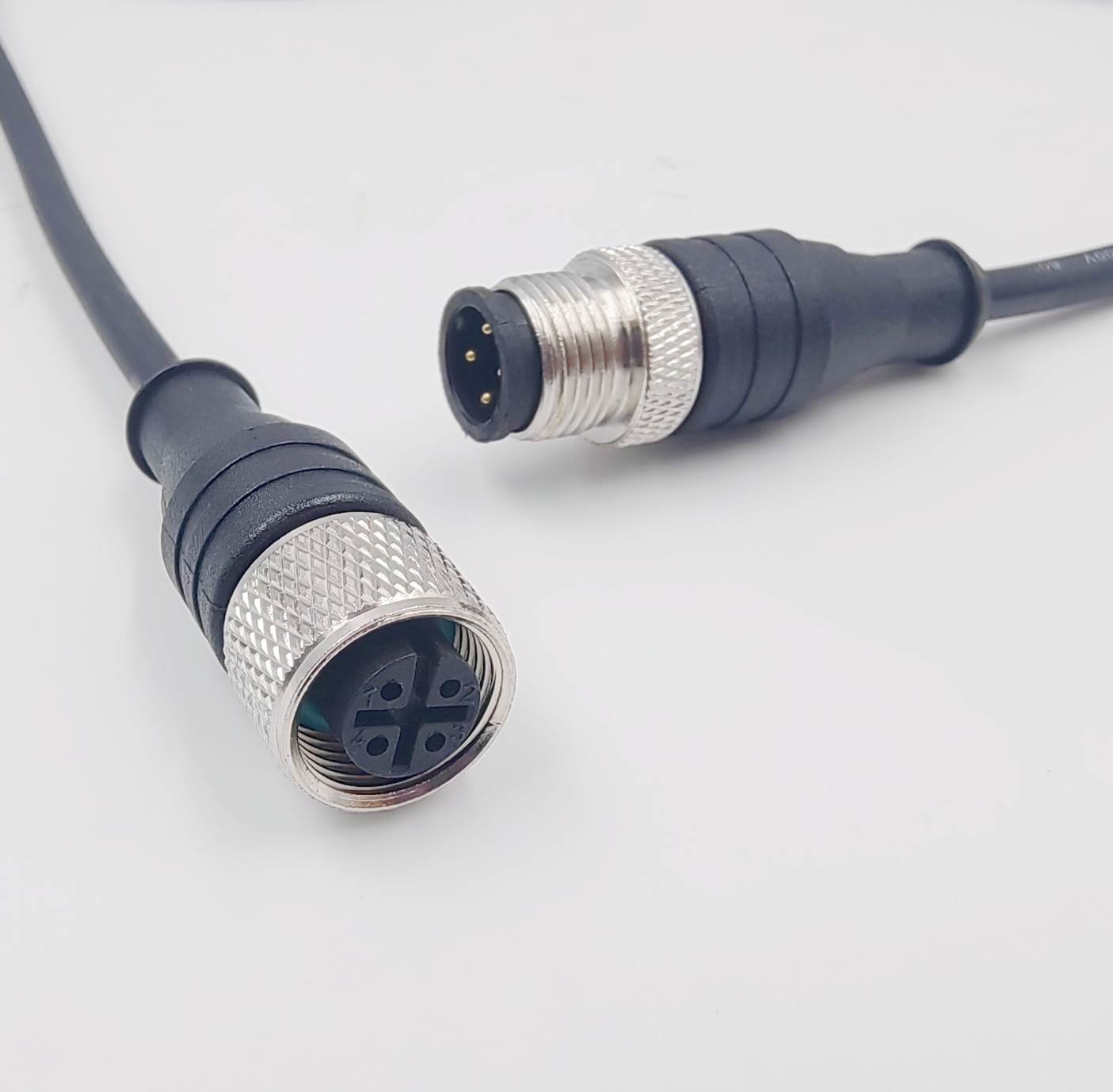

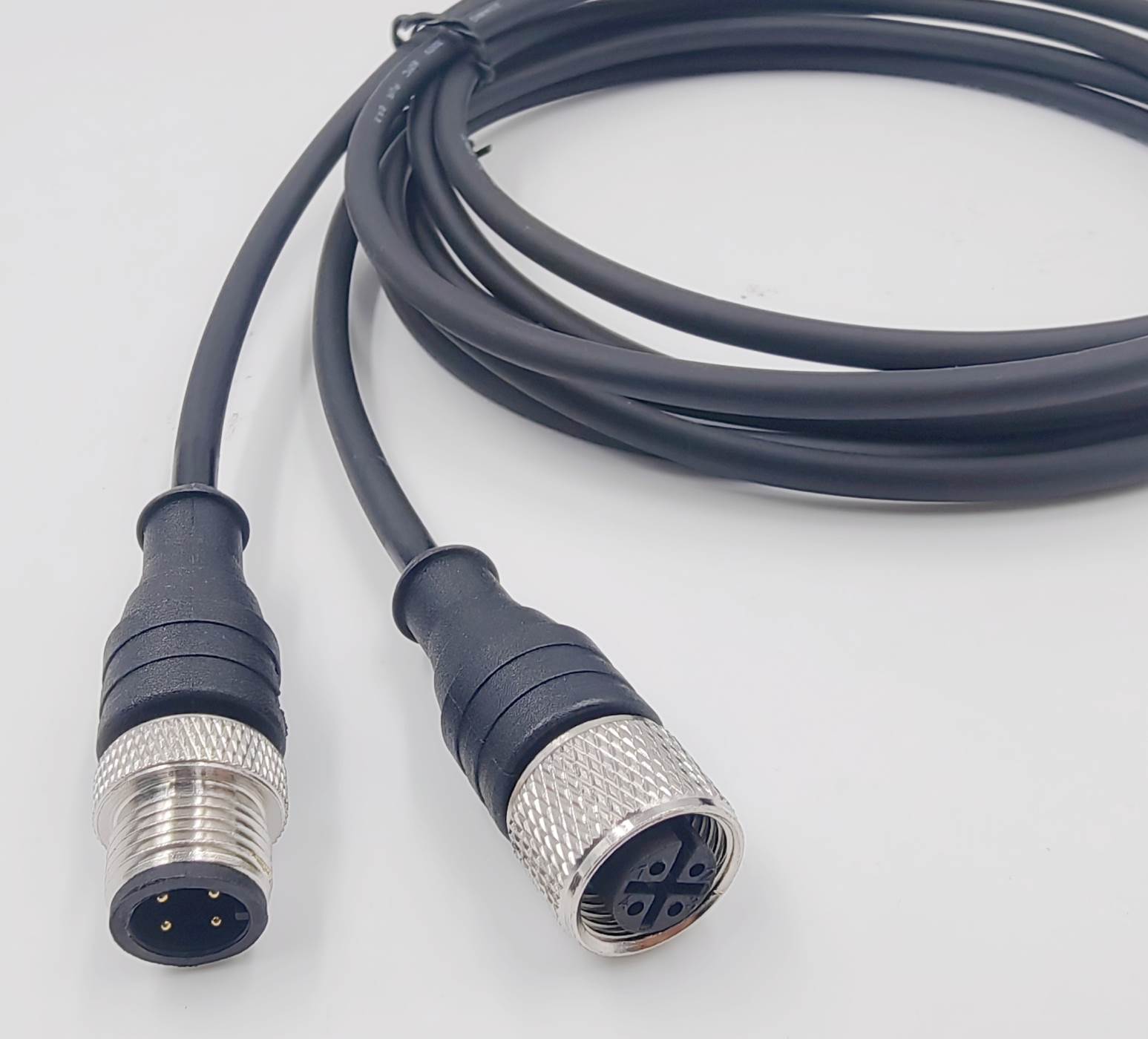

M12 4pin waterproof aviation plug male/female sensor connector cable

Cable Name:	M12 4pin waterproof aviation plug male/female sensor connector
Wire specification:	22AWG 42/0.1BC+XL-PE,ID:1.3MM)*4C+85A PUR black inlet outer coating
OD:	4.6MM
Connector1:	M12 4PIN male aviation head
Connector1:	M12 4PIN female aviation head
Lengths：	1m or custom
Test requirements (100% test) :	No short circuit,open circuit,dislocation,poor insulation,etc.

The M12 4pin waterproof aviation plug male/female sensor connector cable are made of high-quality copper that are strictly tested and certified.The head are M12 4PIN aviation,also the surface finishing of connectors are nickle-plating.The insulation is PVC,the length of M12 4pin waterproof aviation plug male/female sensor connector is 1m or made according to customer's request.Before shipping,all products must be tested totally ensure the functions are in accordance with technical requirments and perfromance.
