Model No: MINI DIN 10 PIN TO JST 8 PIN Audio Video Cable
MINI DIN 10 PIN TO JST 8 PIN Audio Video Cable
Cable name:MINI DIN 10 PIN TO JST 8 PIN Audio Video Cable
Wire specification:(24AWG*1C+AL)+D*2)*7C+AL
OD: 6.0MM
Length: 20CM
Connector 1:MINI DIN 10 PIN
Connector 2:JST 8 PIN
Test requirements (100% test) :
No short circuit,open circuit, dislocation, poor insulation,etc.
Wire specification:(24AWG*1C+AL)+D*2)*7C+AL
OD: 6.0MM
Length: 20CM
Connector 1:MINI DIN 10 PIN
Connector 2:JST 8 PIN
Test requirements (100% test) :
No short circuit,open circuit, dislocation, poor insulation,etc.
Quantity :
One end: MINI DIN 10 PIN TO JST 8 PIN Audio Video Cable

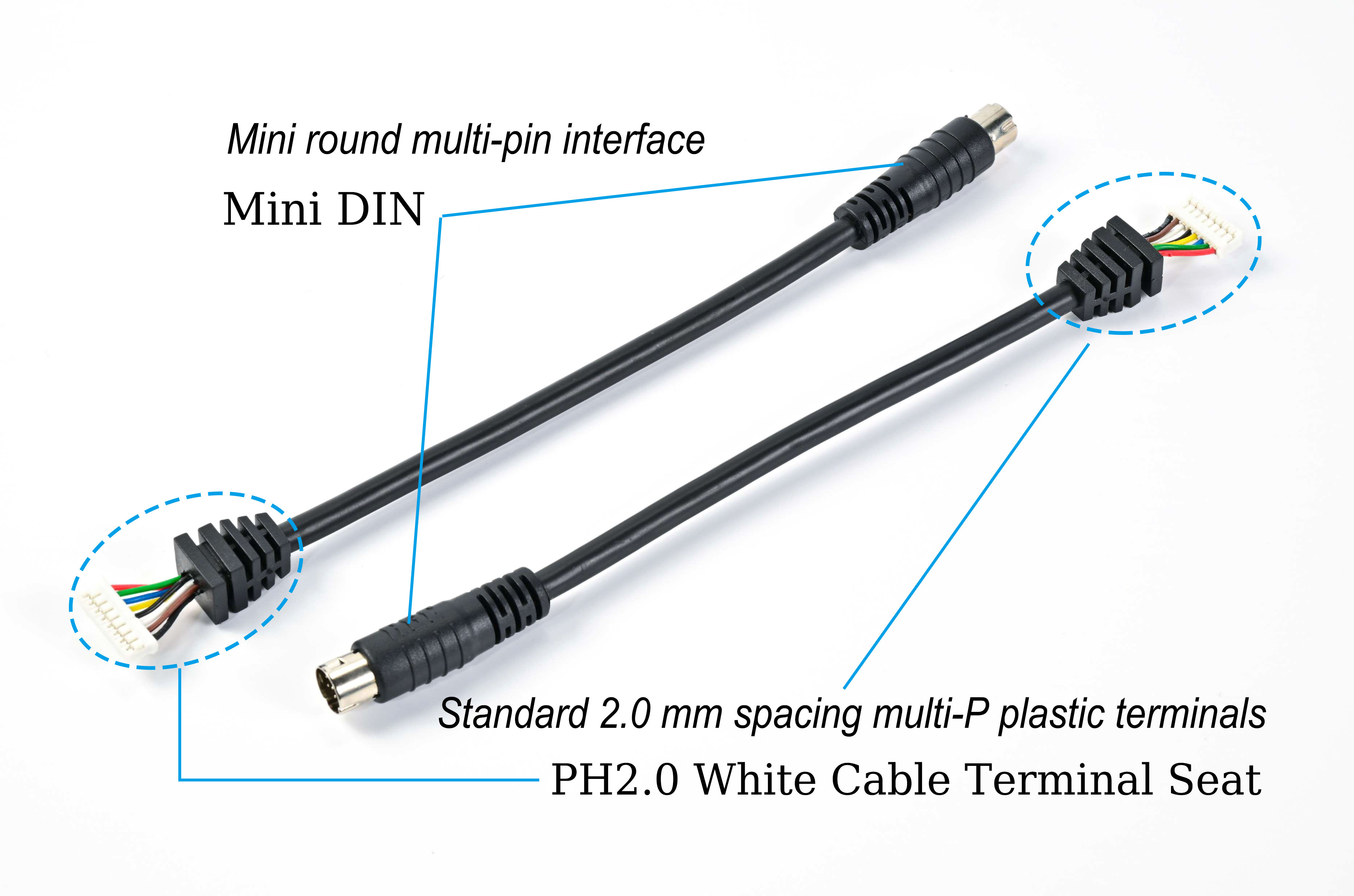

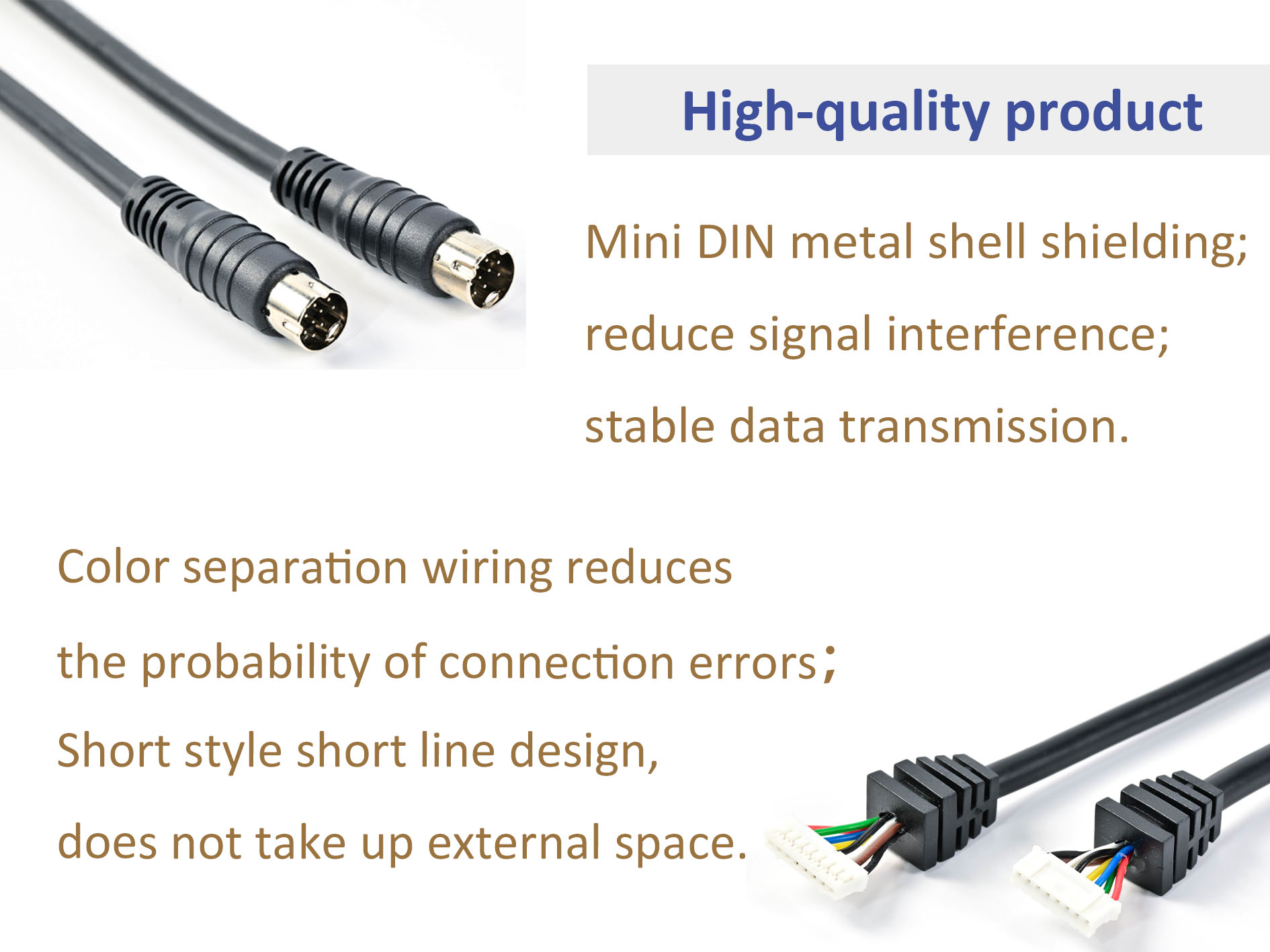

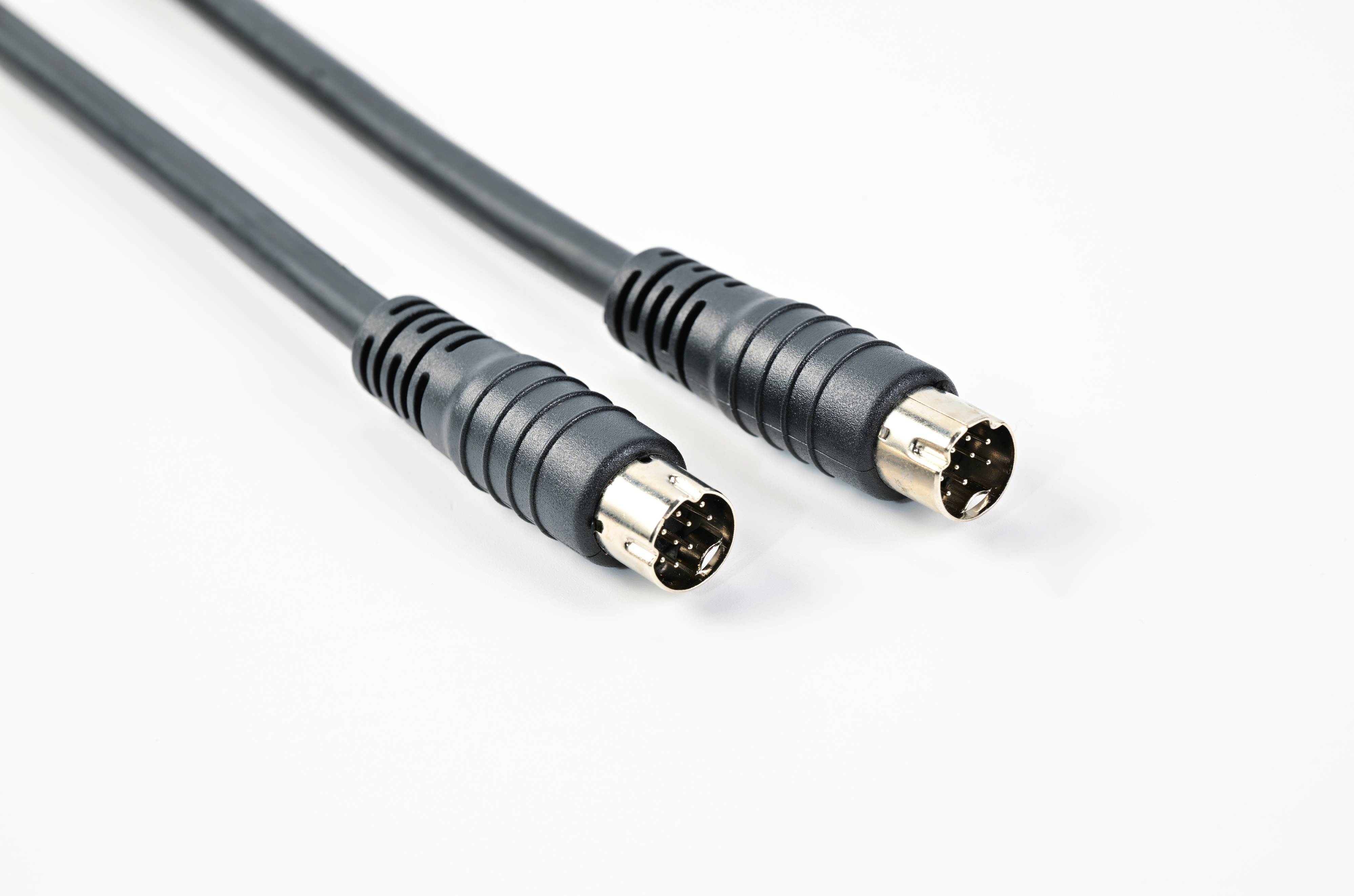

This MINI DIN 10 PIN TO JST 8 PIN audio video cable has metal circular shell,pin matrix arrangement,belongs to mini DIN interface,often used for equipment control signal,audio and video,industrial control data transmission, positioning slot anti-insertion,metal shell has its own shielding effect.
This MINI DIN 10 PIN TO JST 8 PIN audio video cable has metal circular shell,pin matrix arrangement,belongs to mini DIN interface,often used for equipment control signal,audio and video,industrial control data transmission, positioning slot anti-insertion,metal shell has its own shielding effect.

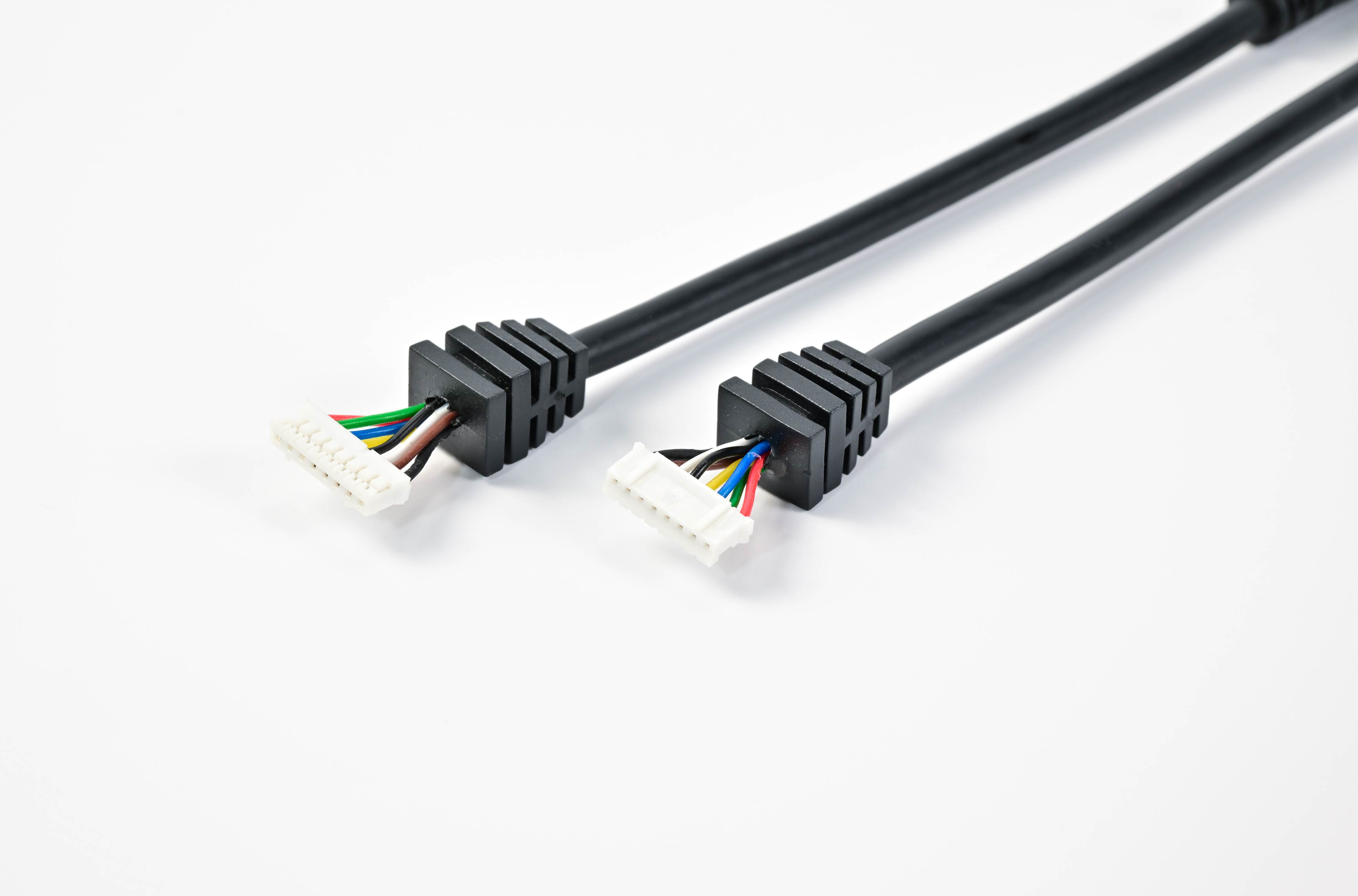

The other end: PH2.0 White Cable Terminal Seat
Standard 2.0 mm spacing multi-P plastic terminals,the inner color wiring is divided into power supply,signal,and ground wires,which can be directly plugged into the motherboard,drive board,and instrument circuit board,which is convenient for internal wiring assembly and after-sales maintenance wiring of the equipment.
The MINI DIN 10 PIN TO JST 8 PIN audio video cable,one end is equipped with two straight 3.5mm four-stage TRRS plugs,the other end is PH2.0 white cable terminal seat.This MINI DIN 10 PIN TO JST 8 PIN audio video cable are tested and certified strictly,no short circuit,open circuit,dislocation,poor insulation,etc.
XUNER cable are professional manufacturer of audio video cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!
This MINI DIN 10 PIN TO JST 8 PIN audio video cable has two connectors.The connector1 is MINI DIN 10 PIN,the connector2 is JST 8 PIN.The MINI DIN 10 PIN TO JST 8 PIN audio video cable widely used in industrial control equipment,medical equipment,keyboard,customized equipment wiring harness etc.
Detailed Display of the Product
| Cable Name: | MINI DIN 10 PIN TO JST 8 PIN Audio Video Cable |
| Wire specification: | (24AWG*1C+AL)+D*2)*7C+AL |
| OD： | 6.0MM |
| Connector1: | MINI DIN 10 PIN |
| Connector2: | JST 8 PIN |
| Lengths: | 20CM |
| Test requirements (100% test) : | No short circuit,open circuit,dislocation,poor insulation,etc. |
