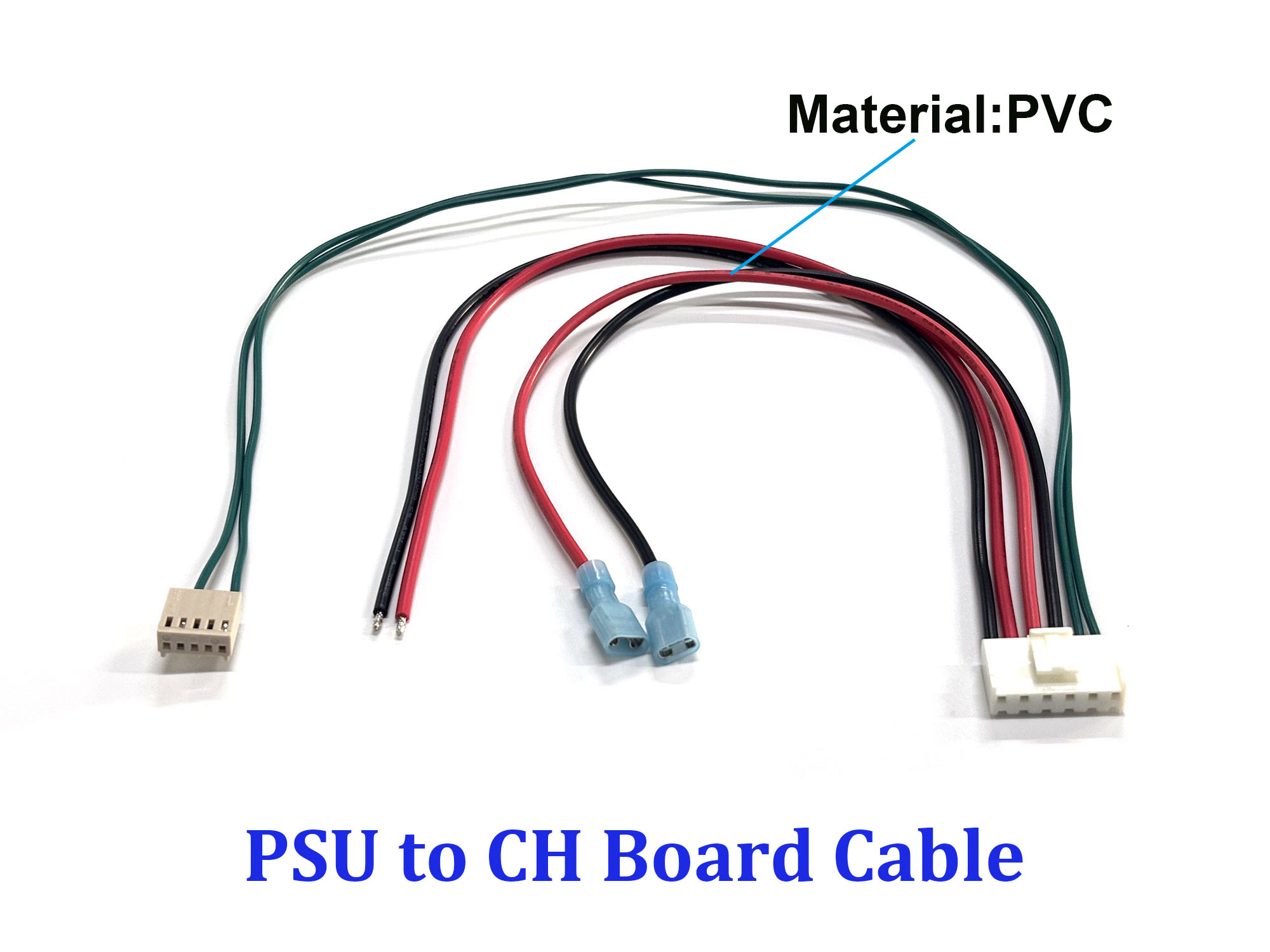

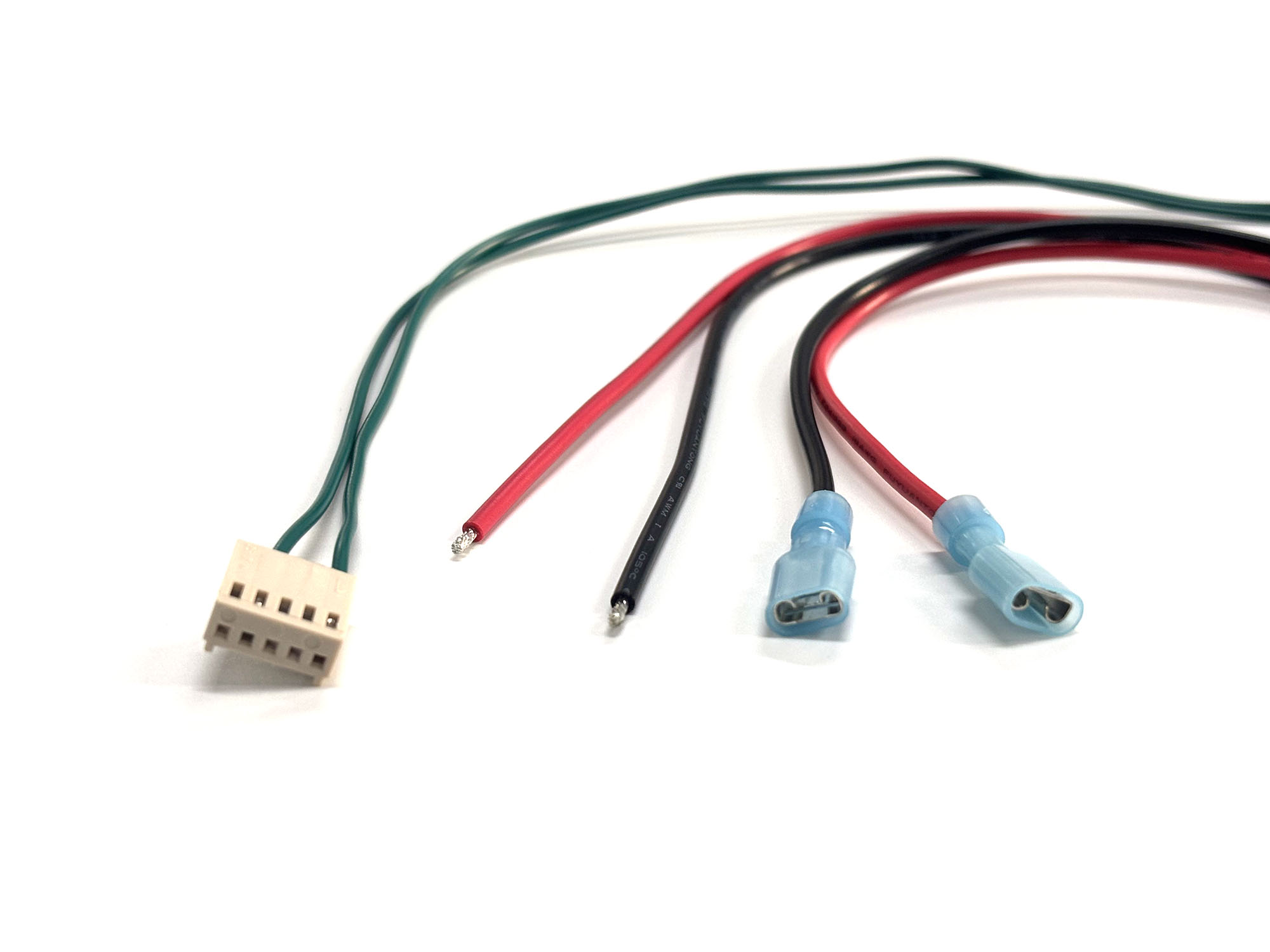

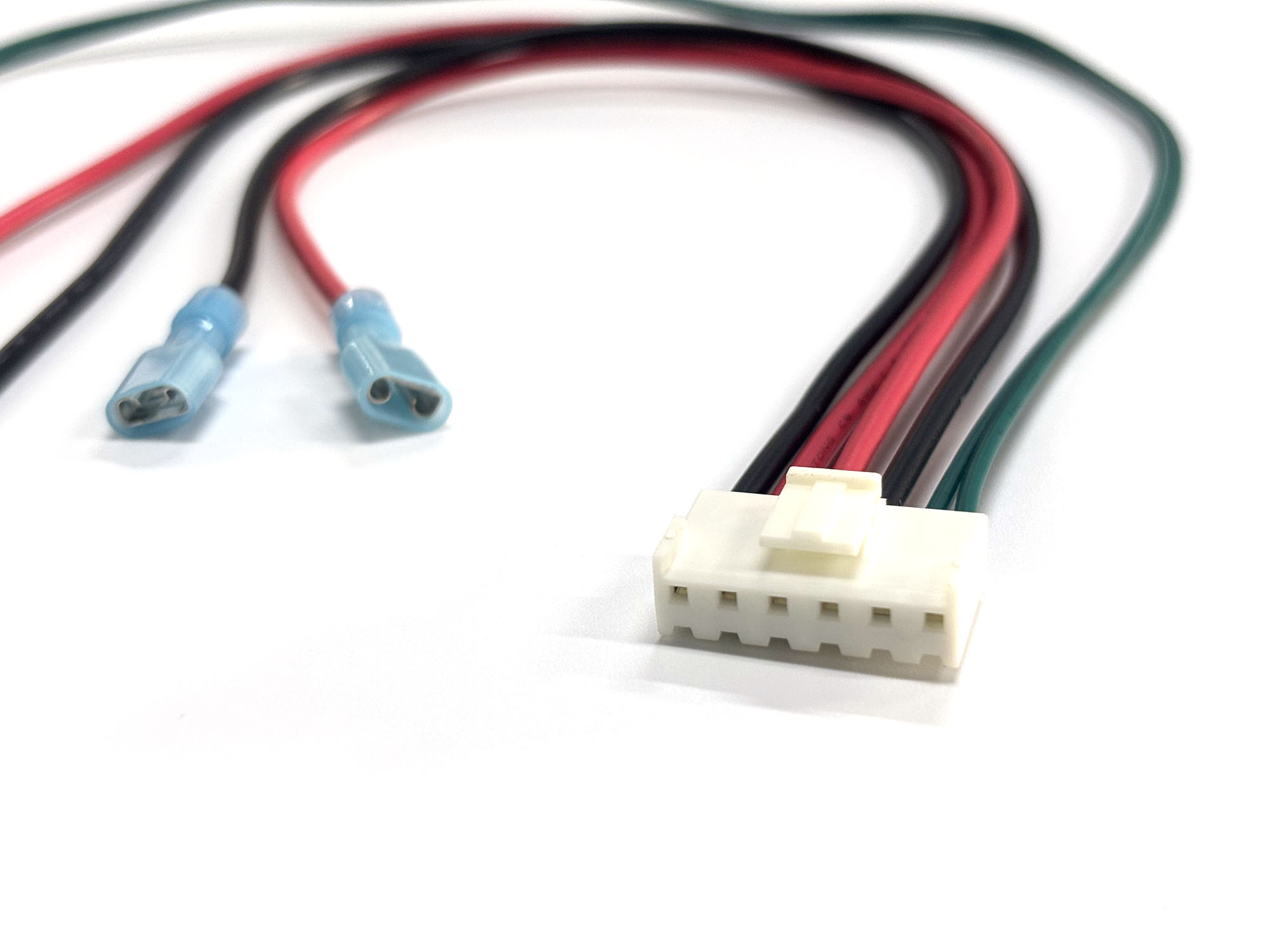

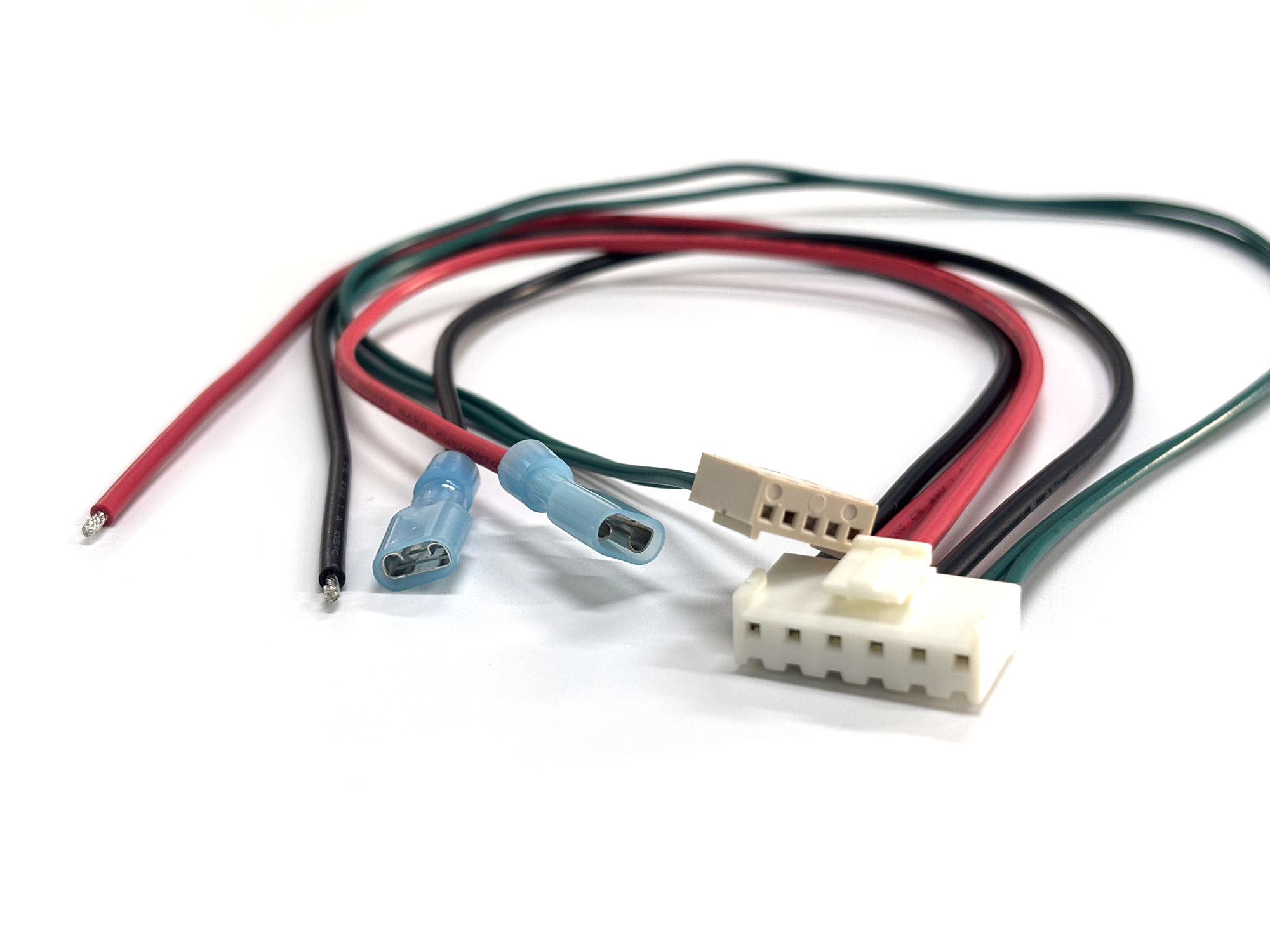

PSU to CH Board Cable
Wire specification:JST VHR-6 1015 18AWG
Length:45CM
Connector1:1* JST WHR-6N plastic housing + 6* SVH-21T-P1.1
Connector2:2*Sullins SWT25X-URTC-SO1-UU-UU+1*SWH25X-NULC-S05-UU-BA
Connector3:2*TE 3-350819-2
Test requirements (100% test):No short circuit,open circuit,dislocation,poor insulation,etc.
The material of PSU to CH board cable is PVC.Our PSU to CH board cable is certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of different cables and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!
This PSU to CH board cable is suitable for chassis‑internal modification and power‑signal breakout on control boards. It supports DIY rewiring projects for small home appliances and driver controllers. The harness can serve as a replacement for original factory harnesses during equipment maintenance. It also works great for prototype debugging, offering multiple terminals so users do not need to conduct manual wire‑splitting for testing.
| Cable name: | PSU to CH Board Cable |
| Wire specification: | JST VHR-6 1015 18AWG |
| Length: | 45CM |
| Connector1: | 1* JST WHR-6N plastic housing + 6* SVH-21T-P1.1 |
| Connector2: | 2*Sullins SWT25X-URTC-SO1-UU-UU+1*SWH25X-NULC-S05-UU-BA |
| Connector3: | 2*TE 3-350819-2 |
| Test requirements (100% test): | No short circuit,open circuit,dislocation,poor insulation,etc. |
