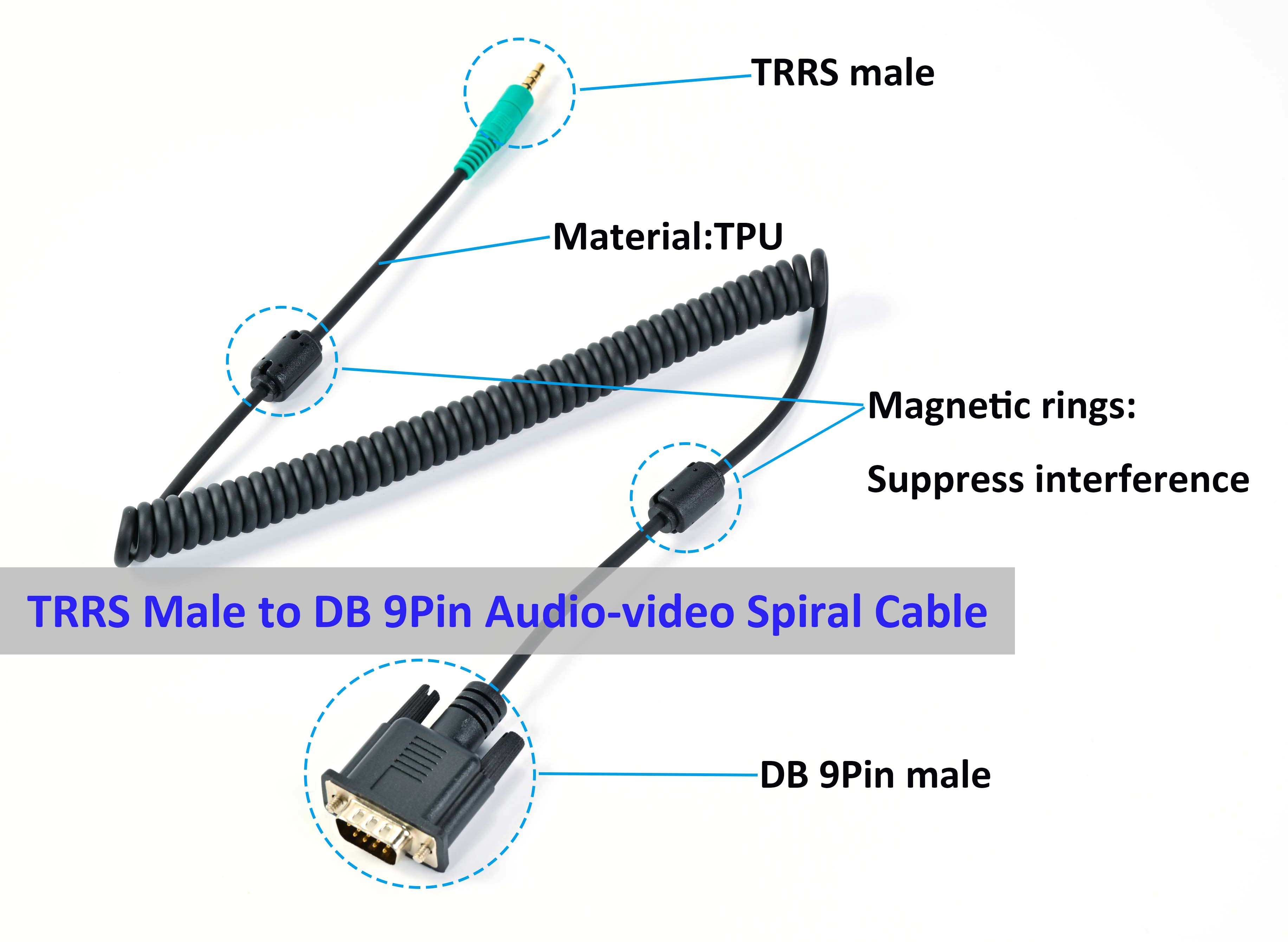

TRRS Male to DB9 PIN Male Spiral Cable

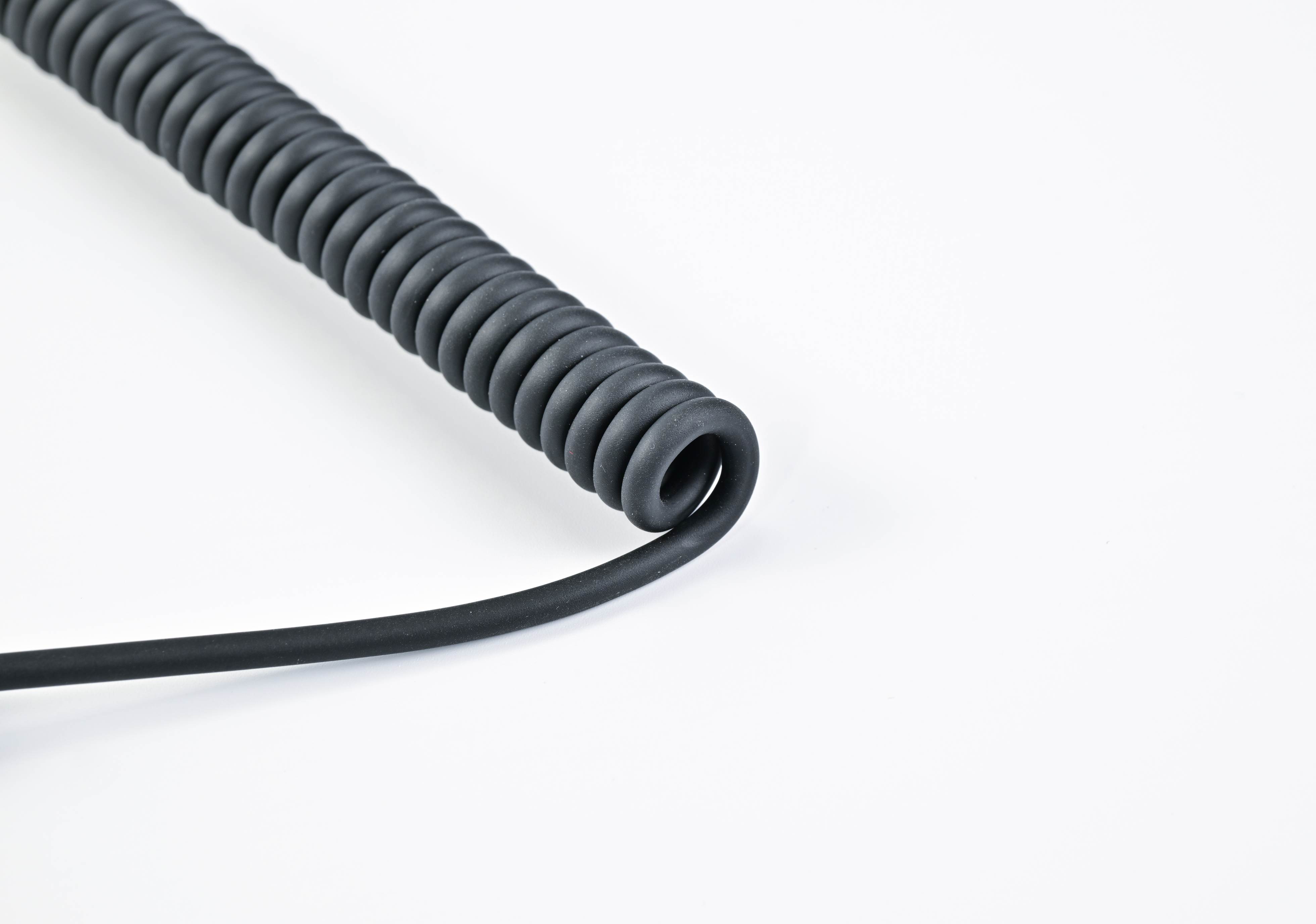

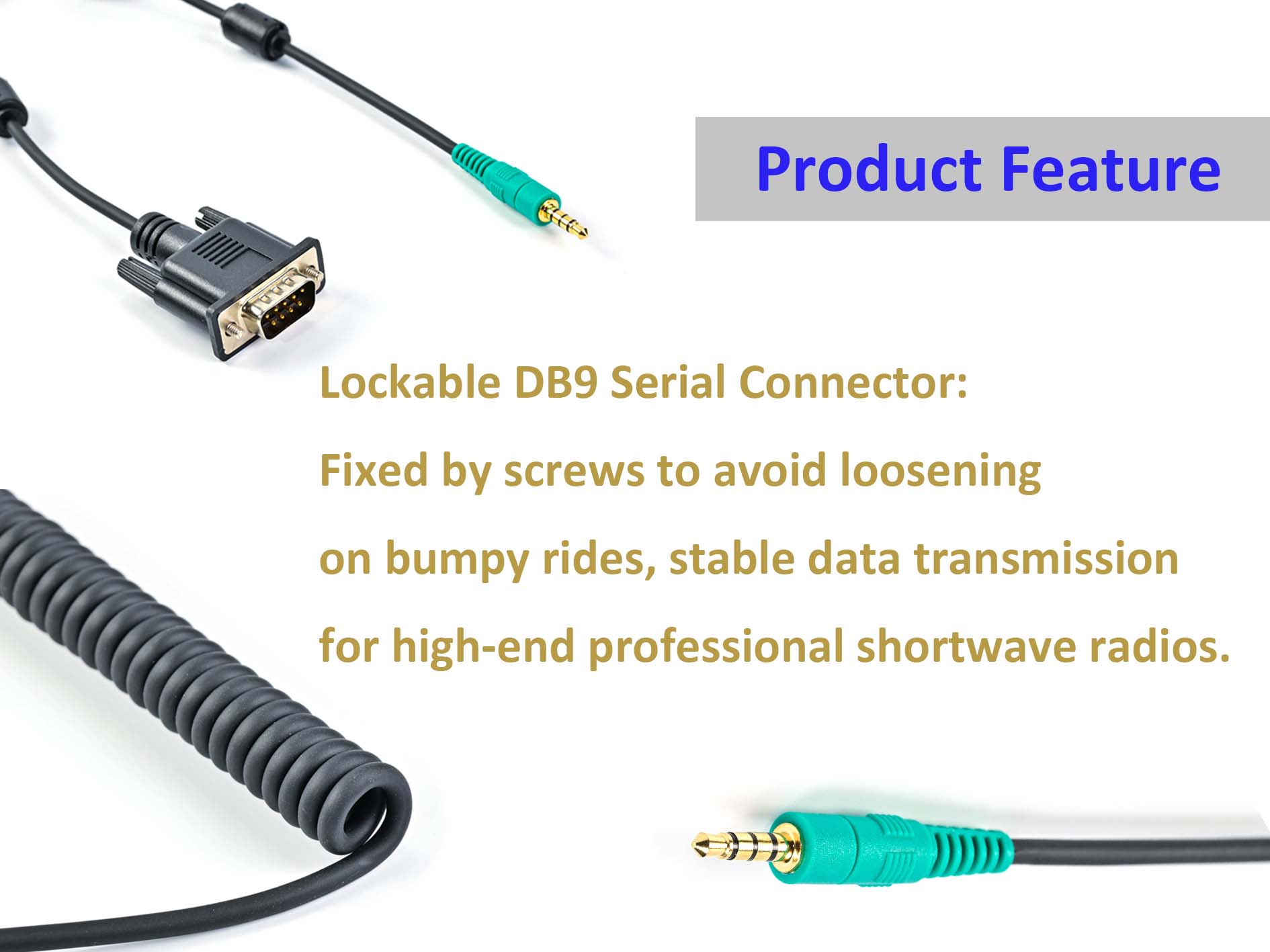

This TRRS male to DB9 PIN male spiral cable is made of durable TPU material and equipped with magnetic rings to effectively suppress signal interference. It adopts a lockable DB9 PIN serial connector secured by screws, which prevents loosening during bumpy driving and ensures steady data transmission for high-end professional shortwave radios. The retractable coiled design of this TRRS male to DB9 PIN male spiral cable achieves neat,tangle-free wiring inside vehicles and buffers tension force to well protect the radio’s internal circuits and interfaces from damage.

The TRRS male to DB9 PIN male spiral cable,one end is TRRS male gold plated,the other end is DB9 PIN male.The material of  spiral cable is TPU.Our TRRS male to DB9 PIN male spiral cable is tested and certified strictly and passed 100% testing.

XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and  OEM,one-stop service,please contact us for customised solutions to meet your requirements!



Our TRRS male to DB9 PIN male spiral cable is for HAM radios.It connects DB9 shortwave radios to computers for FT8 long-distance communication, image transfer, positioning and radio emails.The anti-vibration lock plug and retractable cord of this TRRS male to DB9 PIN male spiral cable fit vehicle wiring for off-road and fleet use, and create independent shortwave links to send emergency data when public networks fail.

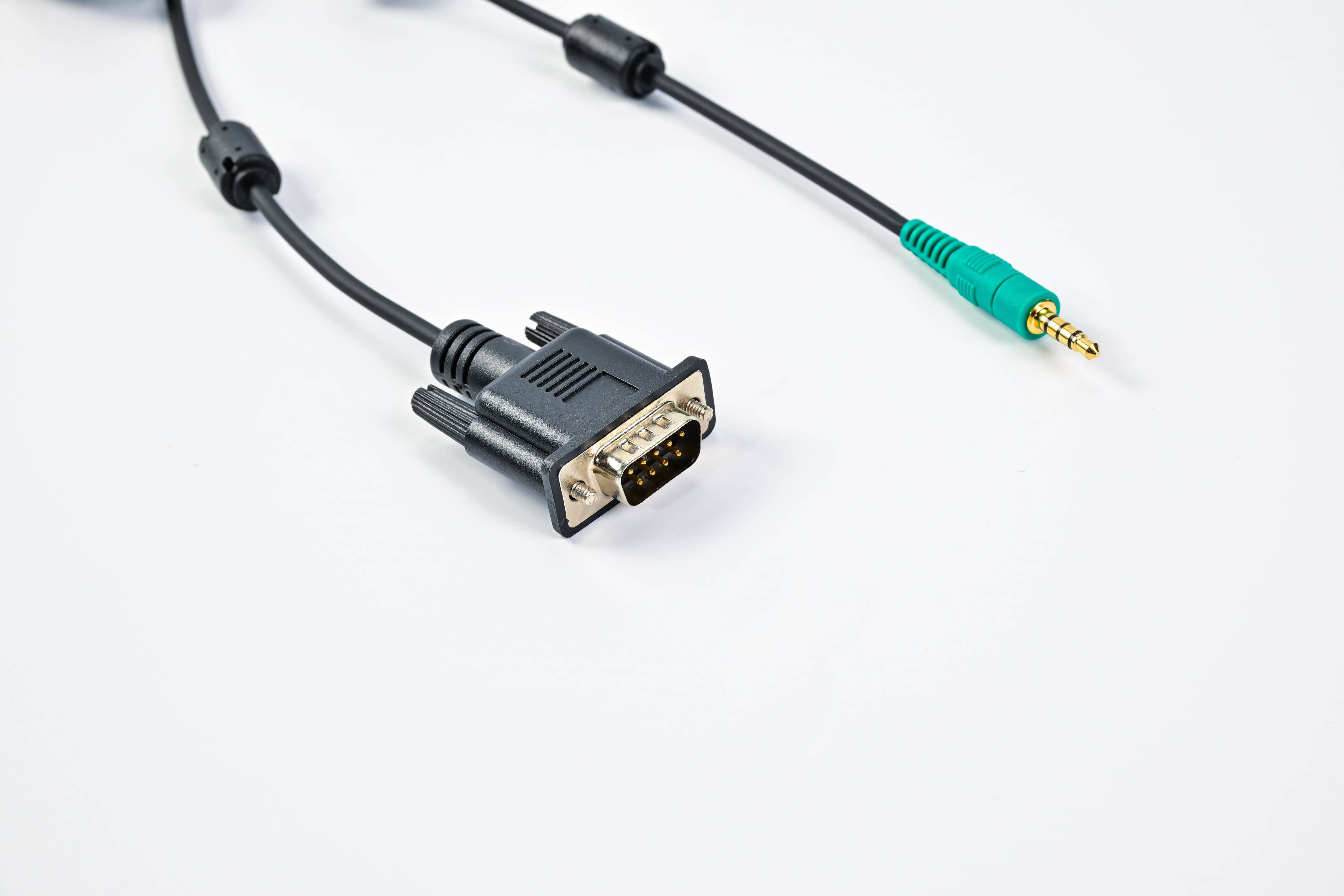

Detailed Display of The Product

Cable Name:	TRRS Male to DB9 PIN Male Spiral Cable
Cable Specifications:	28AWG*2C+D+AL elastic TPU
Baking wire size:	Coil length 200mm
OD：	3.5mm
Coil diameter:	14mm,each end stay:180mm
Rod diameter:	7mm
Magnetic ring:	Injection molded magnetic ring at both ends

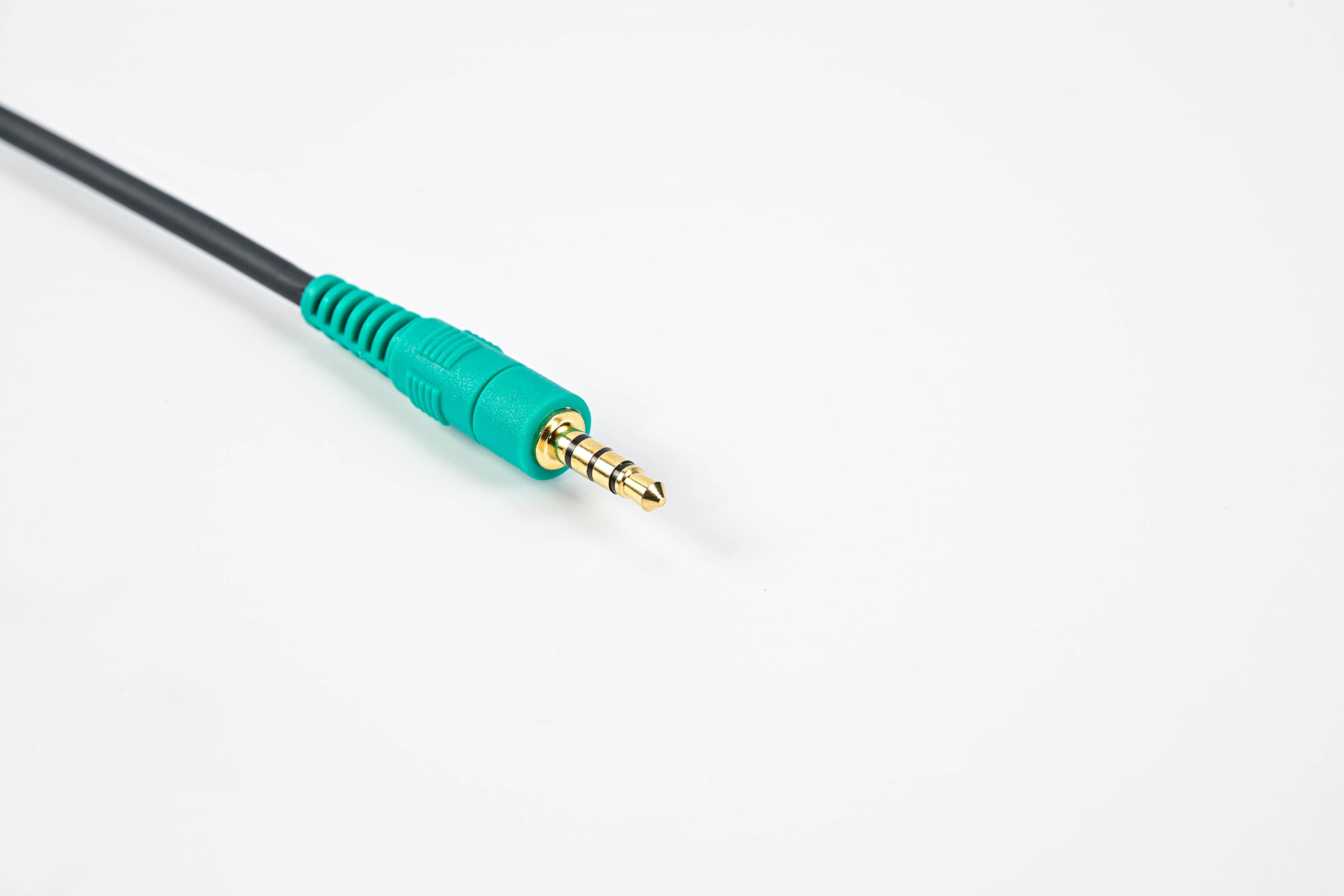

Connector1:	TRRS Male Gold Plated,180 Degree Green Injection Molding
Connector2:	DB9 PIN Male Injection Molded Black
Test requirements (100% test):	No short circuit,open circuit,dislocation,poor insulation,etc.
