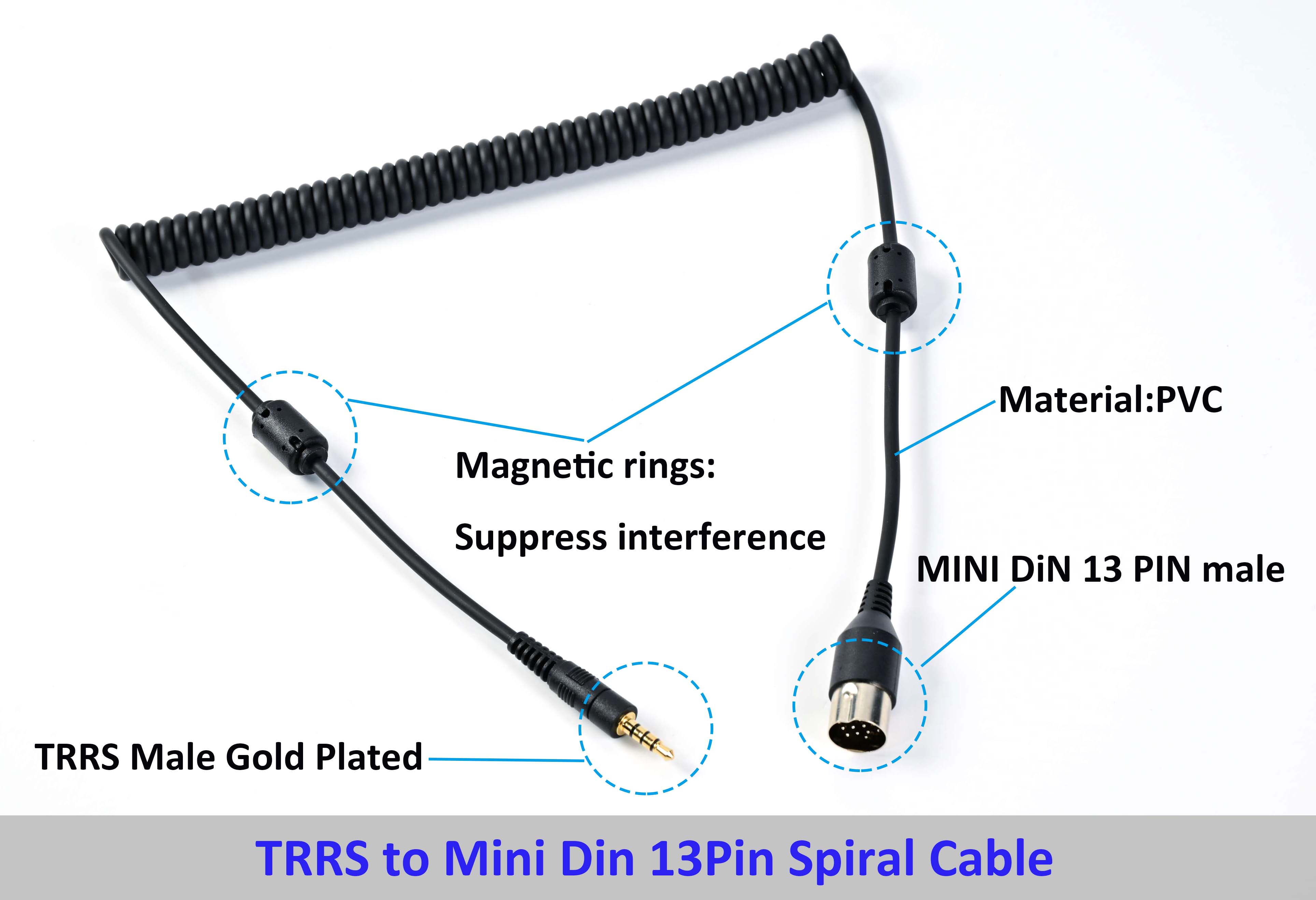

TRRS Male to MINI DIN 13PIN Male Spiral Cable
Cable Specifications:28AWG*3C+D+AL+60P Elastic TPU
OD:3.5mm,Injection molded magnetic ring at both ends
Baking wire size: coil length 200mm
Coil diameter:14mm,each end:180mm
Rod diameter:7mm

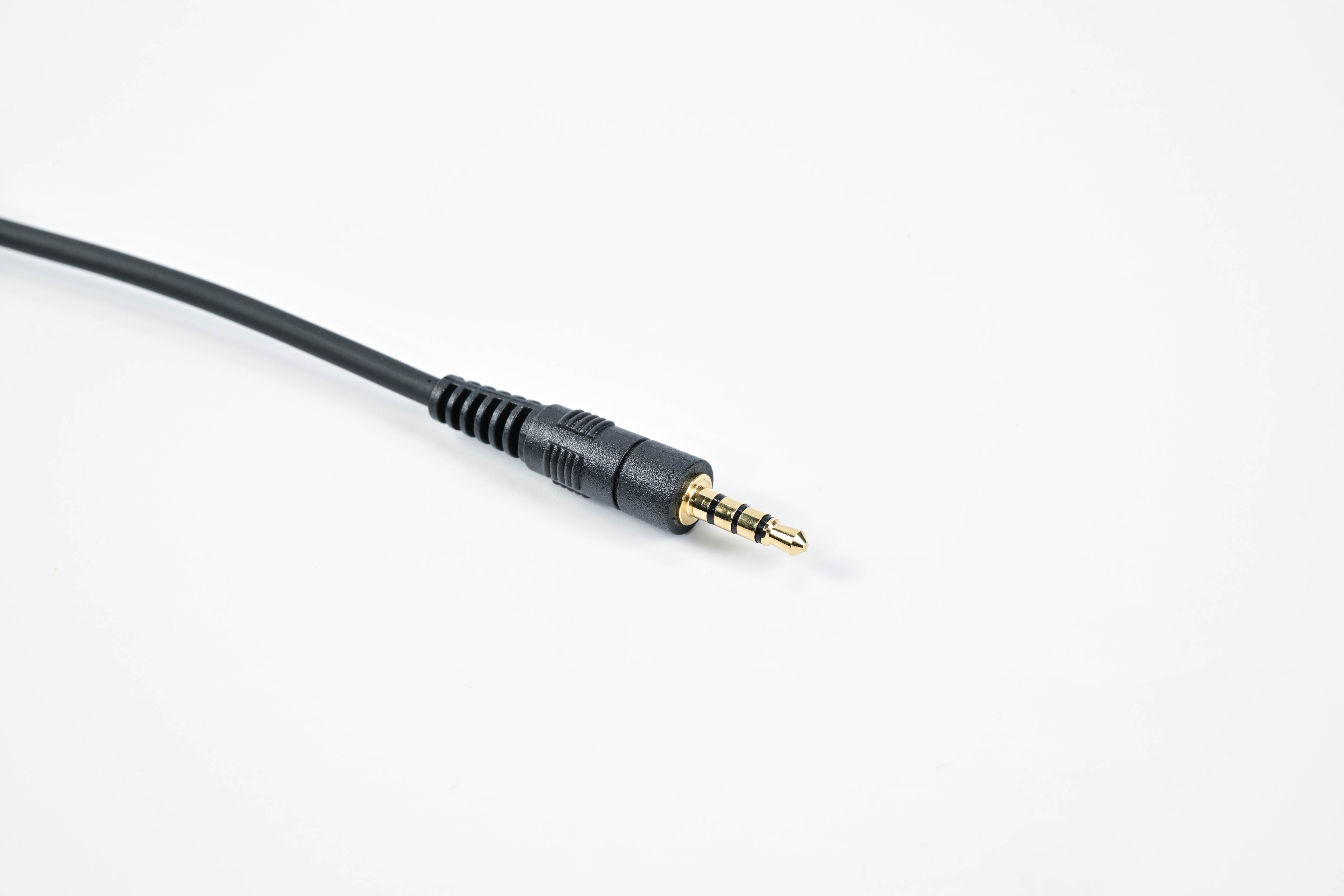

Connector1:TRRS Male Gold Plated,180 Degree Injection Molding

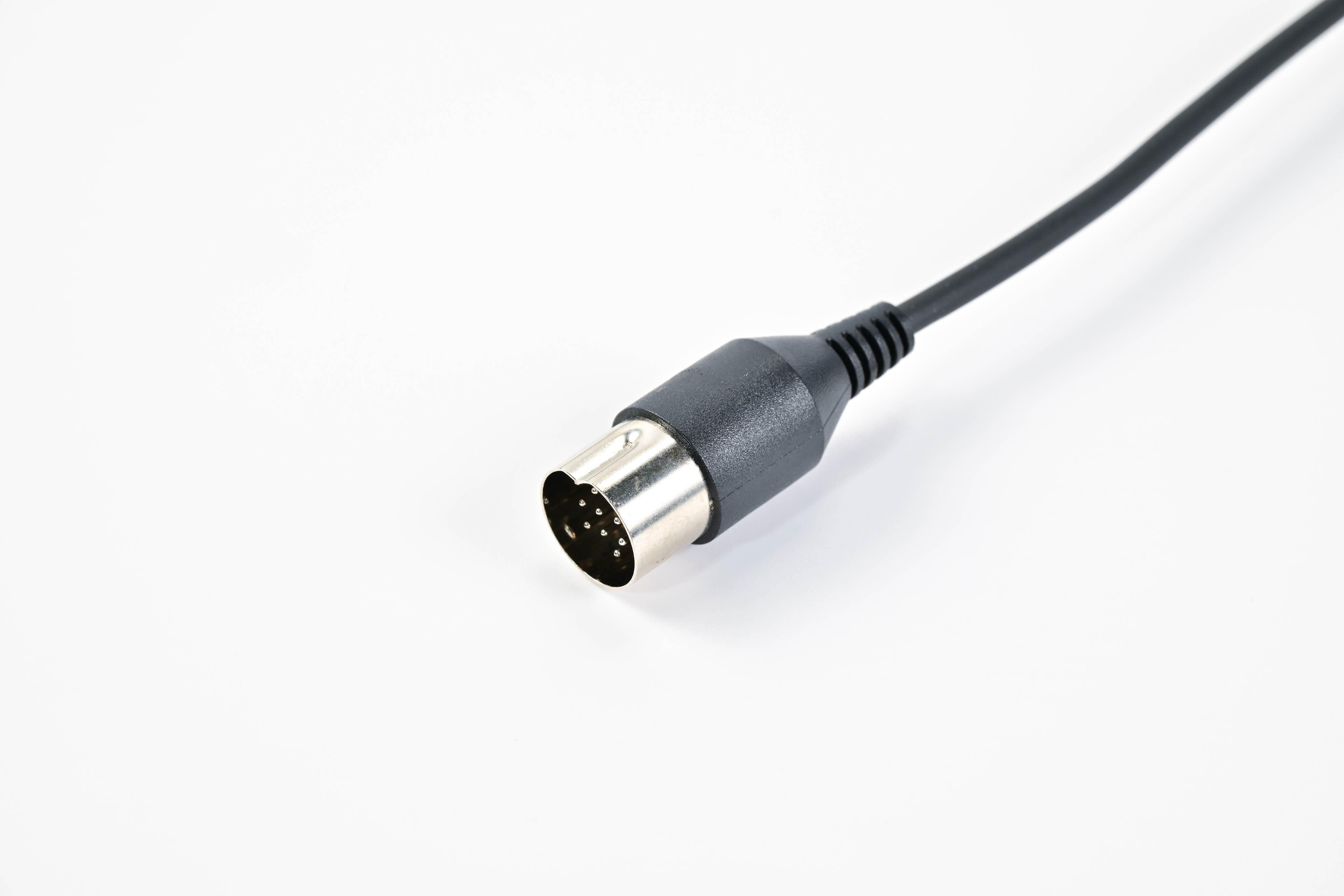

Connector2:MINI DIN 13 PIN male black injection molding
Lengths:200MM
Test requirements (100% test) :No short circuit,open circuit,dislocation,poor insulation,etc.

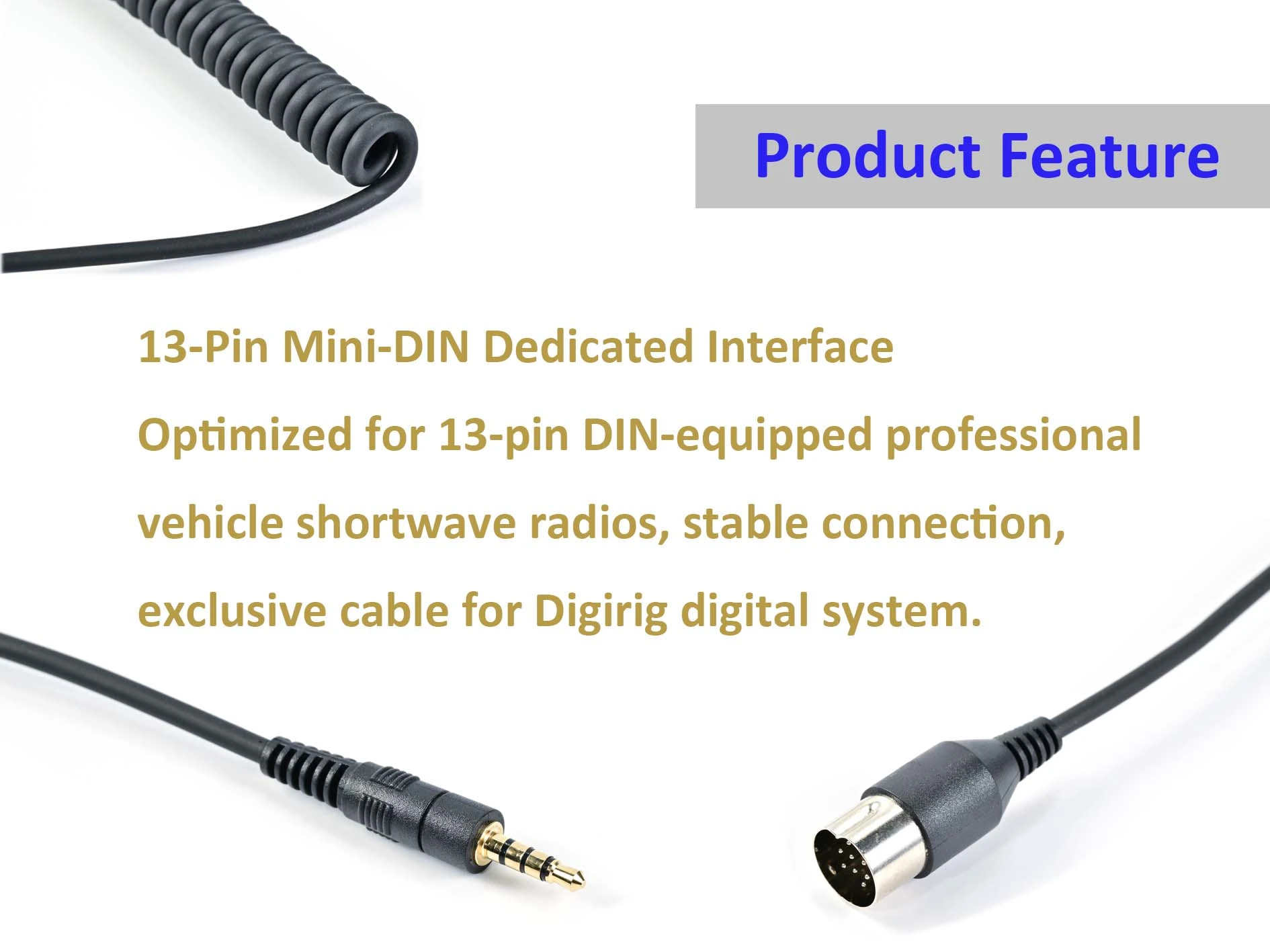

This TRRS male to MINI DIN 13PIN male spiral cable is made of durable PVC material and fitted with magnetic rings to eliminate signal interference. It features a dedicated Mini DIN 13Pin male plug that offers stable connection for professional vehicle-mounted shortwave radios,serving as an exclusive accessory for the Digirig digital radio system.The retractable spring cord of this TRRS male to MINI DIN 13PIN male spiral cable delivers neat, tangle-free wiring inside the vehicle and buffers pulling force during driving to safeguard the radio’s interface and internal components.
The TRRS male to MINI DIN 13PIN male spiral cable,one end is TRRS male gold plated,the other end is MINI DIN 13 PIN male.The material of spiral cable is PVC.Our TRRS male to MINI DIN 13PIN male spiral cable is tested and certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

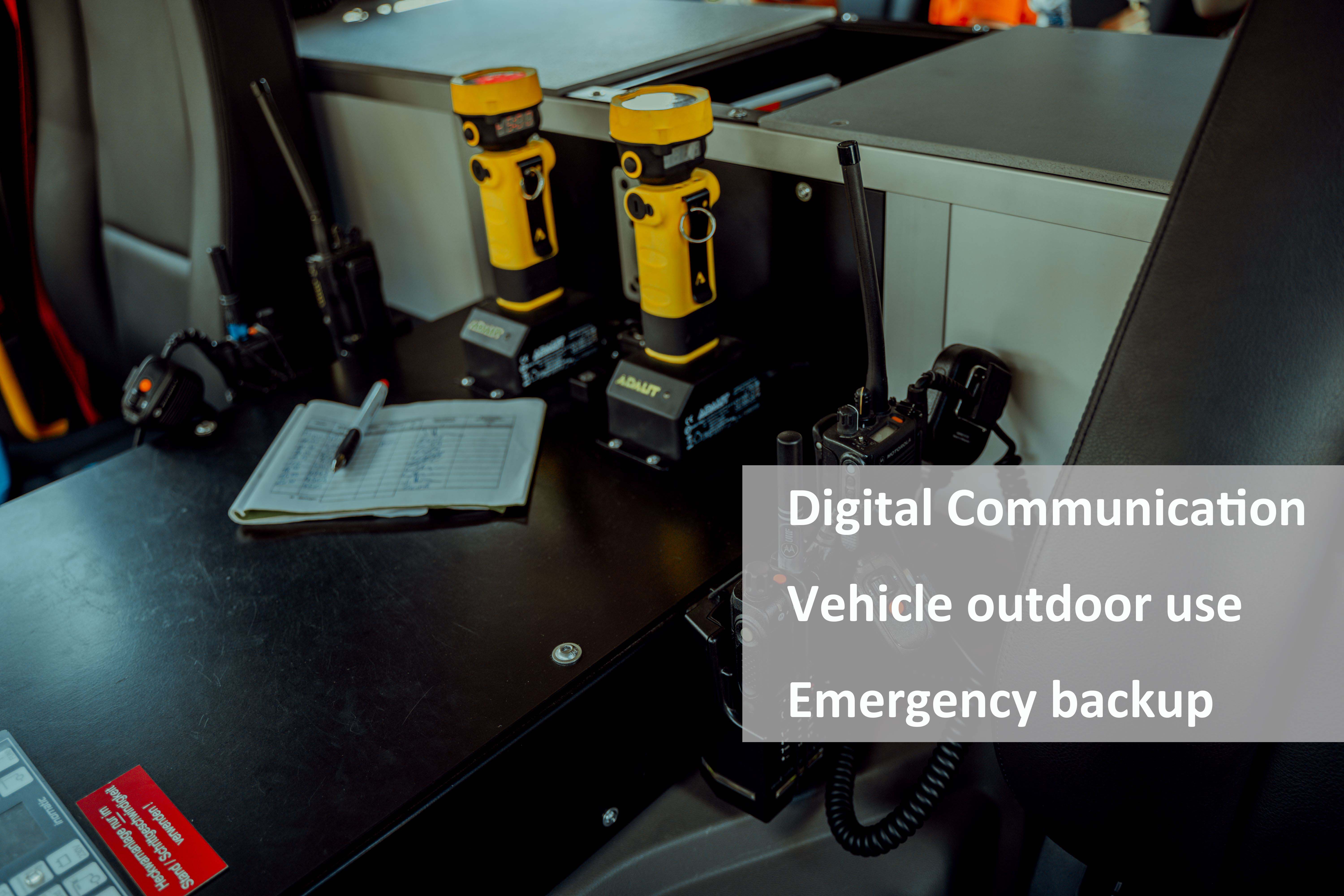

Our TRRS male to MINI DIN 13PIN male spiral cable has three core application scenarios for amateur radio operators.It links vehicle-mounted shortwave radios to computers for long-range digital radio data transmission.The TRRS male to MINI DIN 13PIN male spiral cable keeps interior wiring neat and secured, ideal for off-roading and long-distance road trips. It can also set up an independent communication system to send rescue messages when public networks fail during disasters.
Detailed Display of The Product
| Cable Name: | TRRS Male to MINI DIN 13PIN Male Spiral Cable |
| Cable Specifications: | 28AWG*3C+D+AL+60P Elastic TPU |
| Baking wire size: | Coil length 200mm |
| OD： | 3.5mm |
| Coil diameter: | 14mm, each end:180mm |
| Rod diameter: | 7mm |
| Magnetic ring: | Injection molded magnetic ring at both ends |
| Connector1: | TRRS Male Gold Plated, 180 Degree Injection Molding |
| Connector2: | MINI DIN 13 PIN male black injection molding |
| Lengths： | 200mm |
| Test requirements (100% test) : | No short circuit,open circuit,dislocation,poor insulation,etc. |
