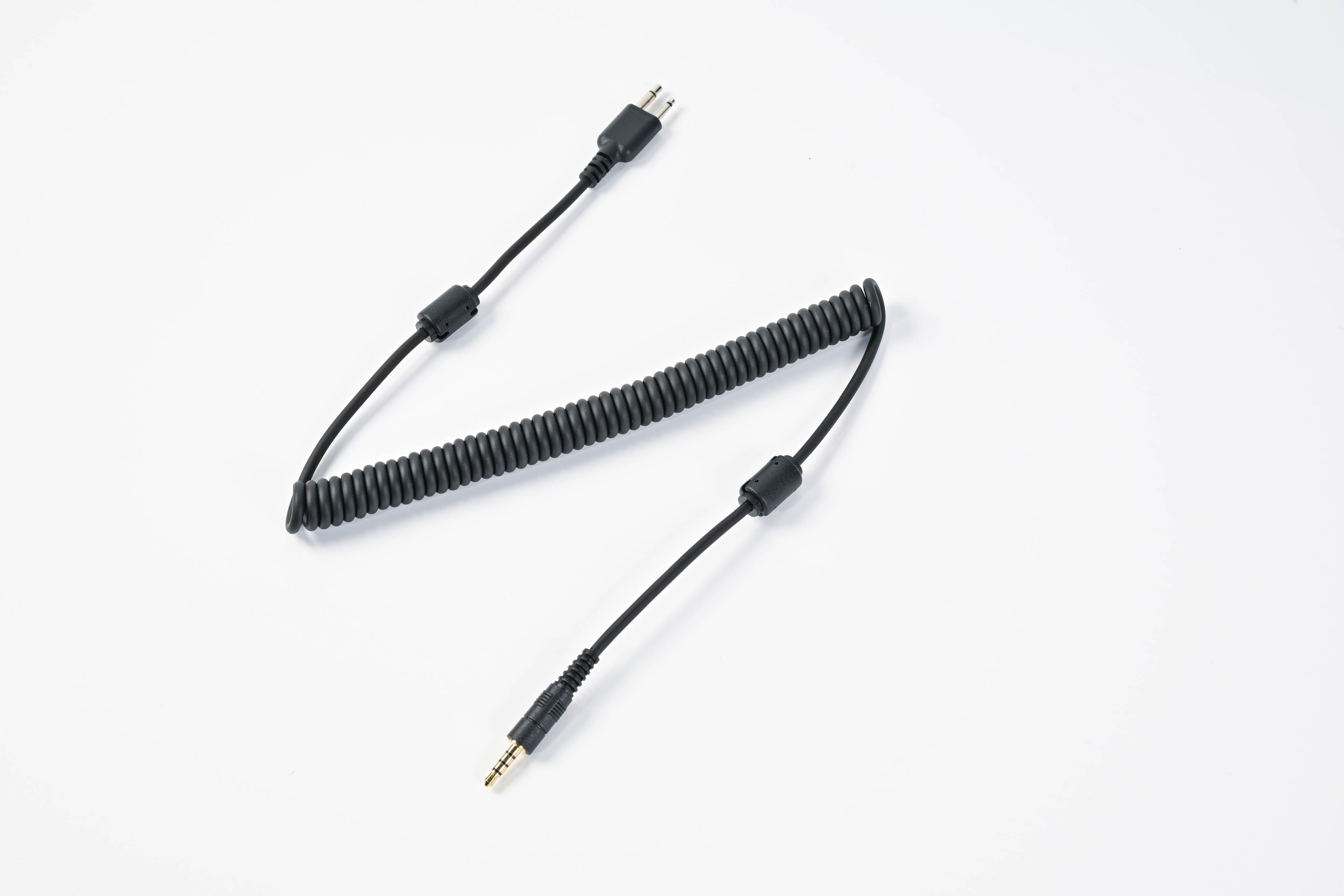

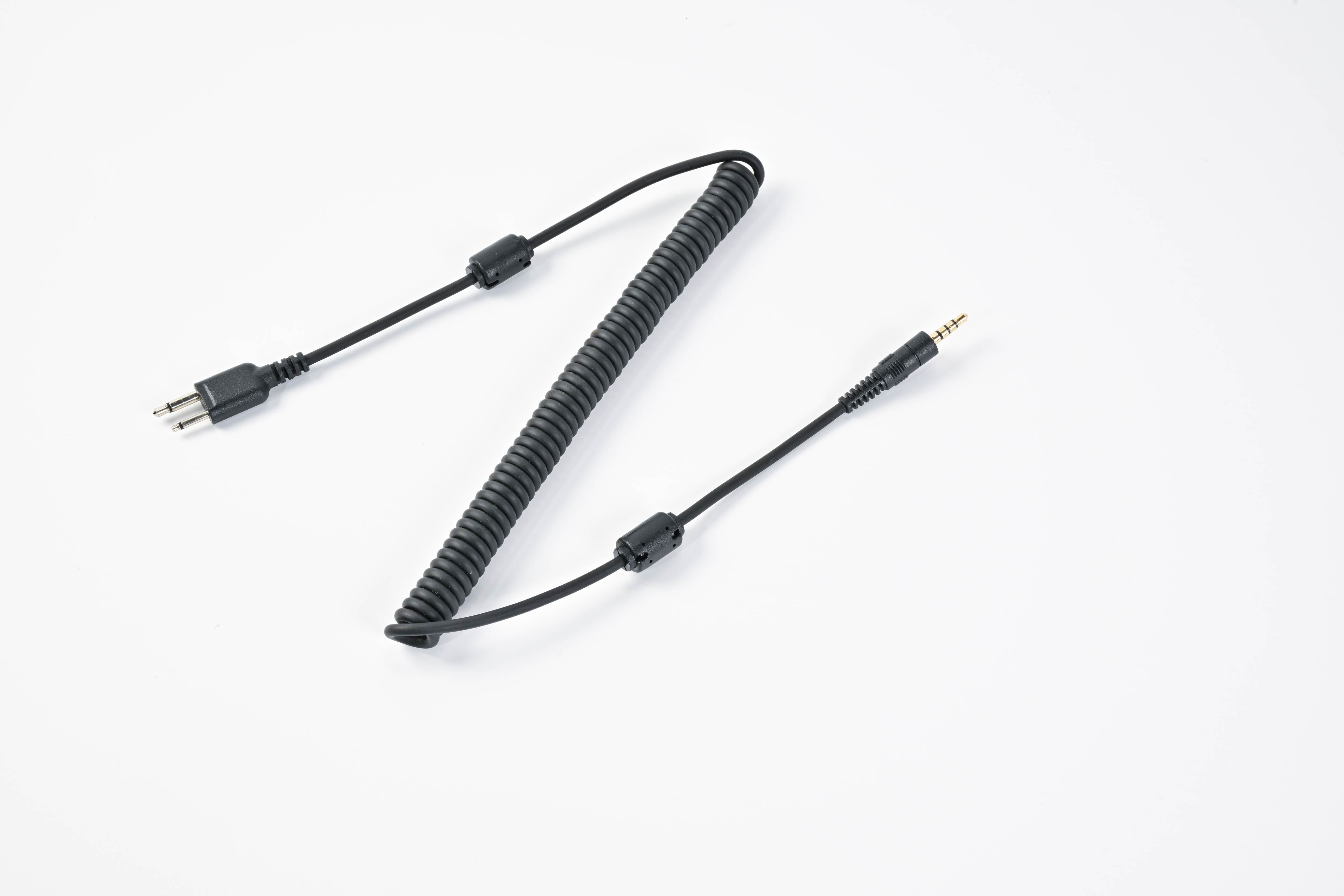

Model No: TRRS TO K1 180 degree straight head
TRRS TO K1 180 degree straight head
Cable Name
TRRS TO K1 180 degree straight head
Cable Specifications
28AWG*2C+D+AL+60P elastic TPU,
OD:3.5mm; Baking wire size: coil length 200mm,
coil diameter: 14mm, each end stay: 180mm;
rod diameter: 7mm;
Magnetic ring injection molded at both ends

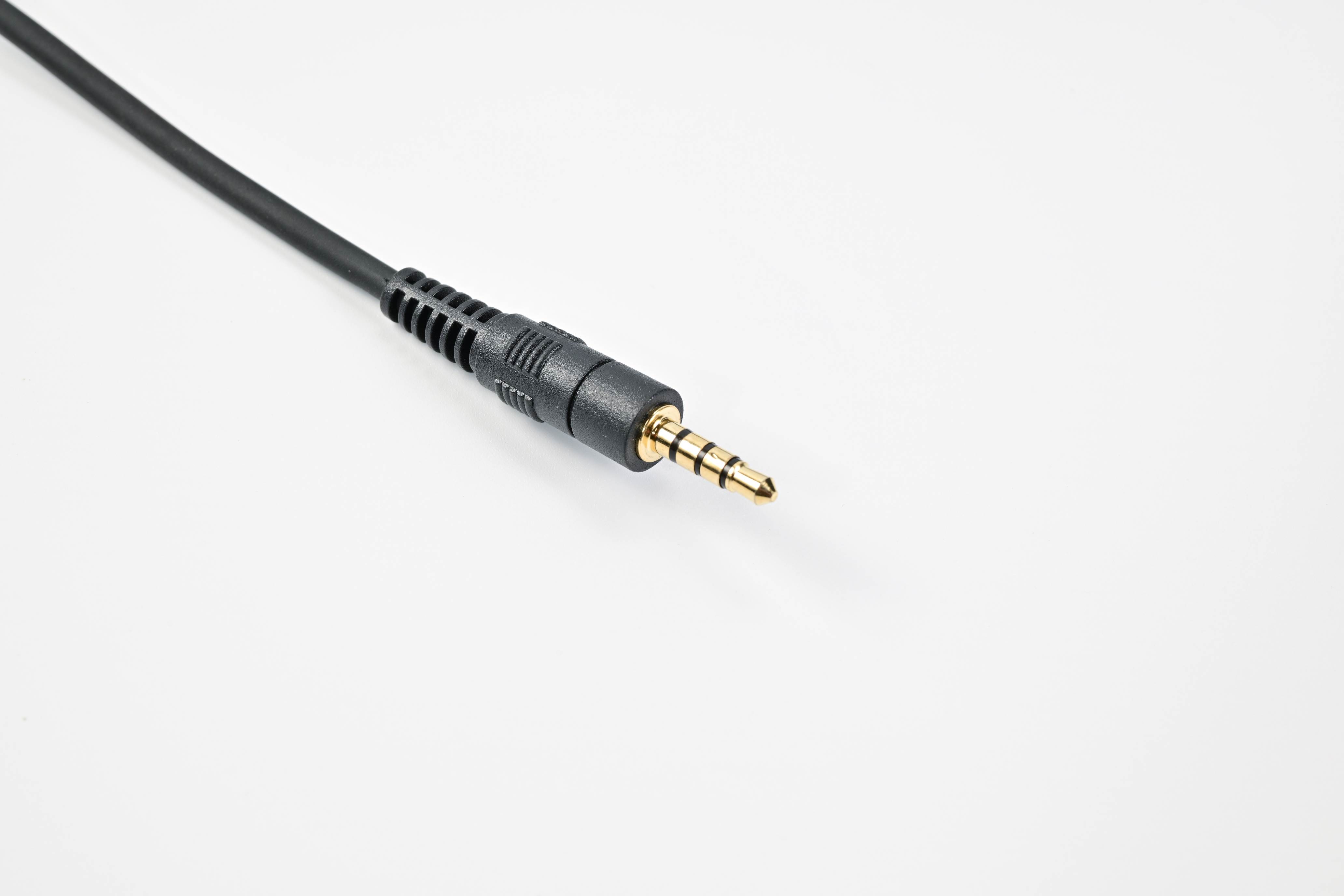

connector1:TRRS Male Gold Plated, 180 Degree Injection Molding

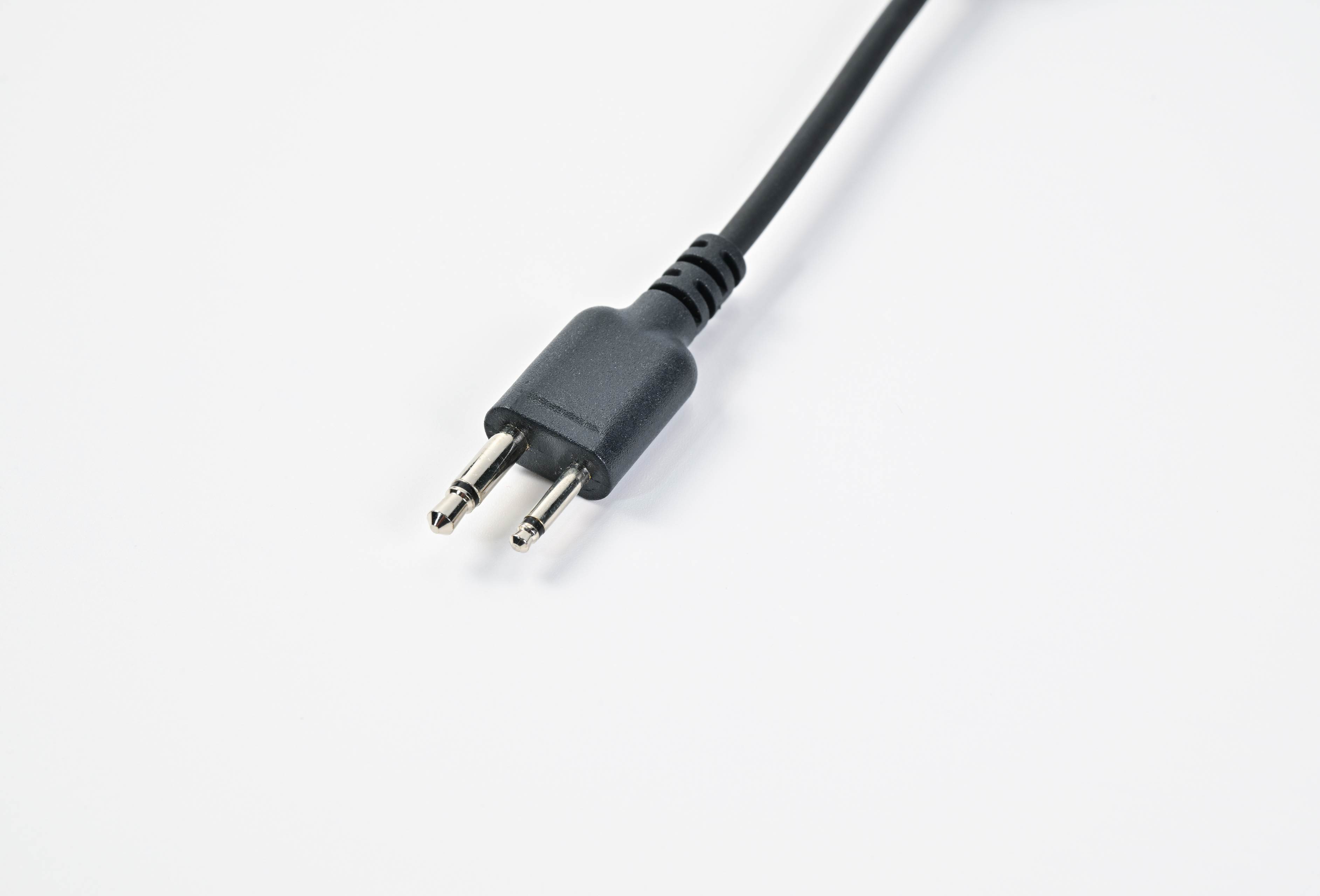

connector2:K1 (3.5 3-Pole + 2.5 3-Pole) Gold Plated 180° Male Straight, Injection Molded Black
lengths ：200MM
TRRS TO K1 180 degree straight head
Cable Specifications
28AWG*2C+D+AL+60P elastic TPU,
OD:3.5mm; Baking wire size: coil length 200mm,
coil diameter: 14mm, each end stay: 180mm;
rod diameter: 7mm;
Magnetic ring injection molded at both ends
connector1:TRRS Male Gold Plated, 180 Degree Injection Molding
connector2:K1 (3.5 3-Pole + 2.5 3-Pole) Gold Plated 180° Male Straight, Injection Molded Black
lengths ：200MM
Quantity :
| Cable Name: | TRRS TO K1 180 degree straight head |
| Cable Specifications: | 28AWG*2C+D+AL+60P elastic TPU, |
| Baking wire size: | coil length 200mm |
| OD： | 3.5MM |
| coil diameter: | 14mm, each end stay: 180mm; |
| rod diameter: | 7mm |
| Magnetic ring injection molded at both ends | |
| connector1: | TRRS Male Gold Plated, 180 Degree Injection Molding |
| connector2: | K1 (3.5 3-Pole + 2.5 3-Pole) Gold Plated 180° Male Straight, Injection Molded Black |
| lengths ： | 200mm |

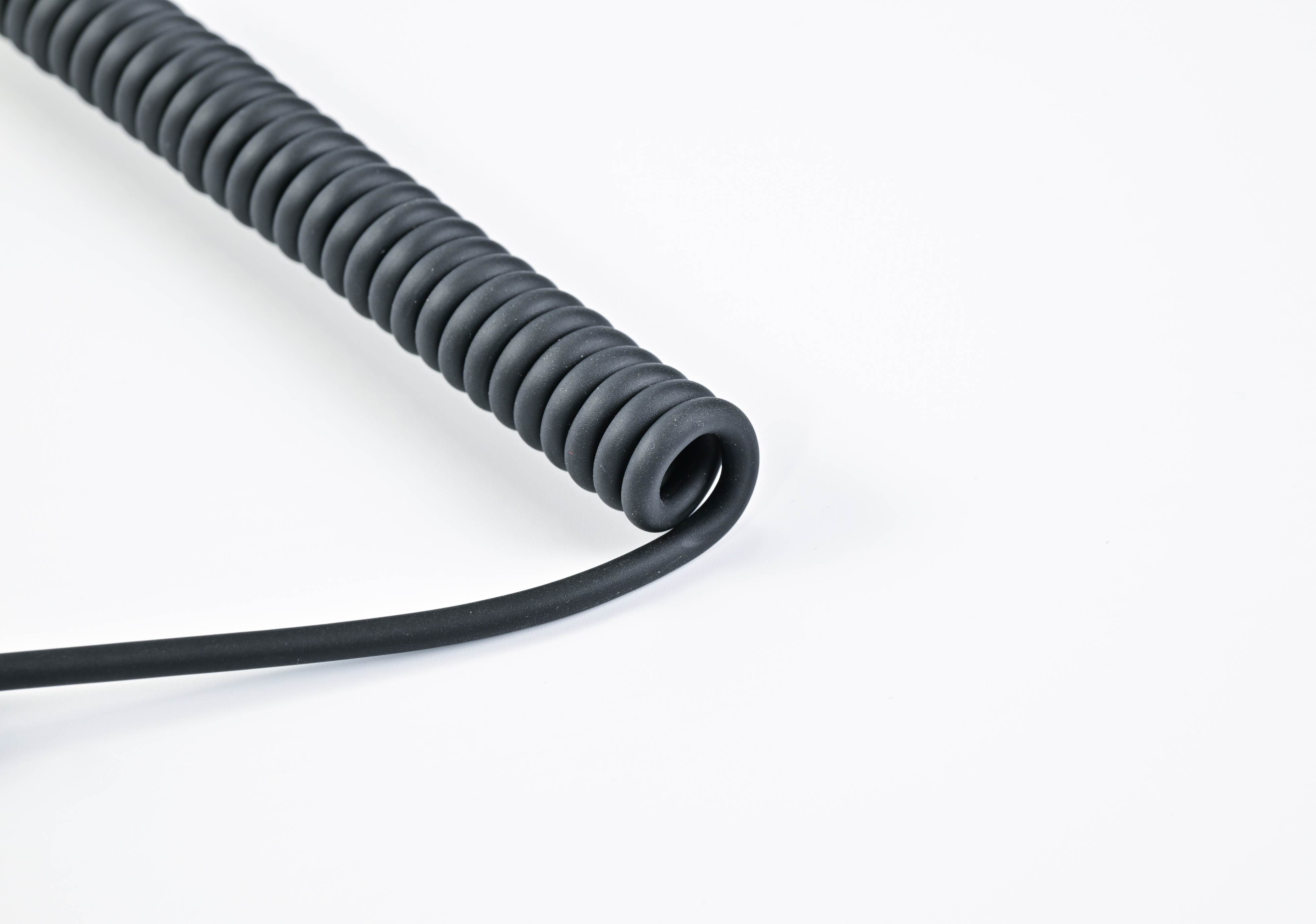

the retractable cables, also known as coiled cables, curly cables or spiral cables are a highly durable and flexible cable solution where extension and retraction of a cable is required. Spiral cables are used in a broad range of industries including manufacturing, telecommunications, the automotive industry, mechanical and plant engineering.the trrs male are gold-plating and 180 degree molding.
