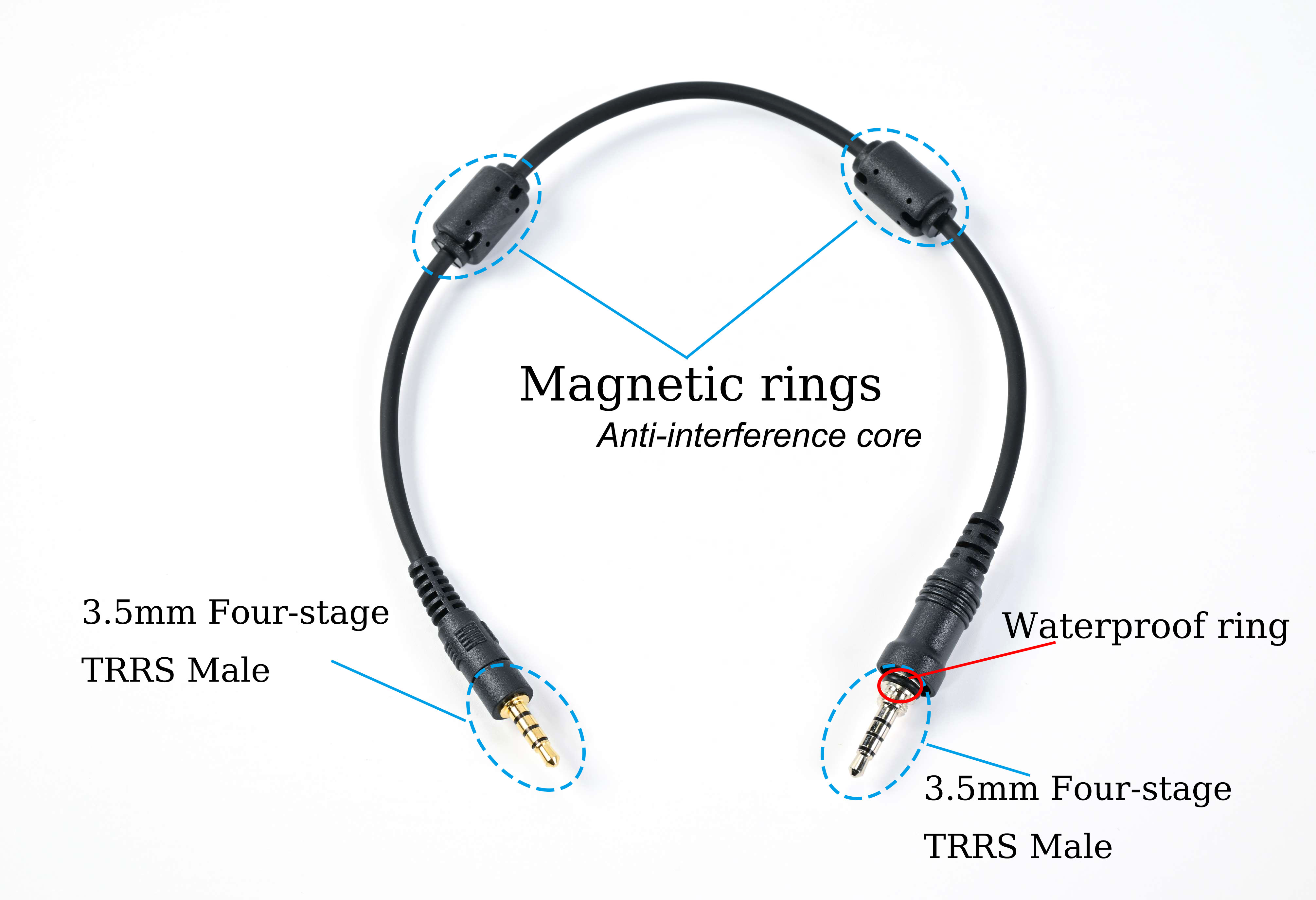

TRRS to TRRS(TWO MAGNETIC RINGS) Audio Video Cable
Wire specification:28AWG*2C+D+AL 60P PVC,molded magnetic rings at both ends
OD:3.5MM
Length: 200mm
Connector 1: TRRS MALE
Connector 2: TRRS MALE
Test requirements (100% test) :
No short circuit,open circuit,dislocation,poor insulation,etc
Specification:TRRS to TRRS Audio Video Cable

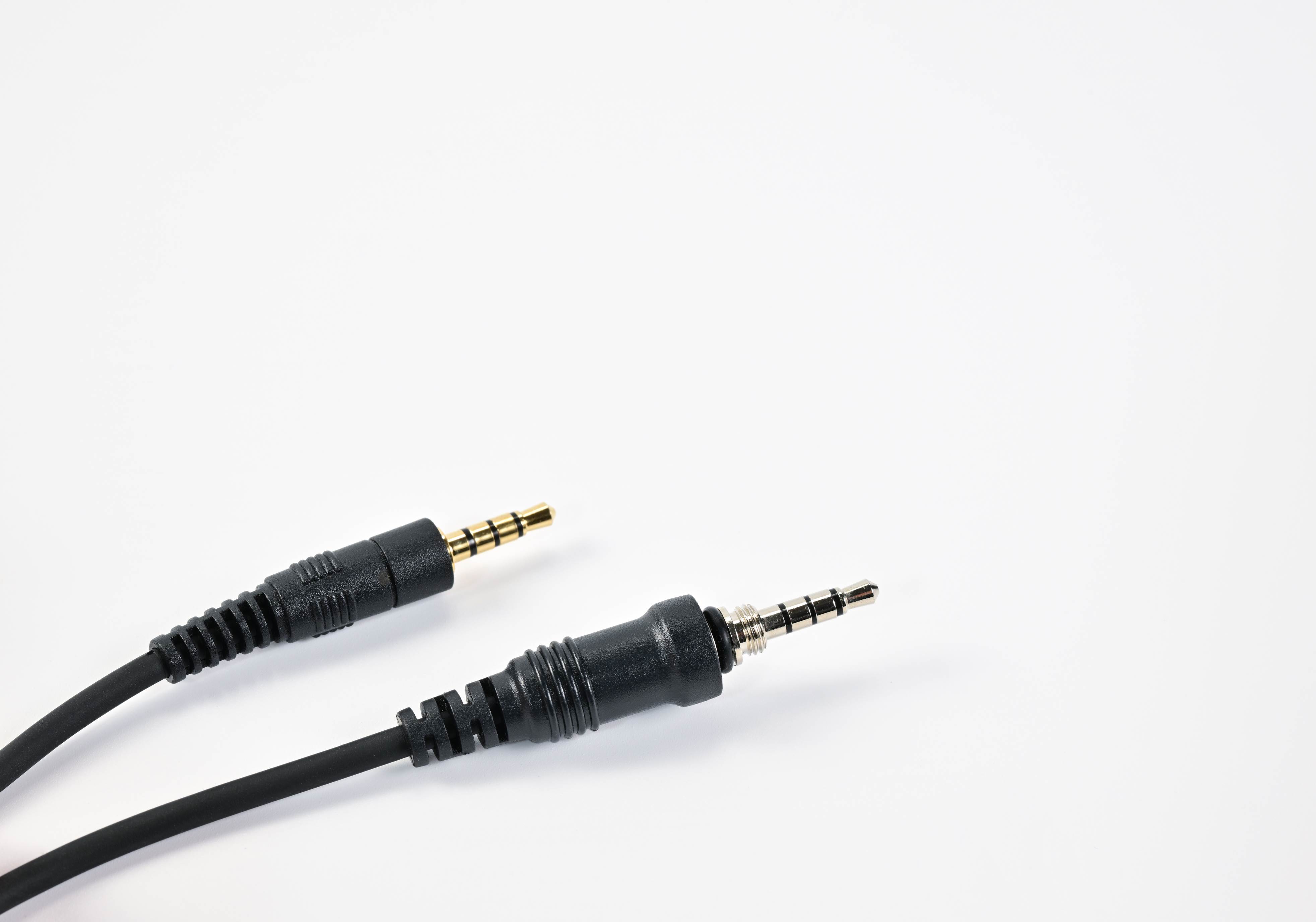

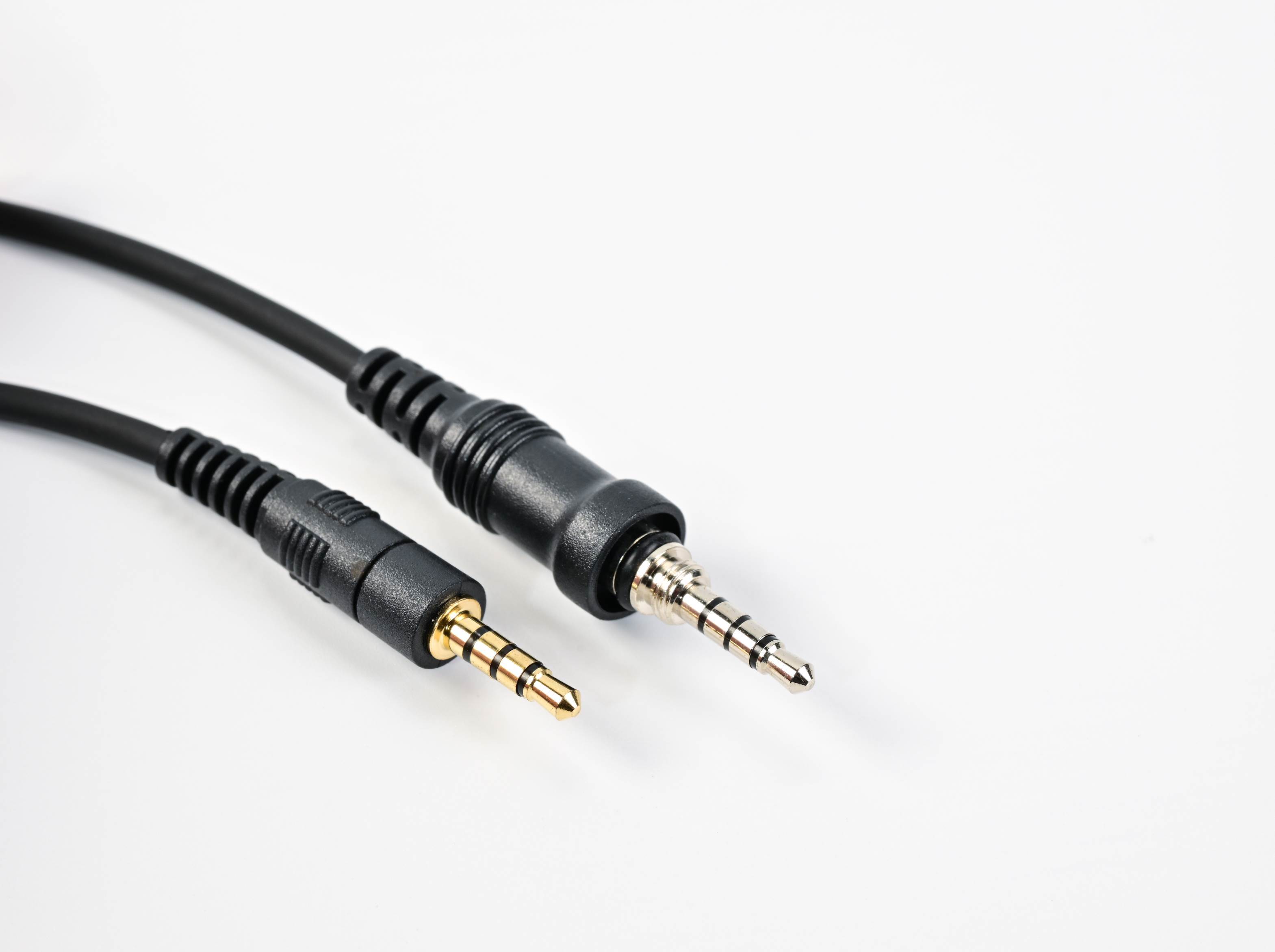

One end: Threaded locking 3.5mm Four-stage TRRS Male

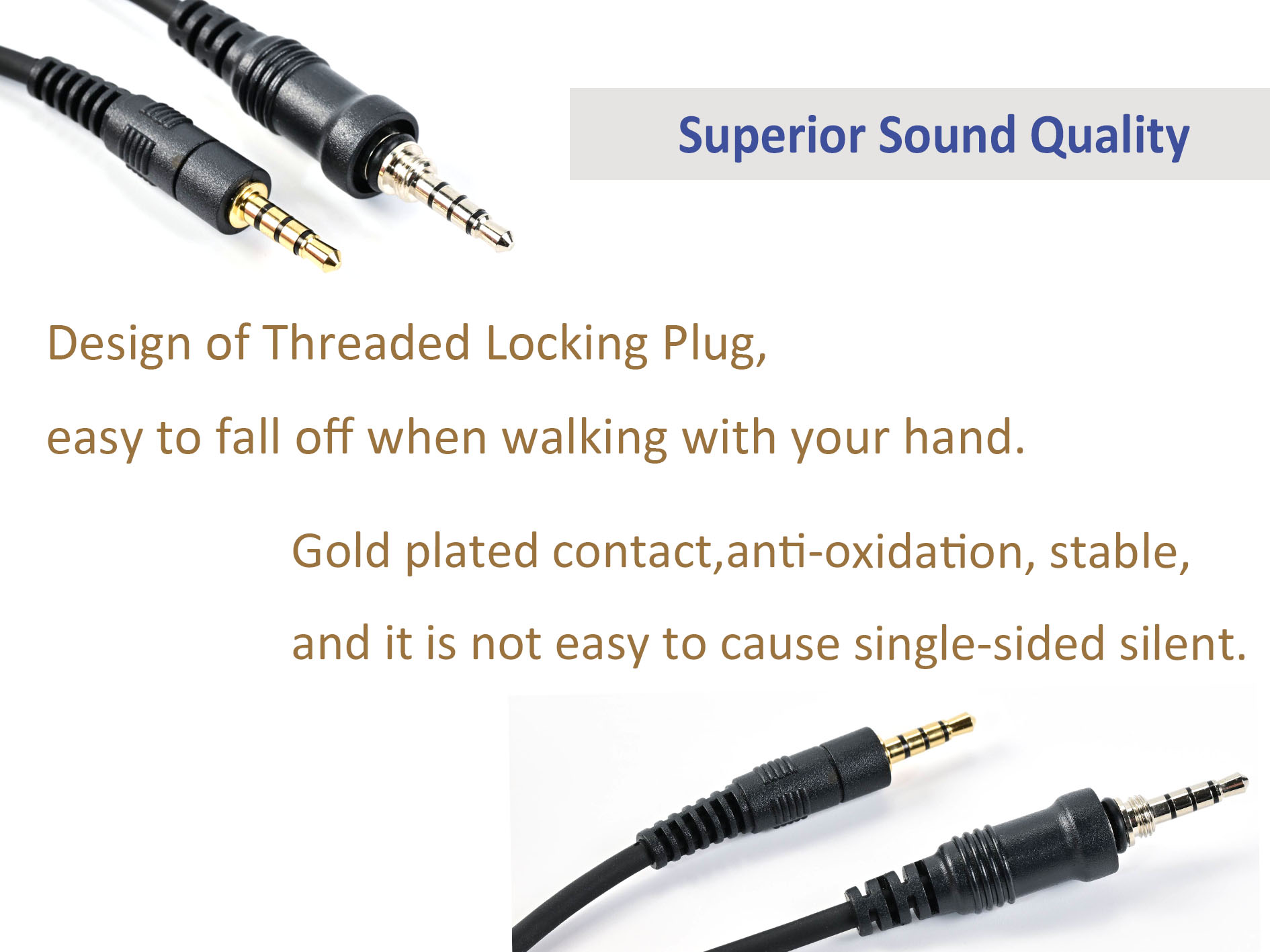

With non-slip threaded nuts,the earphone/data port on the side of the walkie-talkie can be tightened and locked to prevent the wire from being loosened and disconnected when moving or holding it; The TRRS male has 4 TRRS contacts,simultaneously transmit audio PTT transmission control signal.
The other end: 3.5mm Four-stage TRRS Male
This TRRS male has gold plated contacts,low impedance,low audio loss;It is used for connecting sound card,computer,radio adapter Digirig,recording equipment and earphone monitoring end to transmit and receive audio.
The TRRS to TRRS audio video cable,one end is threaded locking TRRS male,the other end is TRRS Male.The TRRS to TRRS audio video cable are made of high-quality copper.This TRRS to TRRS audio video cable are tested and certified strictly,no short circuit,open circuit,dislocation,poor insulation,etc.
XUNER cable are professional manufacturer of audio video cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!
This TRRS to TRRS audio video cable has two connectors.The connector1 is Threaded locking TRRS Male,the connector2 is TRRS Male.The TRRS to TRRS audio video cable is widely used in computer digital communication,radio recording and monitoring,portable external microphone PTT control and radio walkie-talkie etc.
Detailed Display of the Product
| Cable Name: | TRRS to TRRS Audio Video Cable |
| Wire specification: | 28AWG*2C+D+AL 60P PVC,molded magnetic rings at both ends |
| OD： | 3.5MM |
| Connector1: | TRRS MALE |
| Connector2: | TRRS MALE |
| Lengths： | 200mm |
| Test requirements (100% test)： | No short circuit,open circuit,dislocation,poor insulation,etc. |
