Model No: MINI DIN 9 PIN Female to 3RCA and Micro USB Female Audio Video Cable
MINI DIN 9 PIN Female to 3RCA and Micro USB Female Audio Video Cable
Cable Name:MINI DIN 9 PIN Female to 3RCA and Micro USB Female Audio Video Cable
Connector1:MINI DIN 9 PIN Female
Connector2:3RCA Female and Micro USB Female
Lengths:20cm
Connector1:MINI DIN 9 PIN Female
Connector2:3RCA Female and Micro USB Female
Lengths:20cm
Quantity :

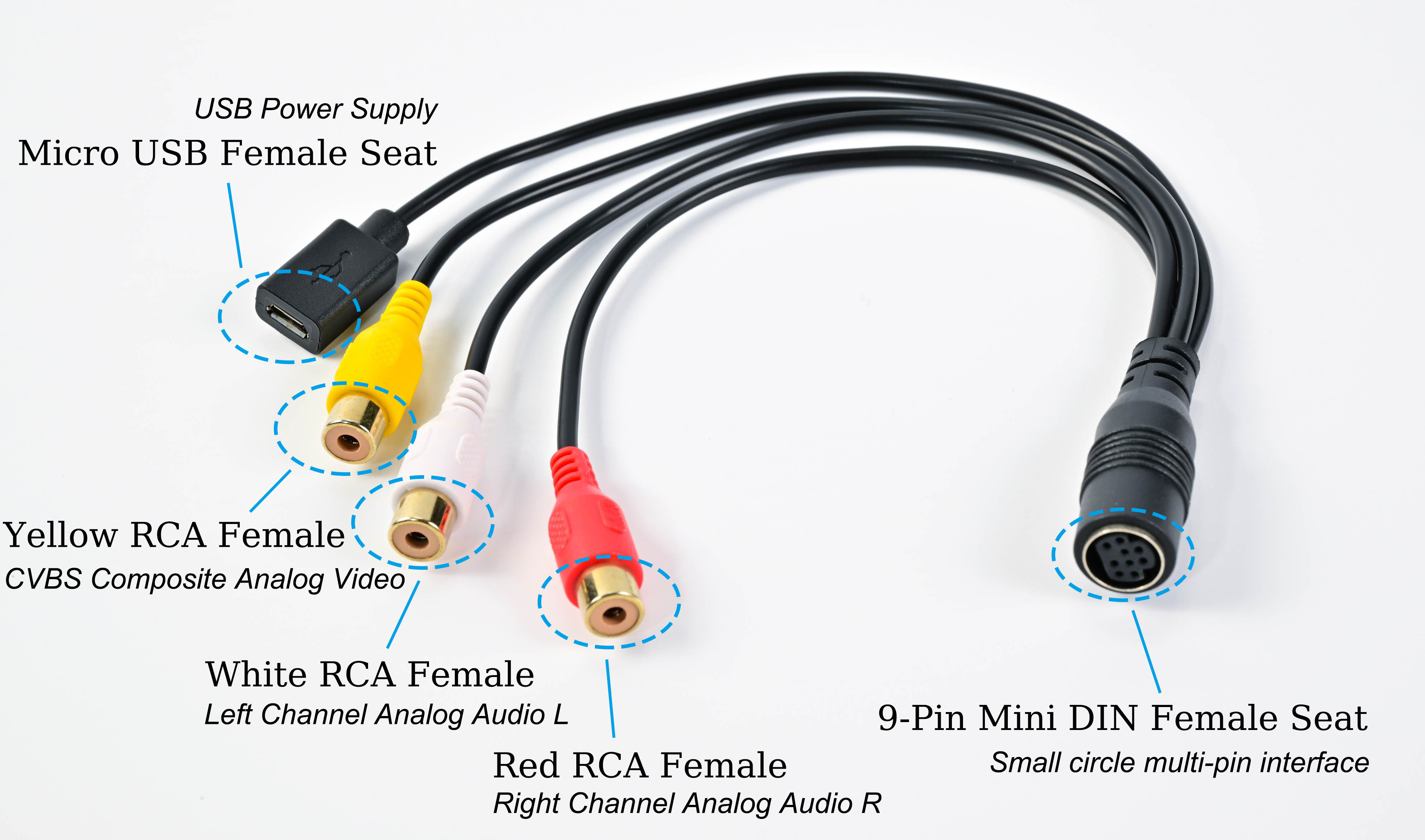

1. MINI DIN 9 PIN Female Seat
The internal MINI DIN 9 PIN respectively distribute video,left and right audio,and USB power/data signals.It is an integrated composite output port for the device.

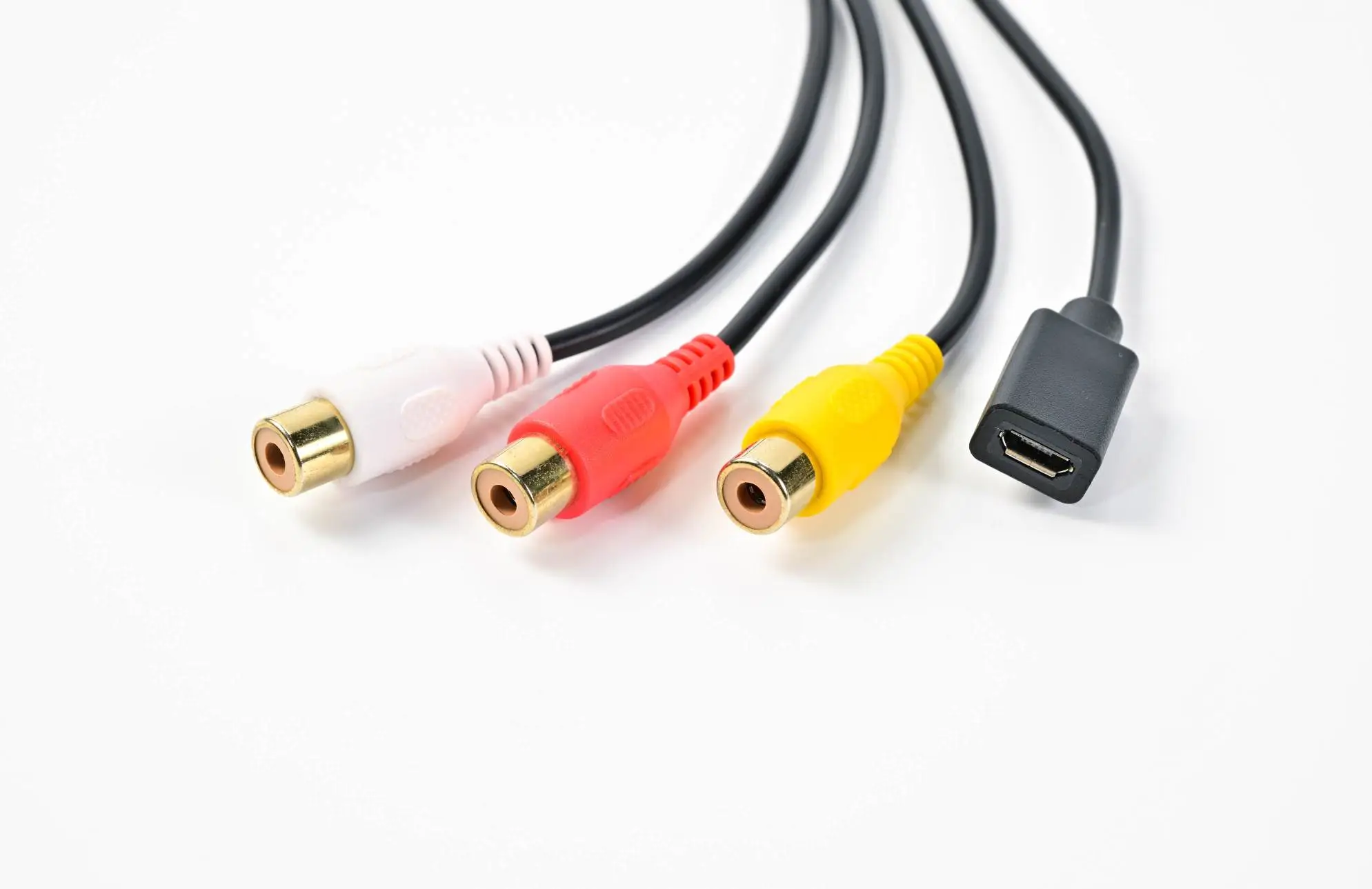

2.Tricolor RCA Female Audio Video Cable
Yellow RCA video cable:Composite video CVBS,output 480i standard definition analog picture,suitable for old-fashioned TVs and monitors.
White/Red RCA audio cable:Two-channel stereo audio,connected to audio,power amplifier,TV audio input.

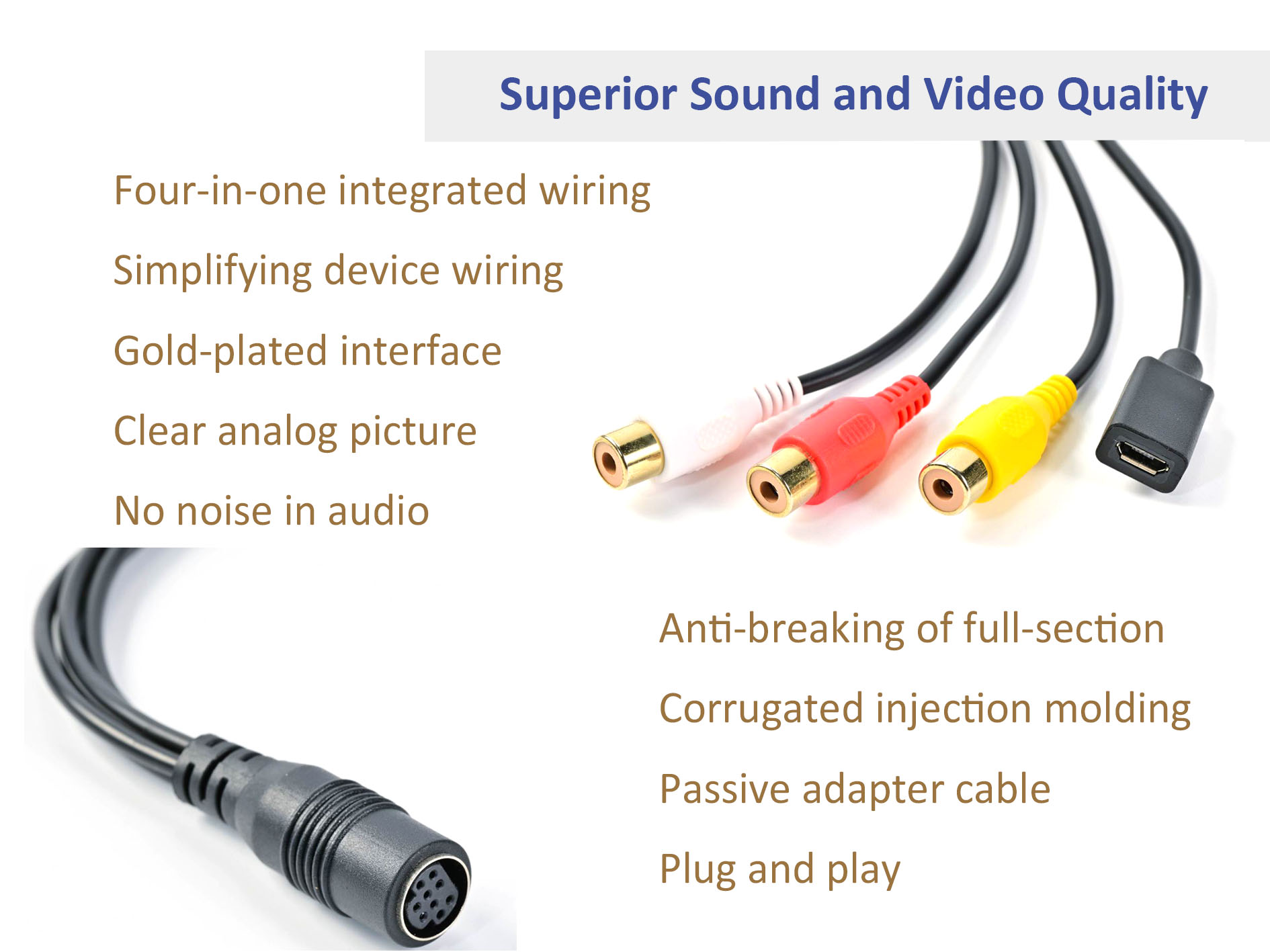

Gold-plated inner hole,analog signal transmission loss,picture snowflakes,noise.
3.Micro USB Female Port
Two uses:① This micro USB female audio video cable is for power supply to external equipment;②Transmit low-speed USB data (firmware upgrade,read U disk,device debugging).
The internal MINI DIN 9 PIN respectively distribute video,left and right audio,and USB power/data signals.It is an integrated composite output port for the device.
2.Tricolor RCA Female Audio Video Cable
Yellow RCA video cable:Composite video CVBS,output 480i standard definition analog picture,suitable for old-fashioned TVs and monitors.
White/Red RCA audio cable:Two-channel stereo audio,connected to audio,power amplifier,TV audio input.
Gold-plated inner hole,analog signal transmission loss,picture snowflakes,noise.
3.Micro USB Female Port
Two uses:① This micro USB female audio video cable is for power supply to external equipment;②Transmit low-speed USB data (firmware upgrade,read U disk,device debugging).
The MINI DIN 9 PIN female to three tricolor RCA and micro USB female audio video cable,one end is equipped with MINI DIN 9 PIN female,the other end are three tricolor RCA and micro USB female port.Audio video cable are used to connect items with USB,HDMI,or SVGA ports.
XUNER cable are professional manufacturer of audio video cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

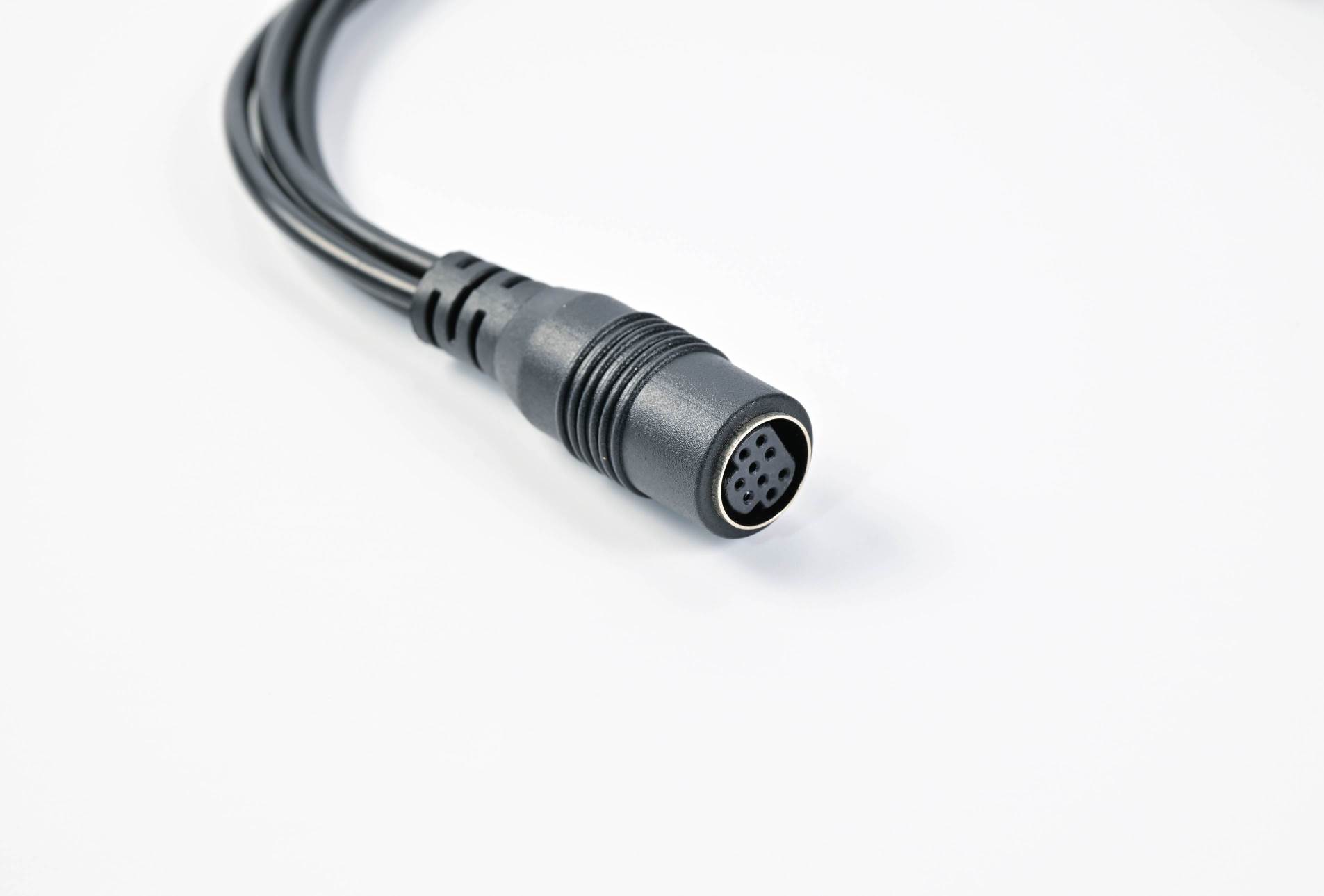

The MINI DIN 9 PIN female is small circle multi-pin interface.The tricolor RCA female audio video cable consists of a yellow RCA connector,a white and red RCA connector.The micro USB female mainly used for power supply.This MINI DIN 9 PIN female to three tricolor RCA and micro USB female audio video cable is mostly used in old-fashioned DVDs,vehicle hosts,monitoring hosts,portable players,and industrial equipment.
Detailed Display of The Product
| Cable name: | MINI DIN 9 PIN Female to 3RCA and Micro USB Female Audio Video Cable |
| Wire specification: | 32AWG*1C+S+integument+5c+F+Tissue paper,PVC |
| Connector1: | MINI DIN 9 PIN Female |
| Connector2: | 3RCA Female and Micro USB Female |
| Lengths： | 20cm |
| Test requirements (100% test) : | No short circuit,open circuit,dislocation,poor insulation,etc. |
