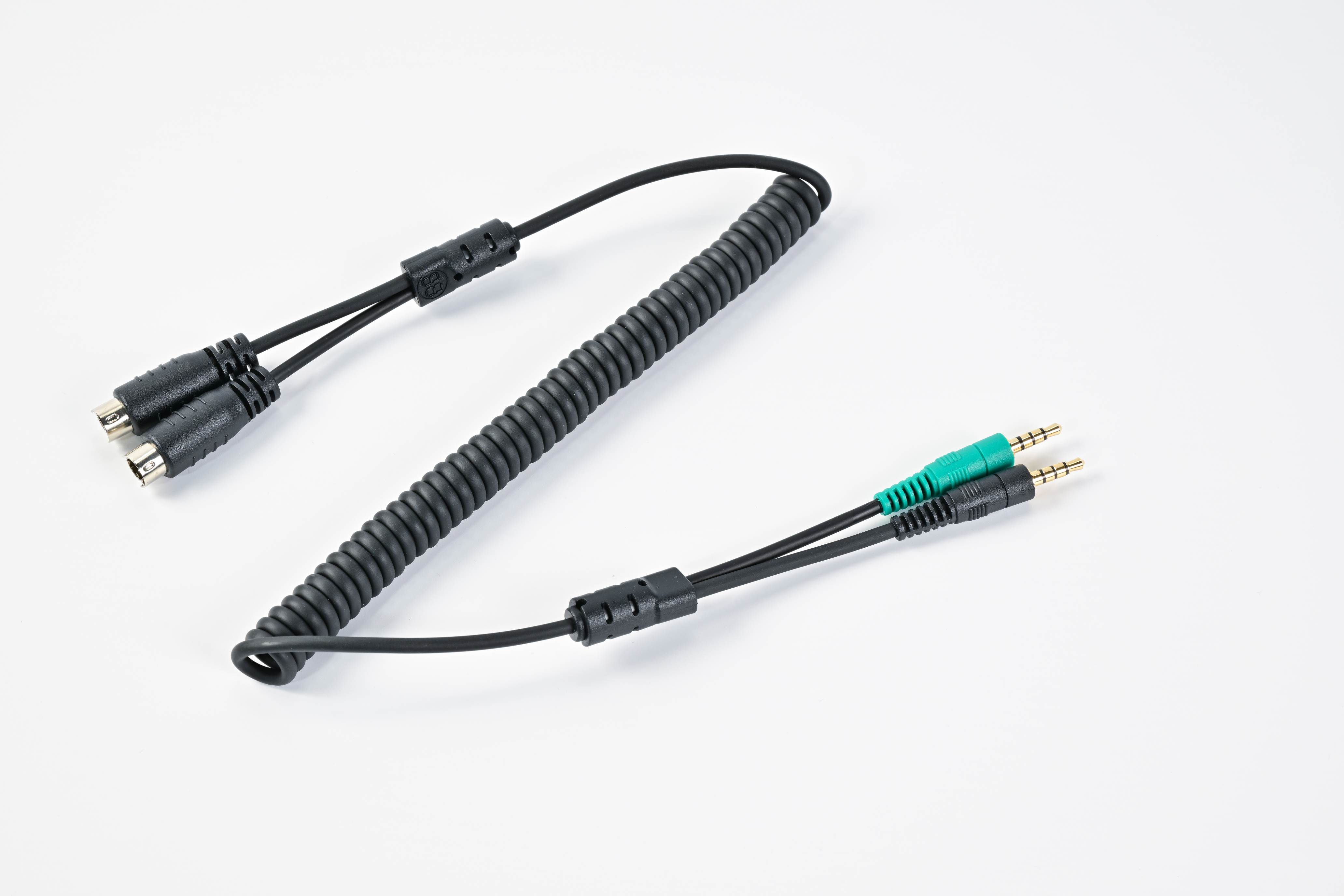

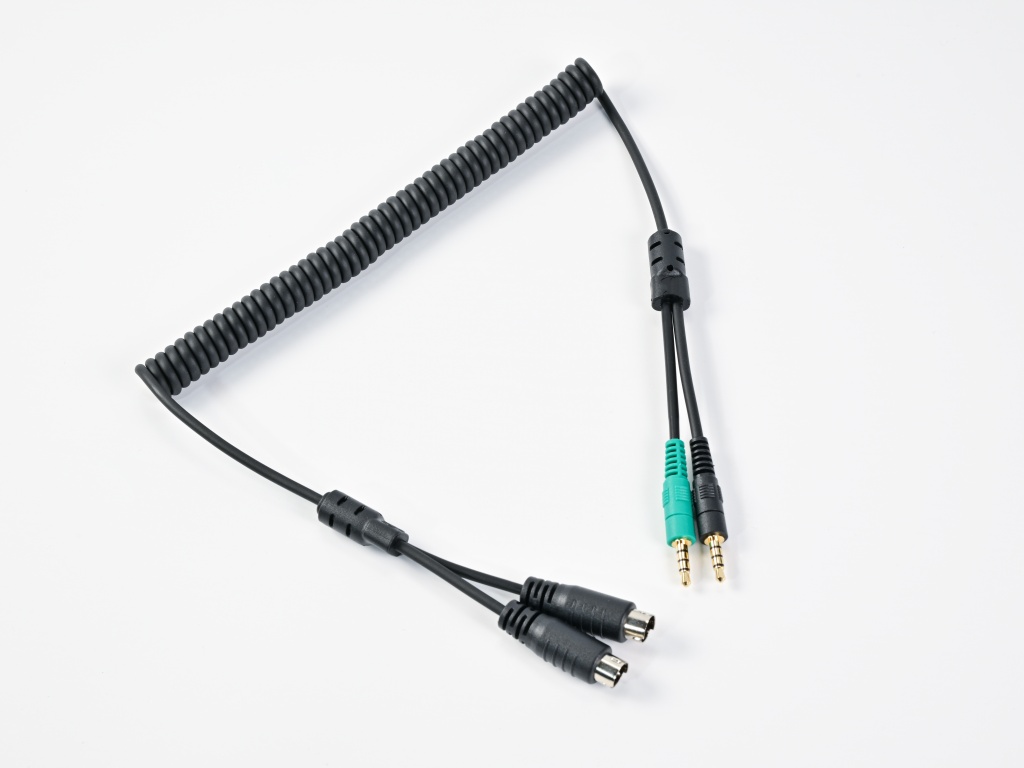

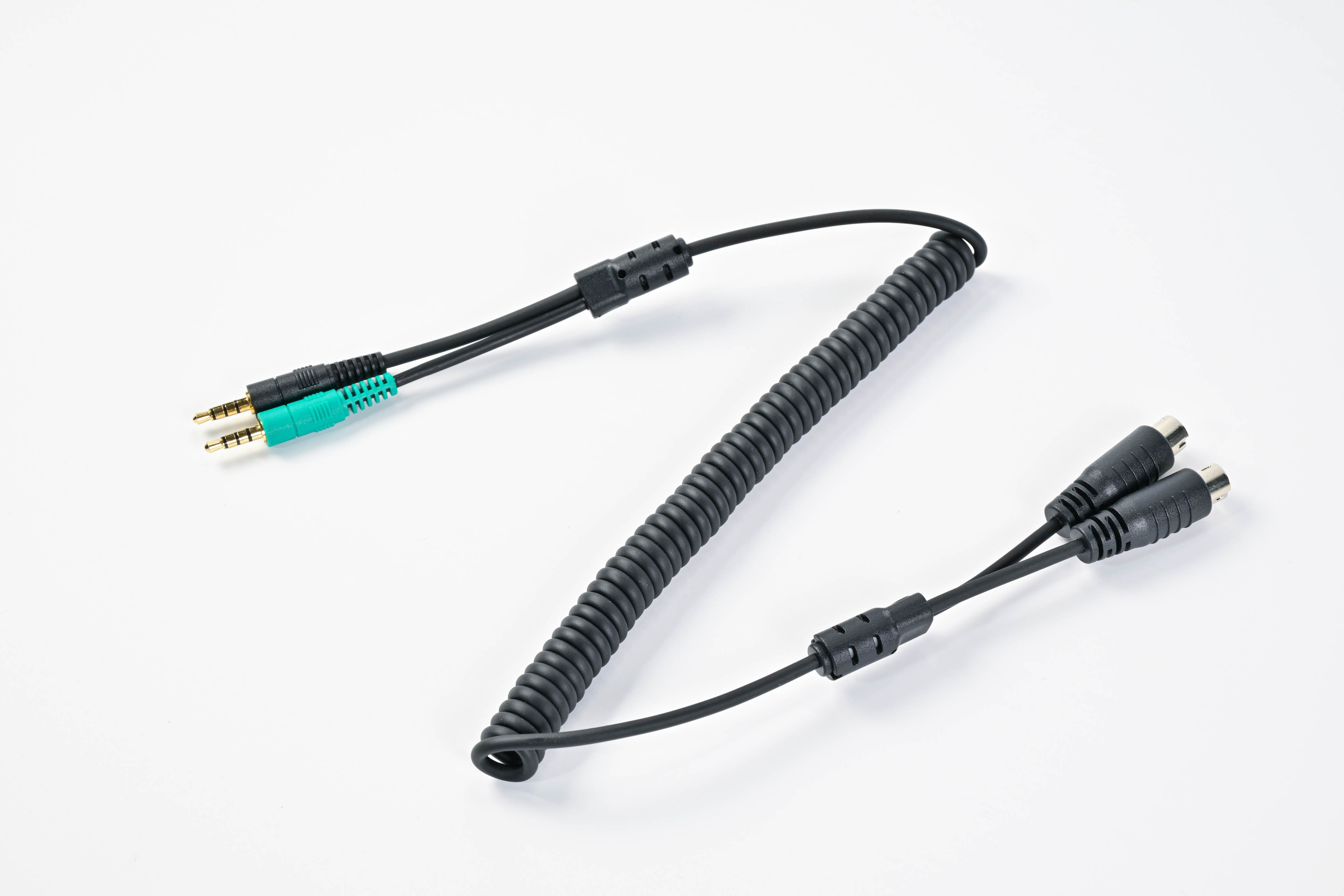

2TRRS Male to MINI DIN 8PIN and MINI DIN 6PIN Spiral Cable
Cable Specifications:28AWG*5C+D+AL+60P Elastic TPU
OD:3.5mm,injection-molded magnetic rings at both ends (2 magnetic rings)

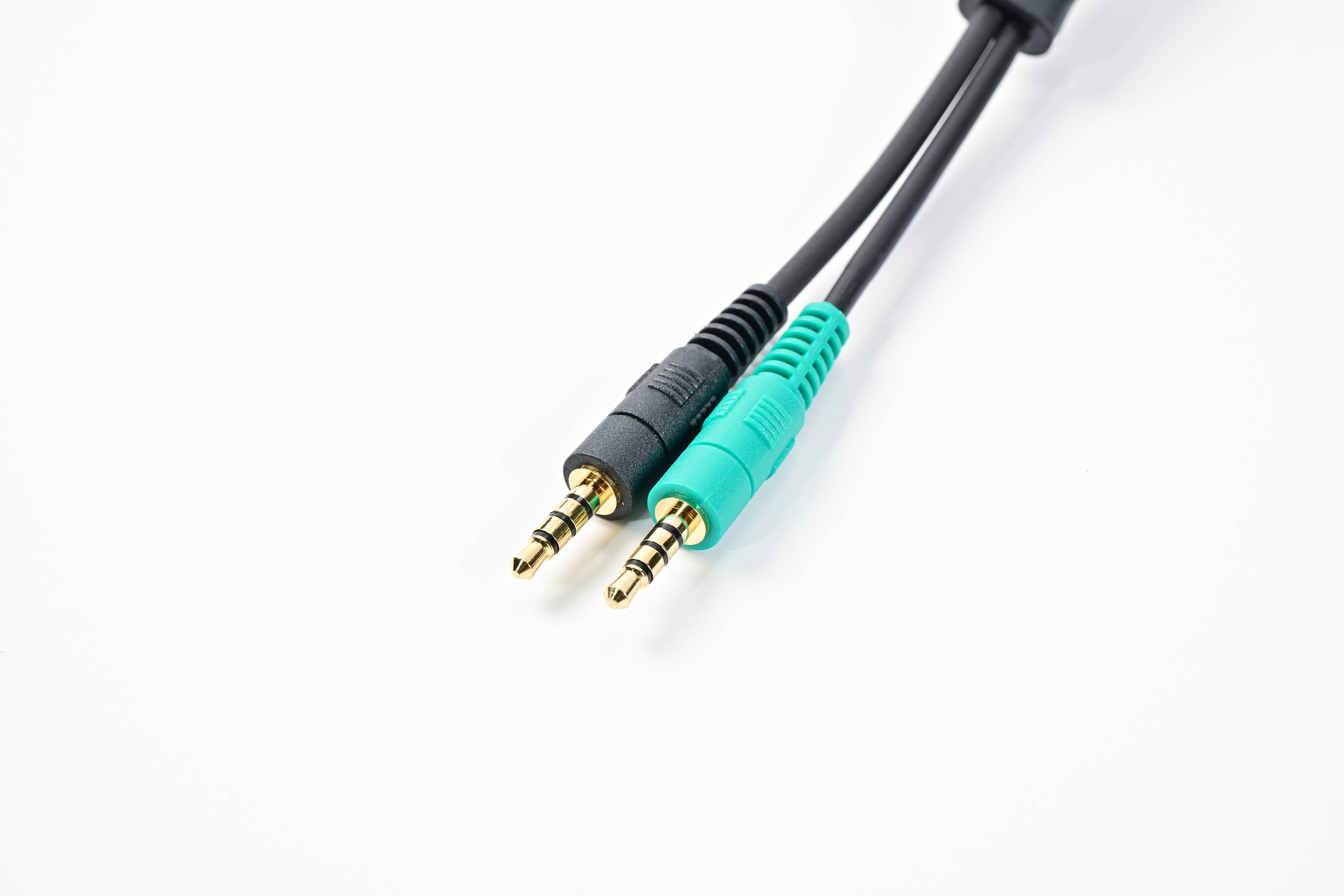

Connector1:2*TRRS Male Gold Plated,180 Degree Injection Molded

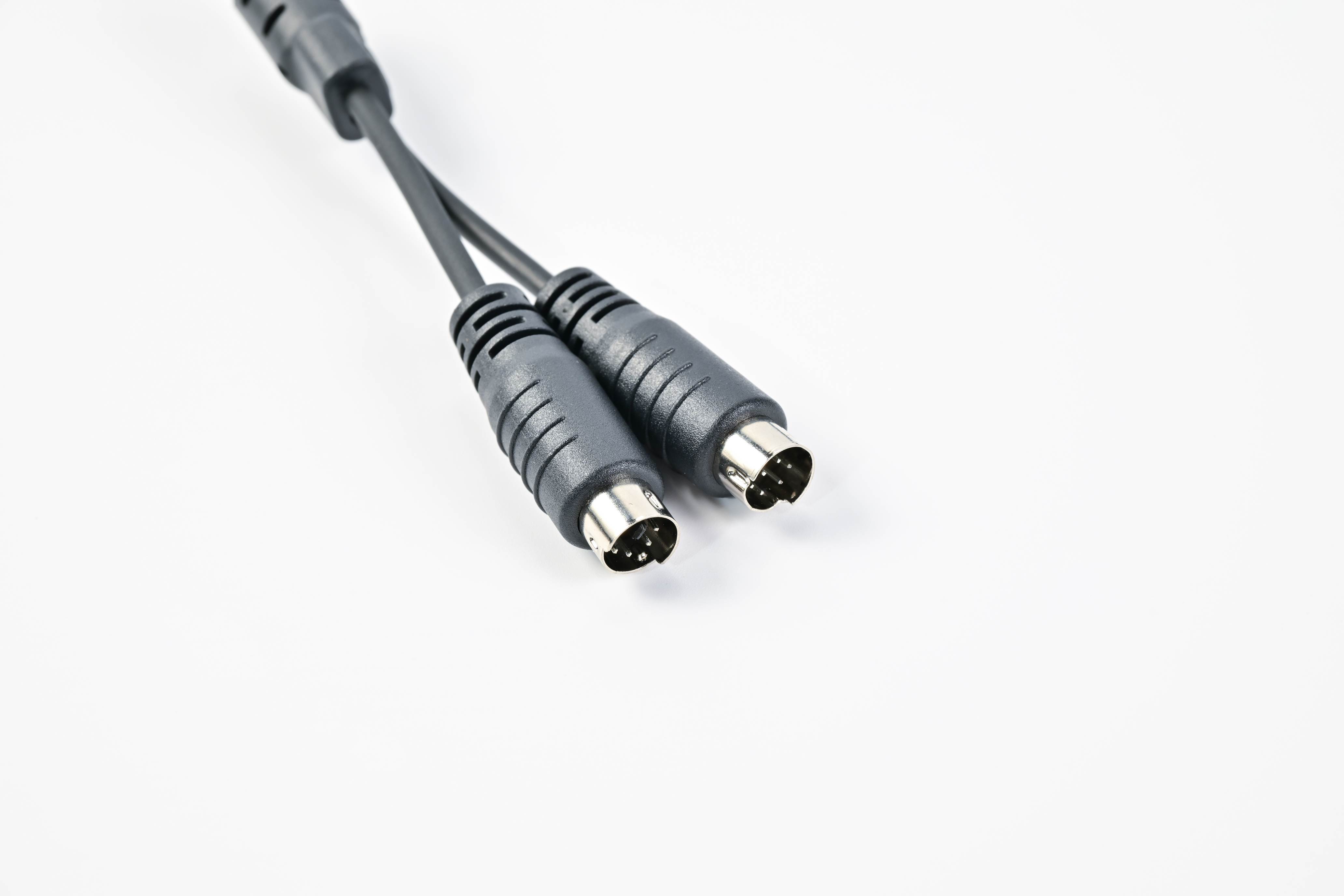

Connector2:MINI DIN 6PIN male and MINI DIN 8PIN male
Lengths:Straight length 40-45CM
Test requirements (100% test):No short circuit, open circuit, dislocation, poor insulation,etc.

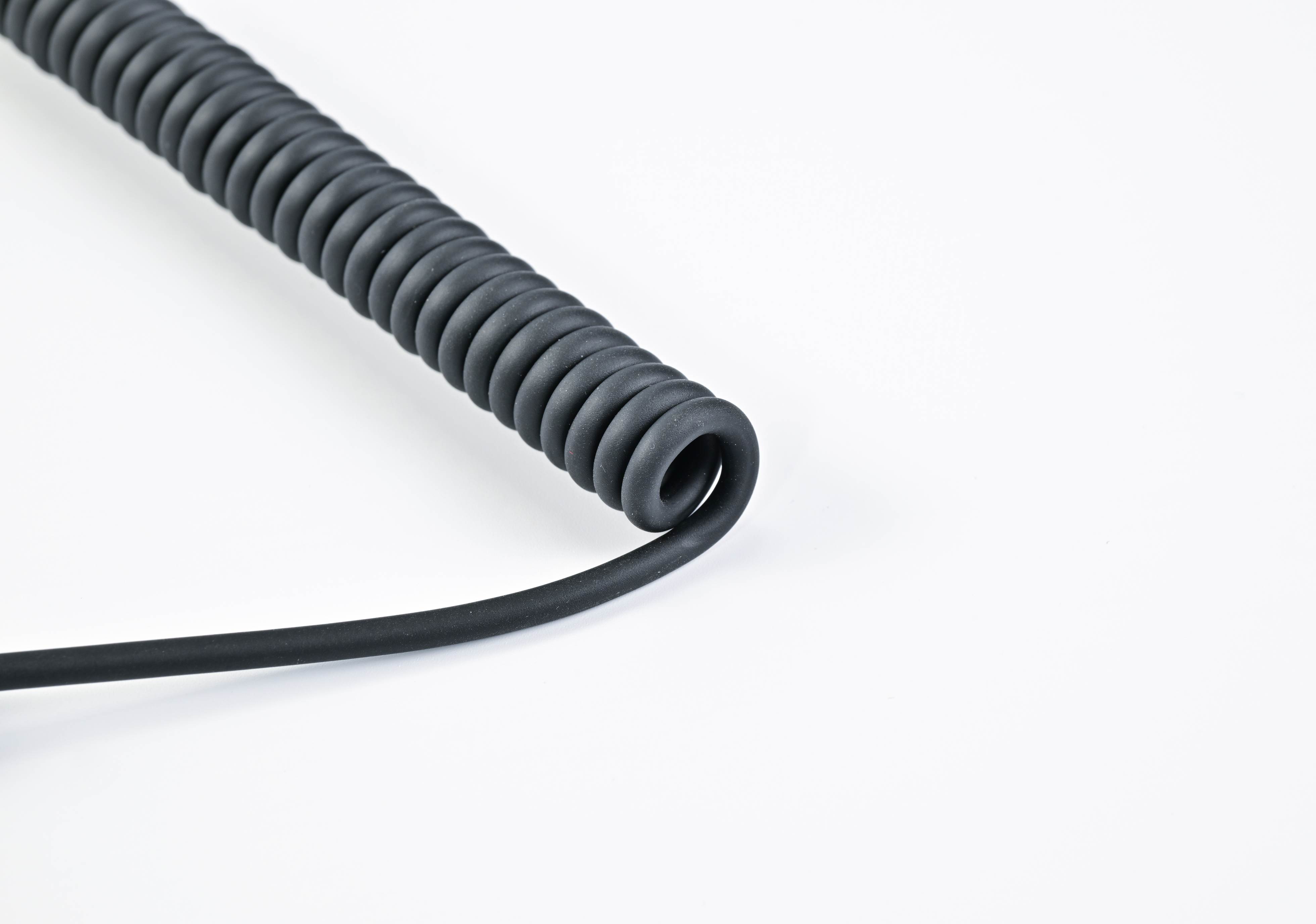

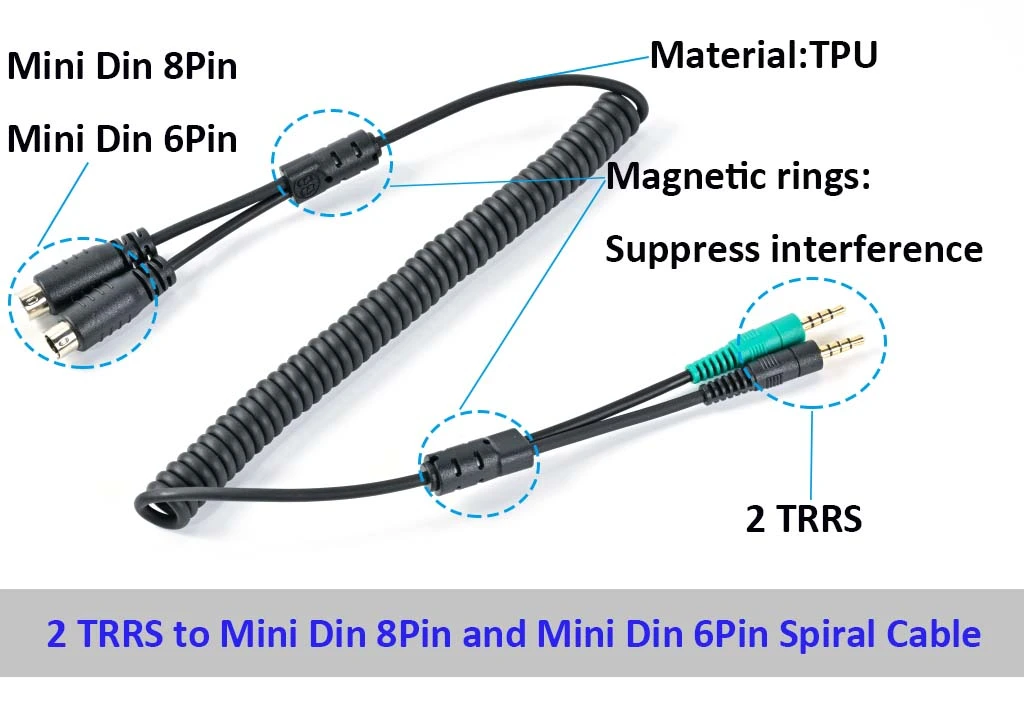

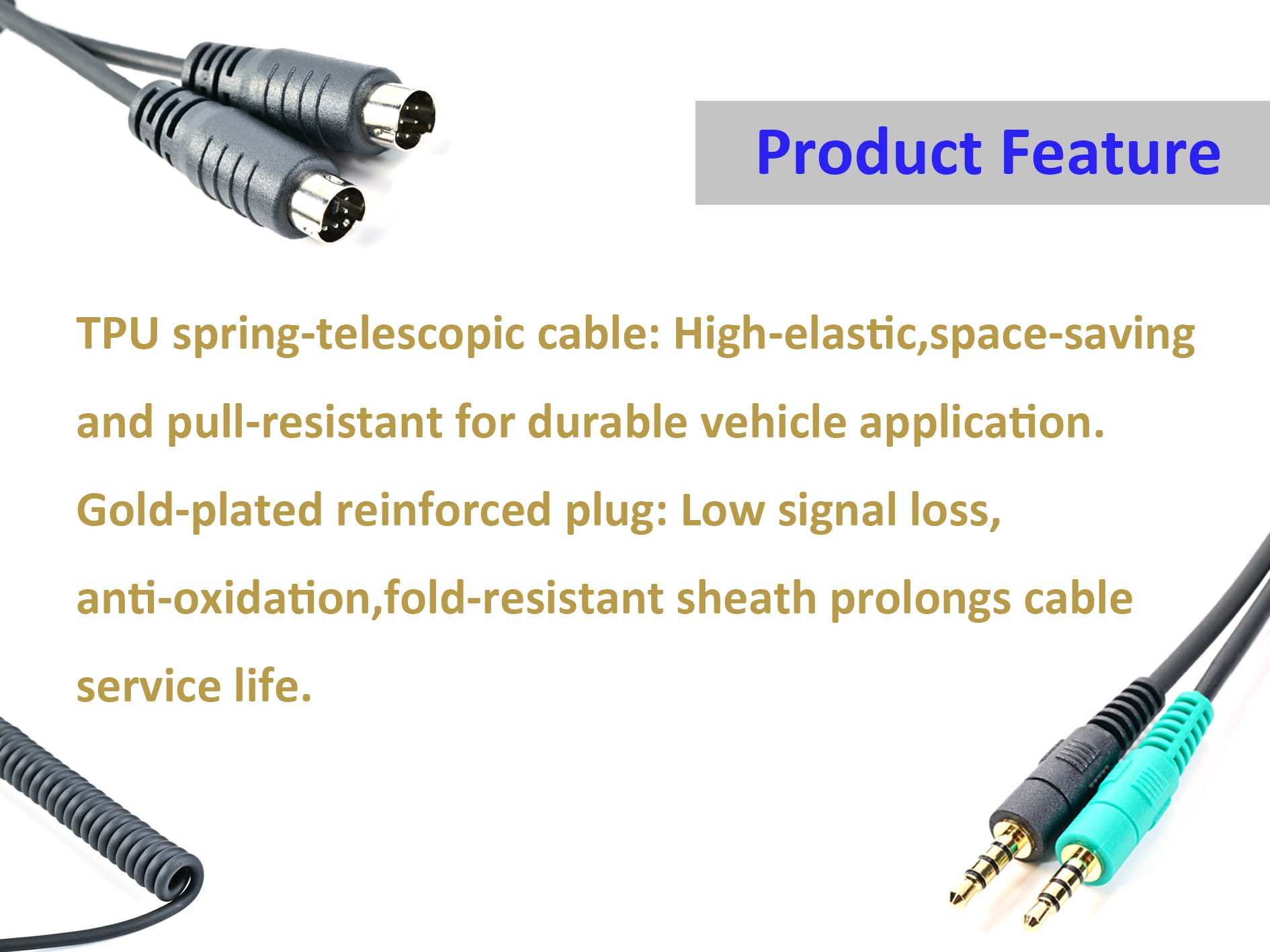

This 2TRRS male to MINI DIN 8PIN and MINI DIN 6PIN spiral cable is made of flexible TPU material,fitted with two TRRS male plugs on one end and Mini Din 8Pin & Mini Din 6Pin connectors for professional radio transceivers on the other.Our 2TRRS male to MINI DIN 8PIN and MINI DIN 6PIN spiral cable is designed with retractable spring wire,it is stretchable,compact to store and resistant to bending and pulling for reliable vehicle mounting.Dual ferrite cores block RF interference to avoid audio howling and distortion,while gold-plated 3.5 contacts cut signal loss and resist oxidation with reinforced strain relief for longer service life.
The 2TRRS male to MINI DIN 8PIN and MINI DIN 6PIN spiral cable,one end is 2*TRRS male gold plated,the other end are MINI DIN 6PIN male and MINI DIN 8PIN male connectors.The material of spiral cable is TPU.The 2TRRS male to MINI DIN 8PIN and MINI DIN 6PIN spiral cable is tested and certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

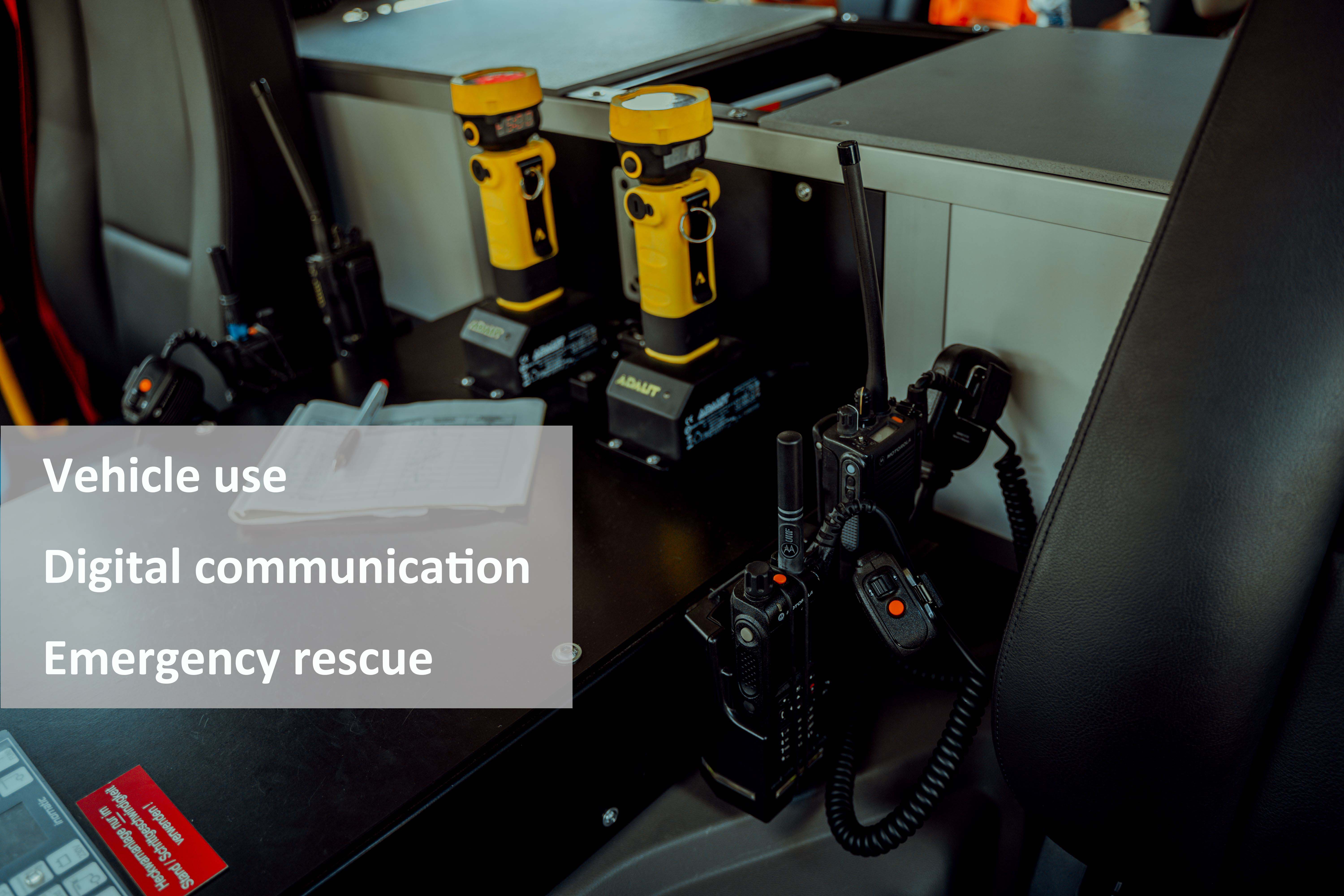

Custom‑made for HAM radio operators,our 2TRRS male to MINI DIN 8PIN and MINI DIN 6PIN spiral cable prevents in‑vehicle cable tangling and shields radio interfaces from off‑road bump damage. Compatible with laptops and WSJT‑X software, it supports long‑range weak‑signal digital modes, image transfer, APRS positioning and radio email, serving as reliable emergency communication gear for remote mountains and disaster zones with lost public network coverage.

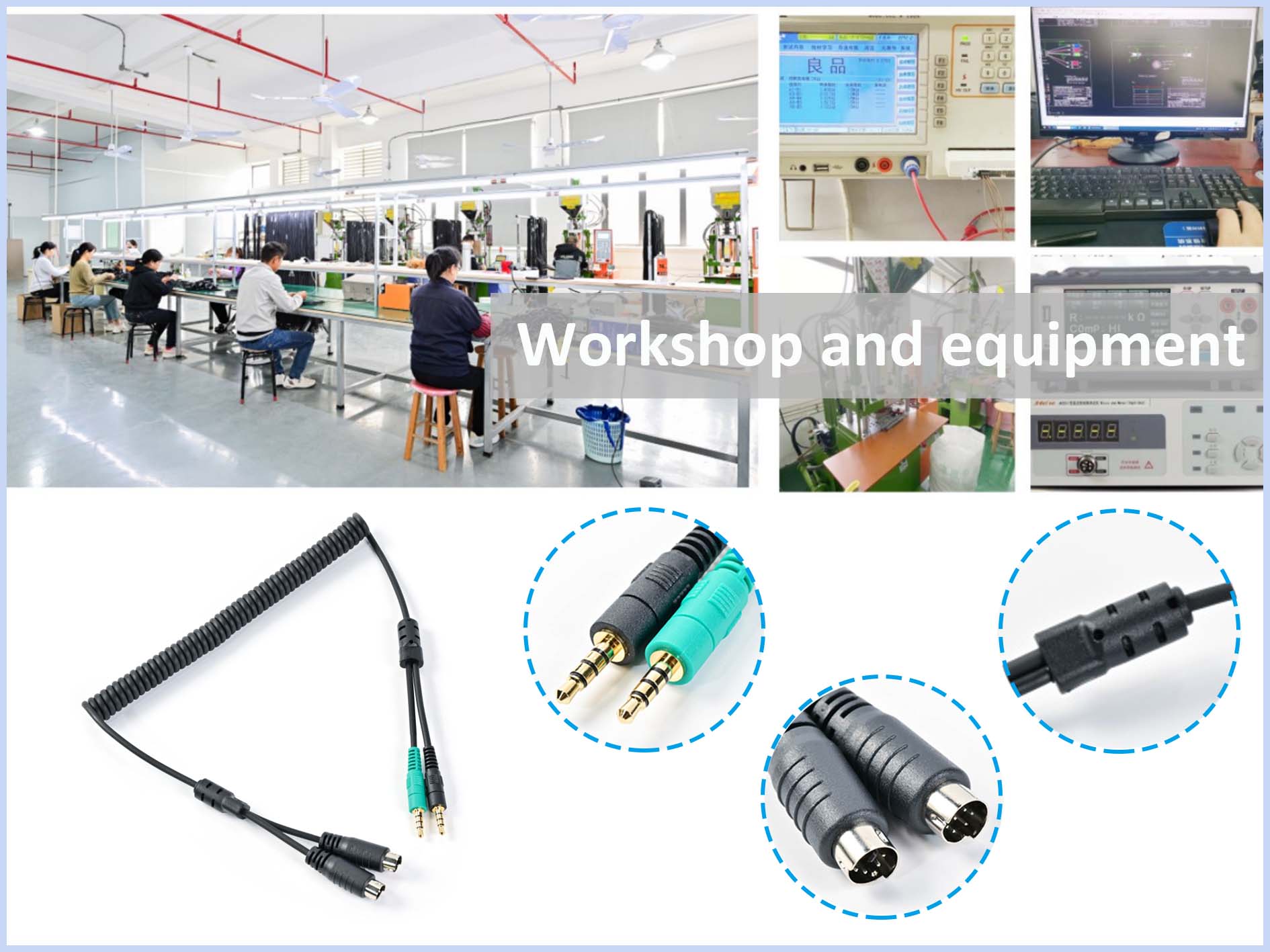

Detailed Display of The Product
| Cable Name: | 2TRRS Male to MINI DIN 8PIN and MINI DIN 6PIN Spiral Cable |
| Cable Specifications： | 28AWG*5C+D+AL+60P Elastic TPU |
| OD: | 3.5mm |
| Baking wire size： | coil length 200mm |
| Coil diameter: | 14mm,each end stay: 180mm |
| Connector1: | 2*TRRS Male Gold Plated,180 Degree Injection Molded |
| Connector2: | MINI DIN 6PIN male and MINI DIN 8PIN male |
| Lengths： | Straight length 40-45CM |
| Test requirements (100% test): | No short circuit, open circuit, dislocation, poor insulation,etc. |
