2TRS to GX12-7 Female Spiral Cable
Cable Specifications:28AWG*2C+D+AL+60P elastic TPU
OD:3.5mm
Baking wire size: coil length 200mm
Coil diameter: 14mm,each end stay: 180mm
Rod diameter: 7mm,magnetic ring injection molded at both ends

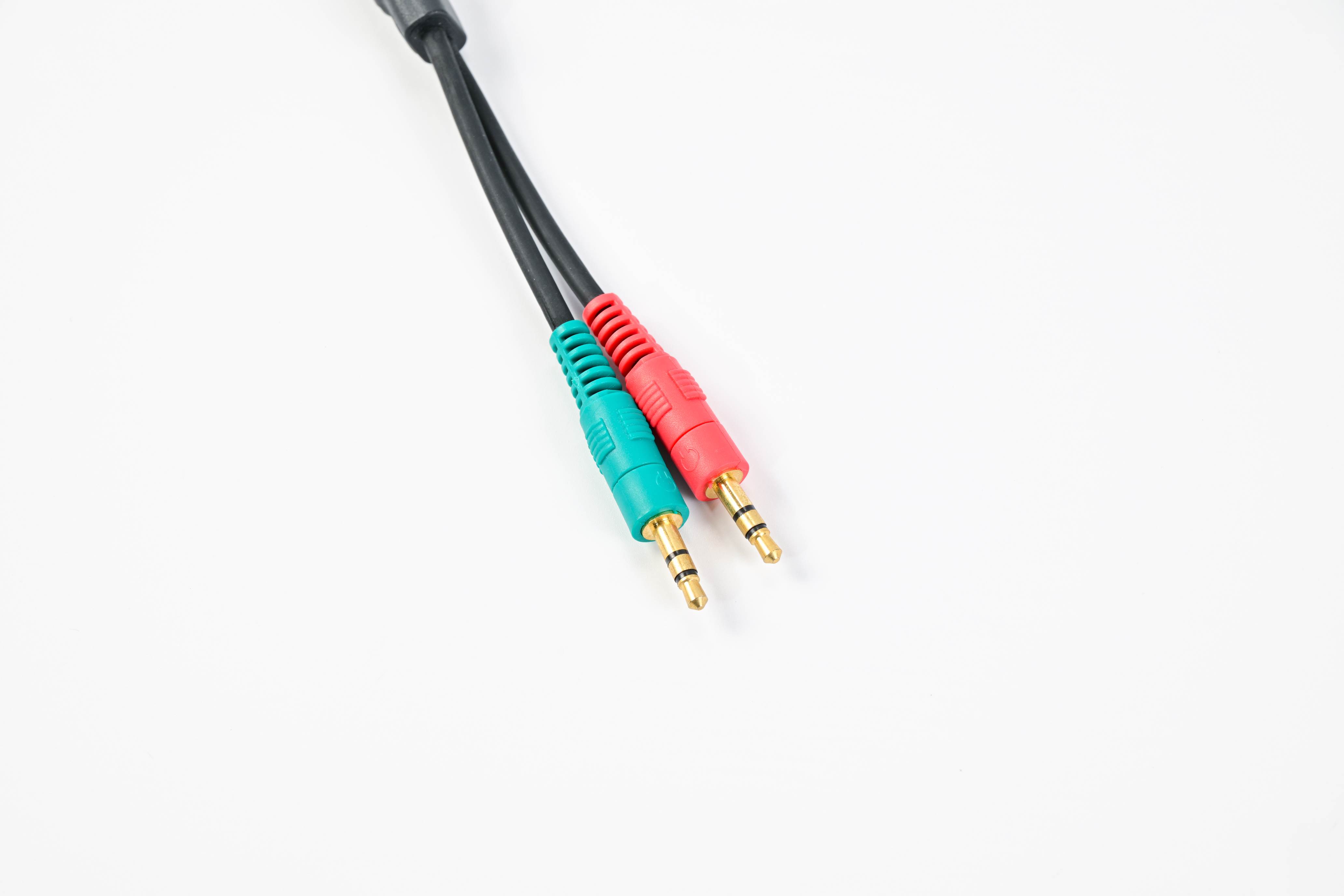

Connector1:2*TRS Male Gold Plated,180 Degree Molding

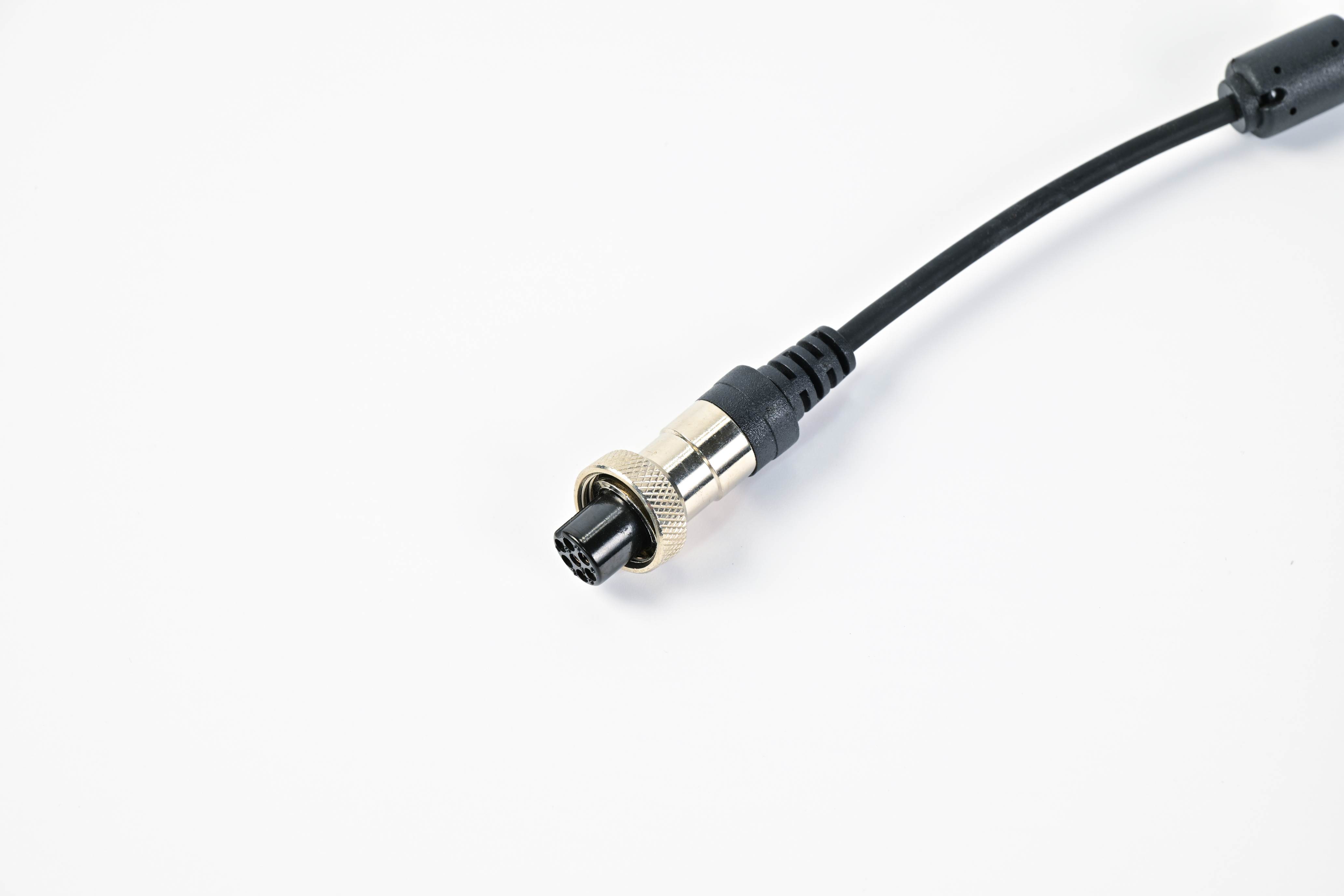

Connector2:GX12-7 Female Black Injection Molding
Lengths:200MM
Test requirements (100% test) :No short circuit,open circuit,dislocation,poor insulation,etc.

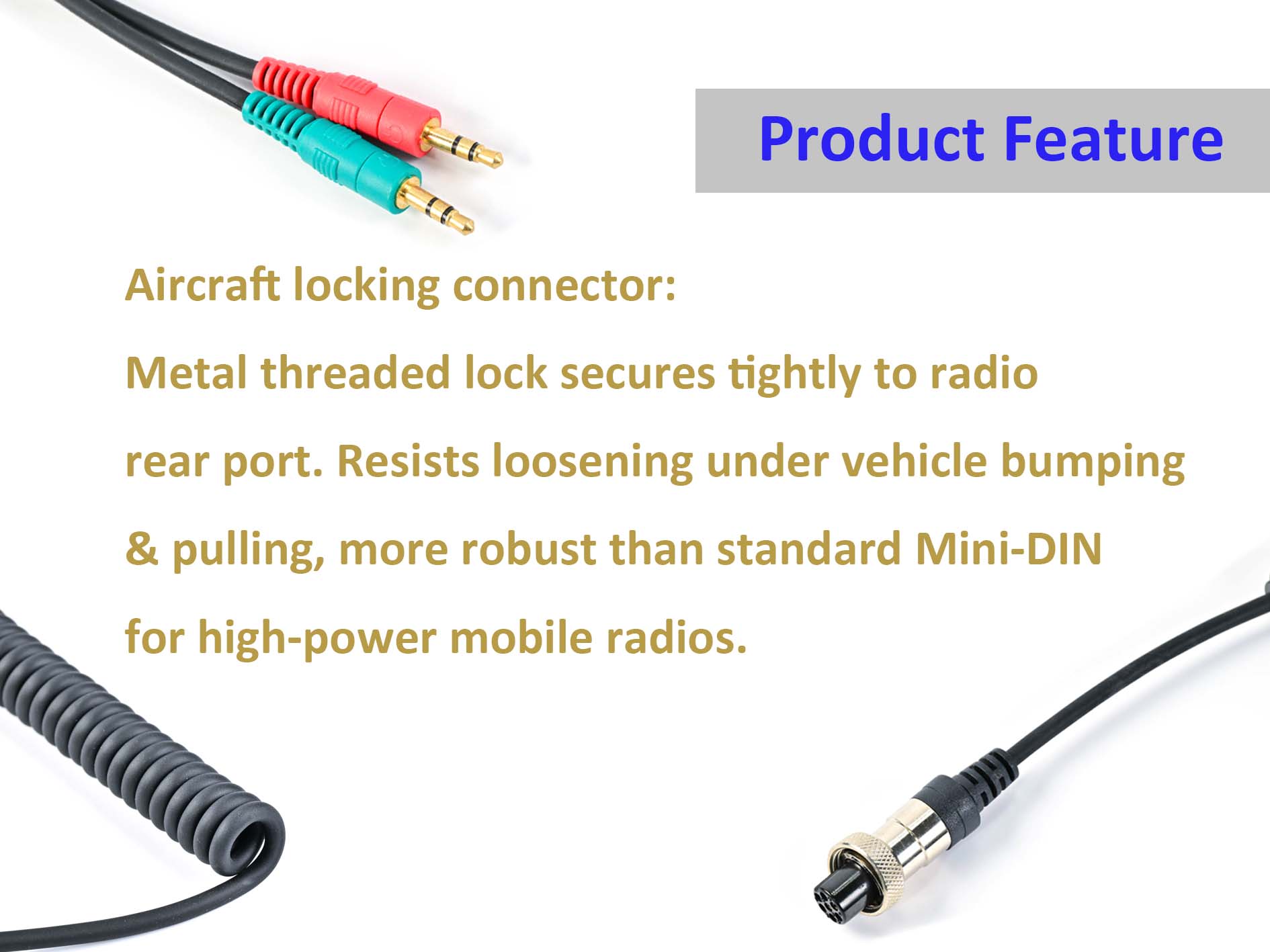

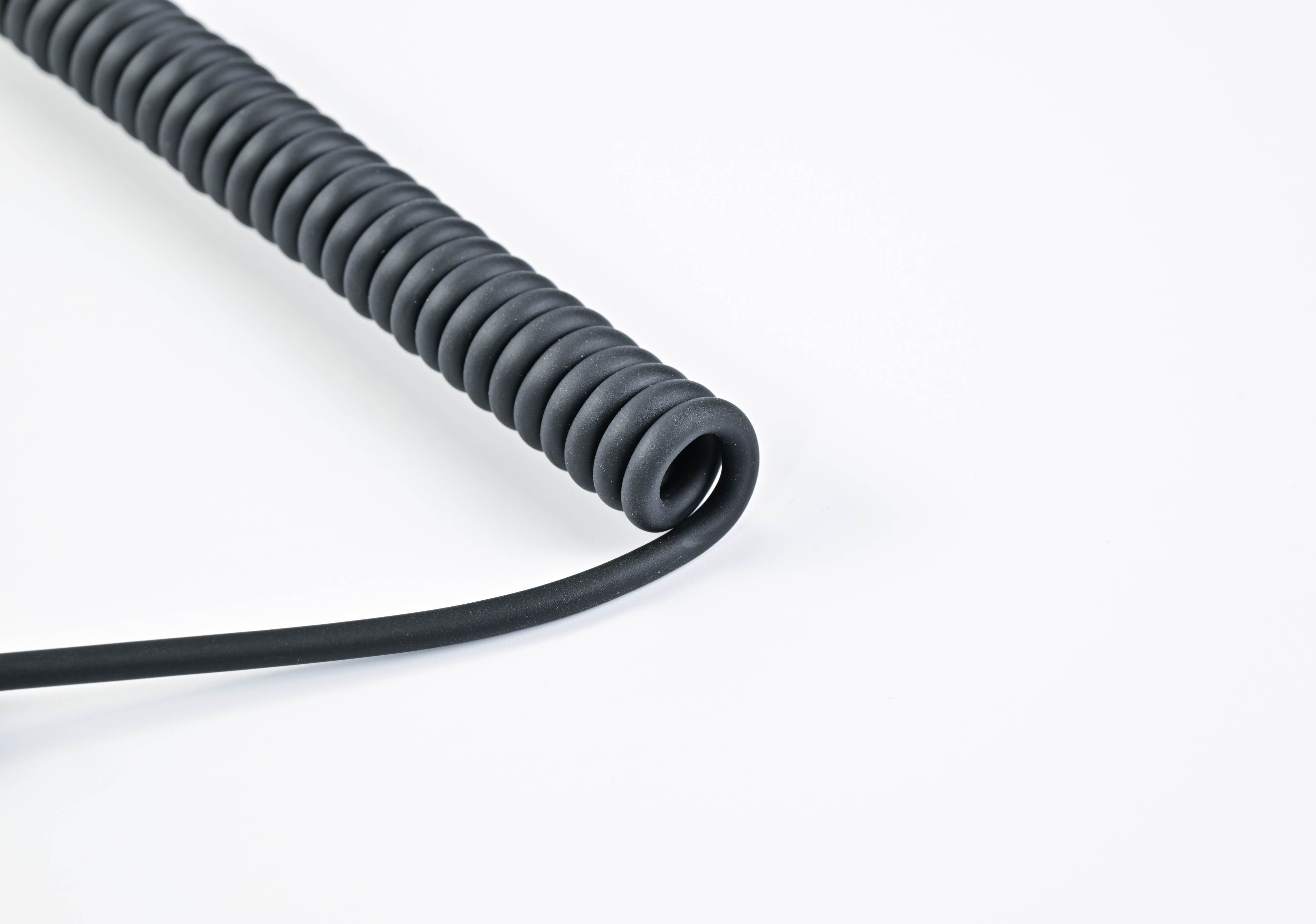

This is a 2TRS to GX12-7 female spiral cable made of durable TPU material.Equipped with gold-plated dual TRS male plugs and lockable GX12-7 female connector with metal thread,it stays tightly attached to car radio without loosening during bumpy drives.Built-in magnetic rings effectively reduce signal interference.The retractable spring coil prevents wire tangling for tidy in-car wiring and buffers pulling force to protect radio equipment for HAM mobile radio communication.

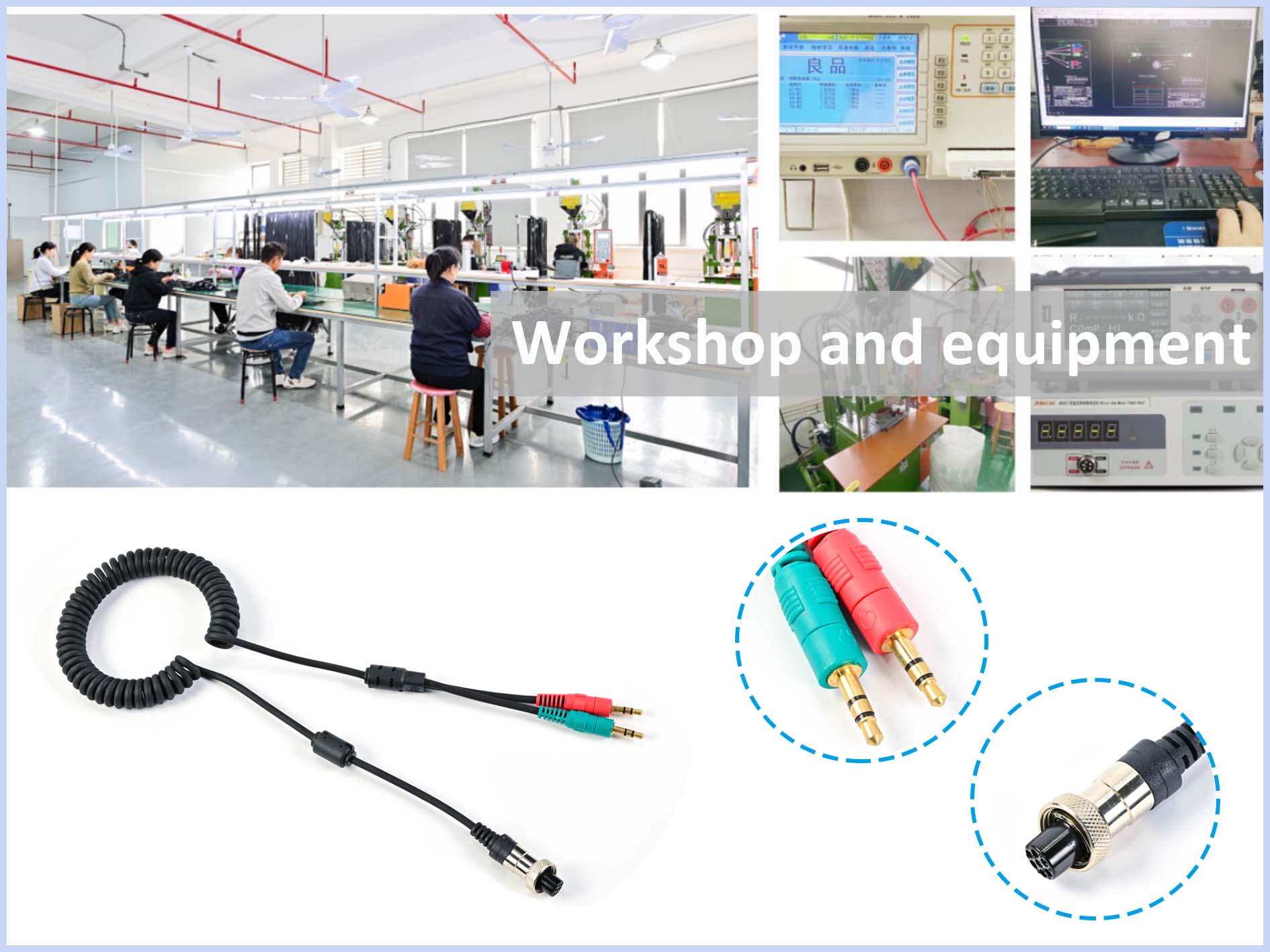

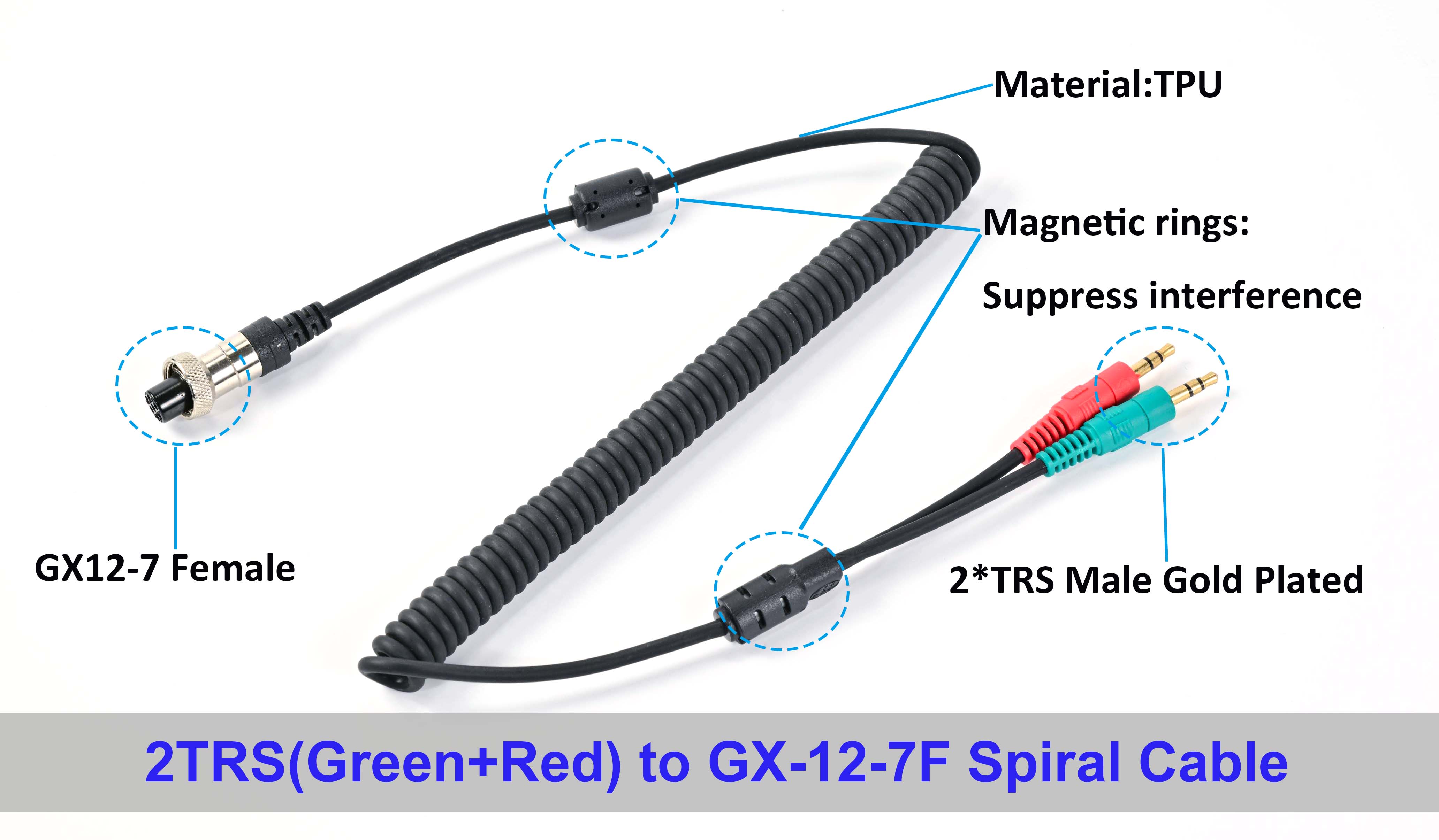

The 2TRS to GX12-7 female spiral cable,one end is 2*TRS male gold plated,the other end is GX12-7 female.The material of spiral cable is TPU.The 2TRS to GX12-7 female spiral cable is tested and certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

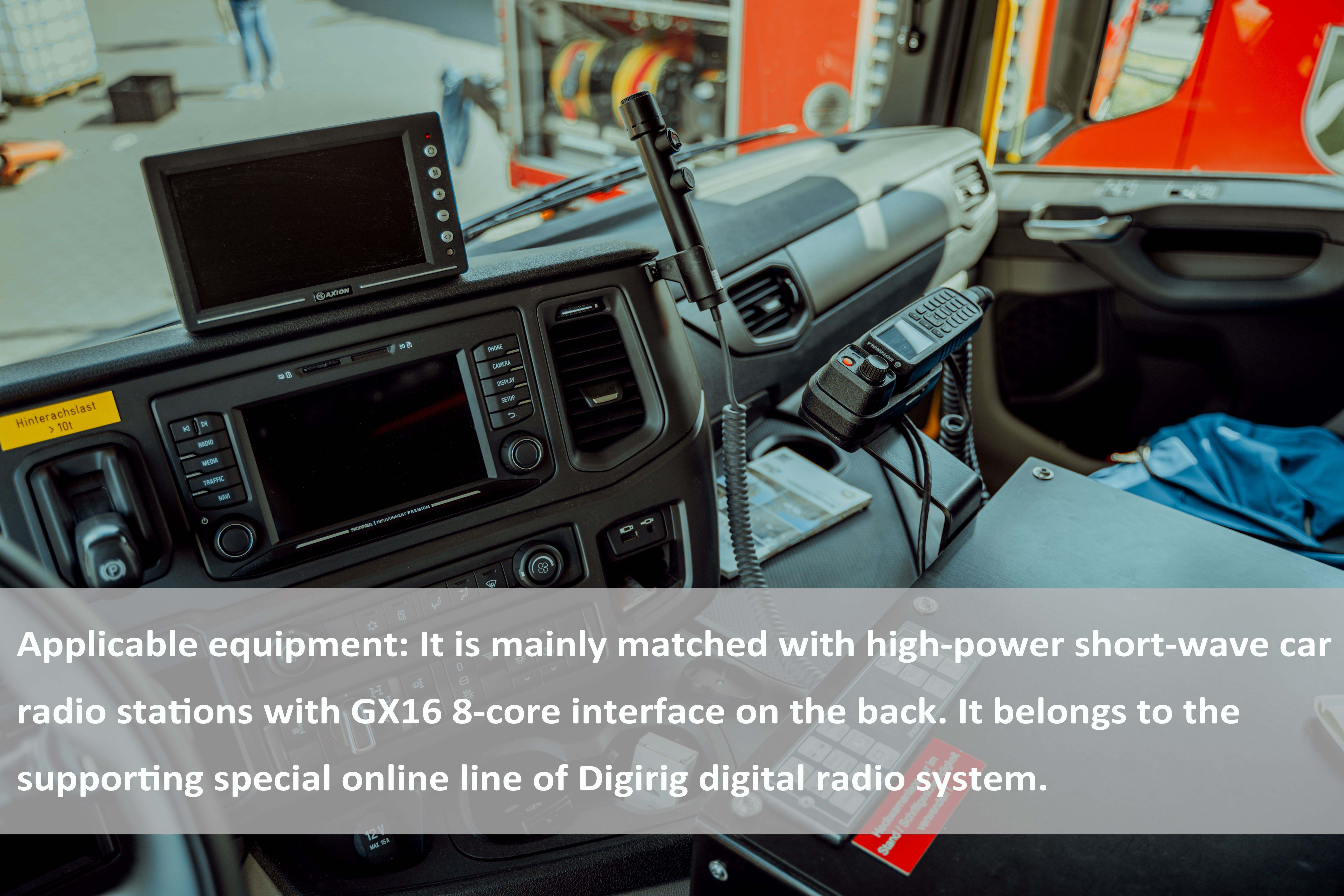

This 2TRS to GX12-7 female spiral cable is professionally customized for specific radio devices.It is mainly compatible with high-power short-wave vehicle radios equipped with a GX16 8-core rear interface,serving as a dedicated connecting wire supporting the Digirig digital radio system.Please kindly note that this cable is exclusively for HAM amateur radio equipment and is not compatible with common daily consumer electronic devices.
Detailed Display of The Product
| Cable Name: | 2TRS to GX12-7 Female Spiral Cable |
| Cable Specifications: | 28AWG*2C+D+AL+60P elastic TPU |
| OD: | 3.5mm |
| Baking wire size: | coil length 200mm |
| Coil diameter: | 14mm,each end stay:180mm |
| Rod diameter: | 7mm,magnetic ring injection molded at both ends |
| Connector1: | 2*TRS Male Gold Plated,180 Degree Molding |
| Connector2: | GX12-7 Female Black Injection Molding |
| Lengths： | 200mm |
| Test requirements (100% test) : | No short circuit,open circuit,dislocation,poor insulation,etc. |
