2TRS to TRRS Spiral Cable
Cable Specifications:28AWG*3C+D+AL+60P elastic TPU
OD:3.5mm
Baking wire size: coil length 200mm
Coil diameter: 14mm,each end stay:180mm
Rod diameter: 7mm,magnetic ring injection molded at both ends

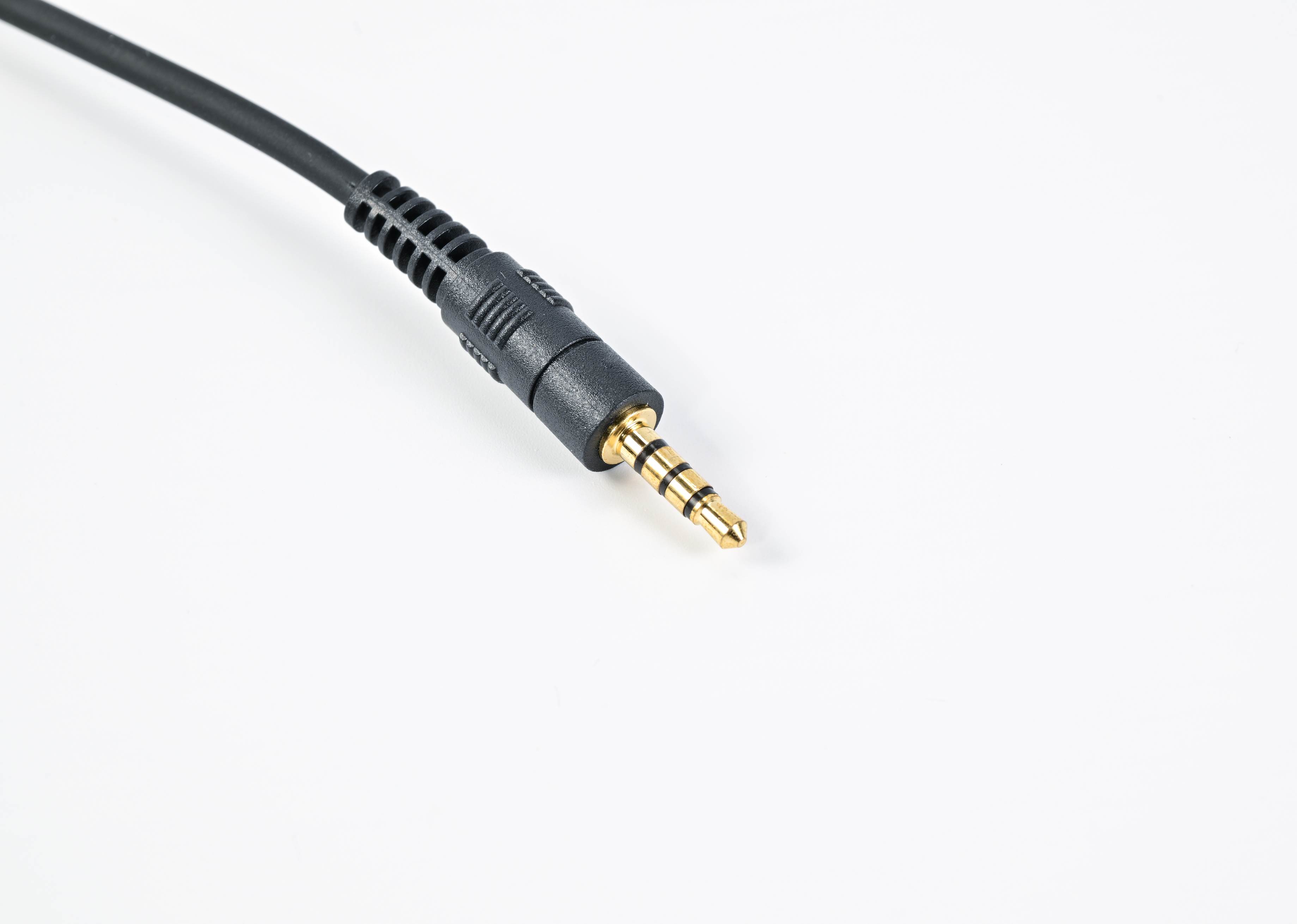

Connector1:TRRS Male Gold Plated,180 Degree Molded Black

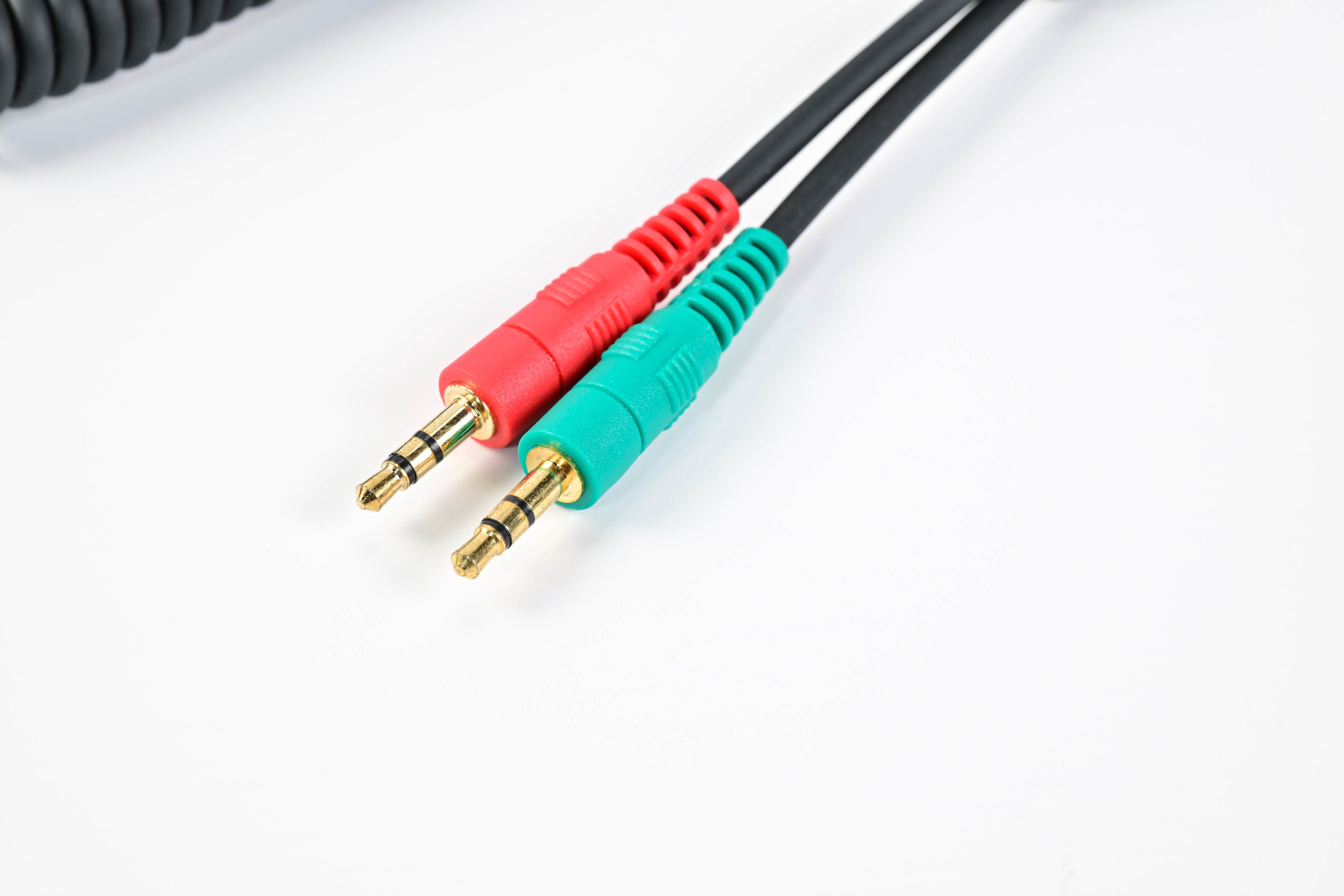

Connector2:TRS Male Gold Plated,180 Degree Molded Green,Red
Lengths:200mm
Test requirements (100% test) :No short circuit,open circuit,dislocation,poor insulation,etc.

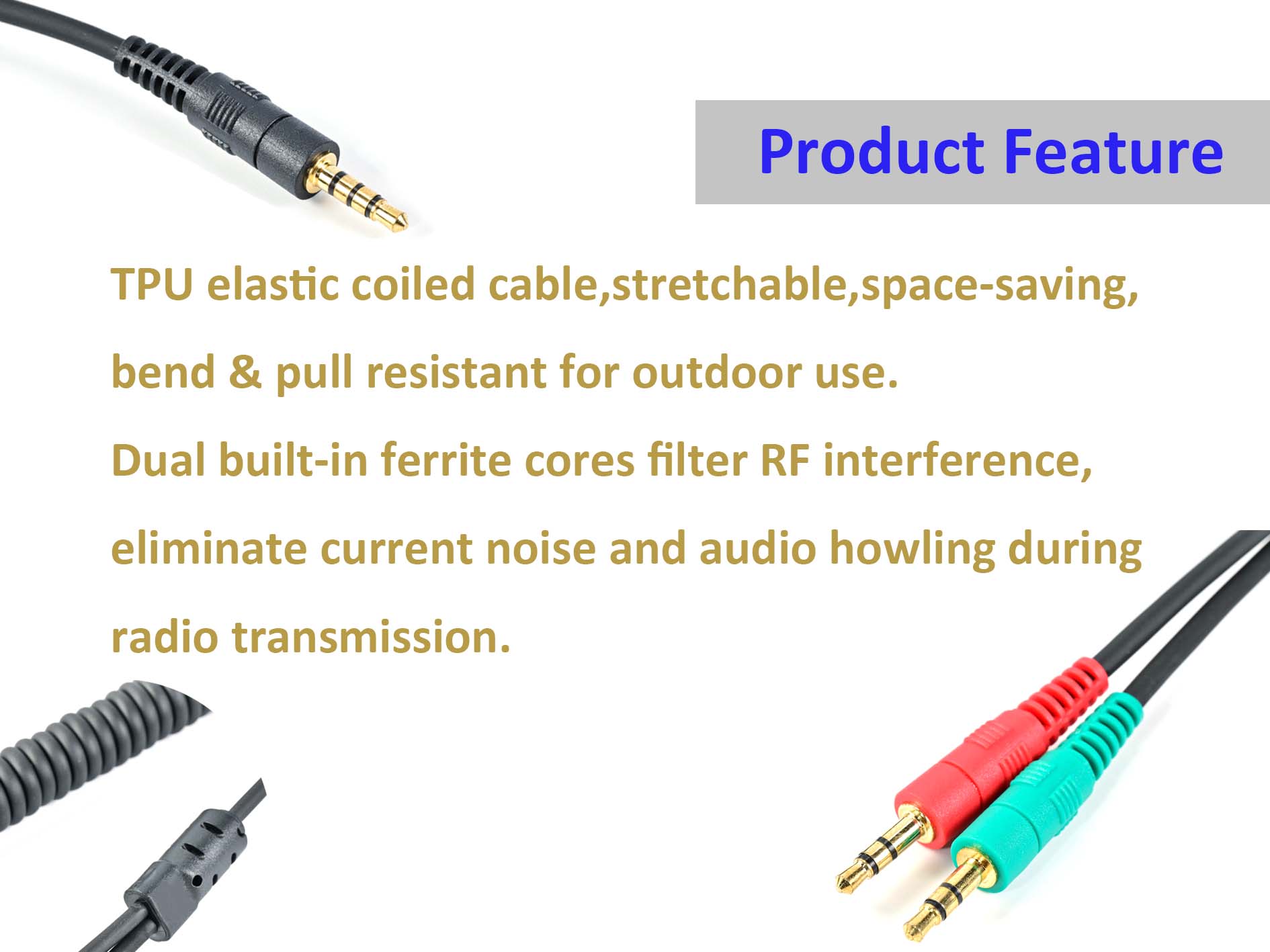

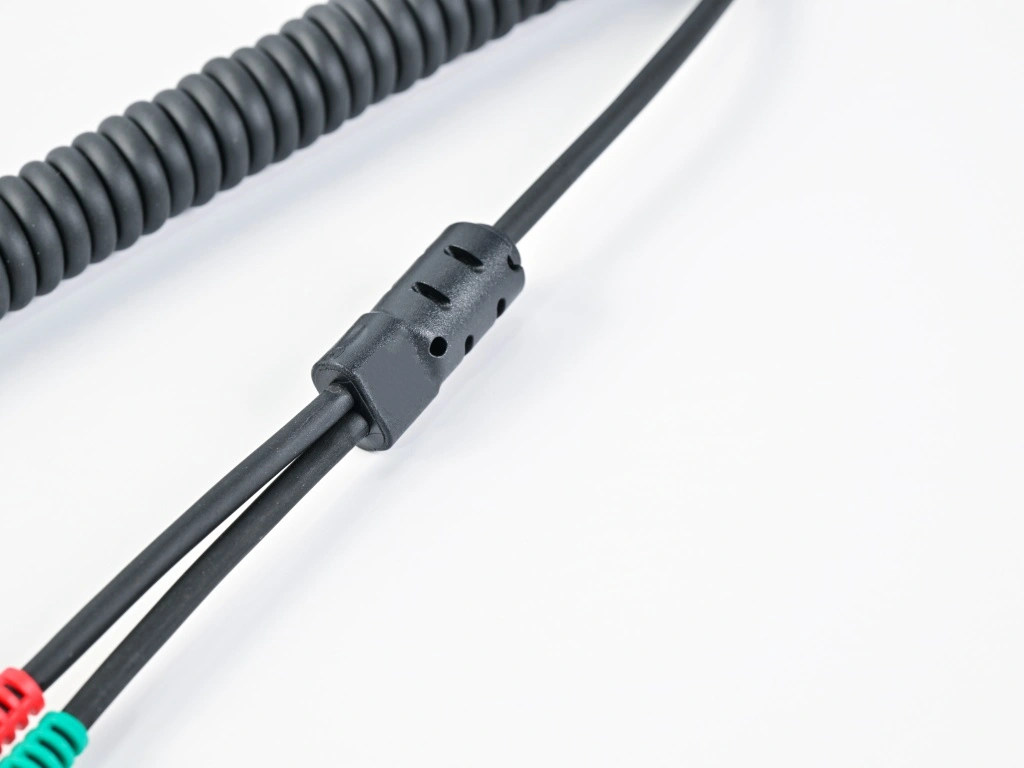

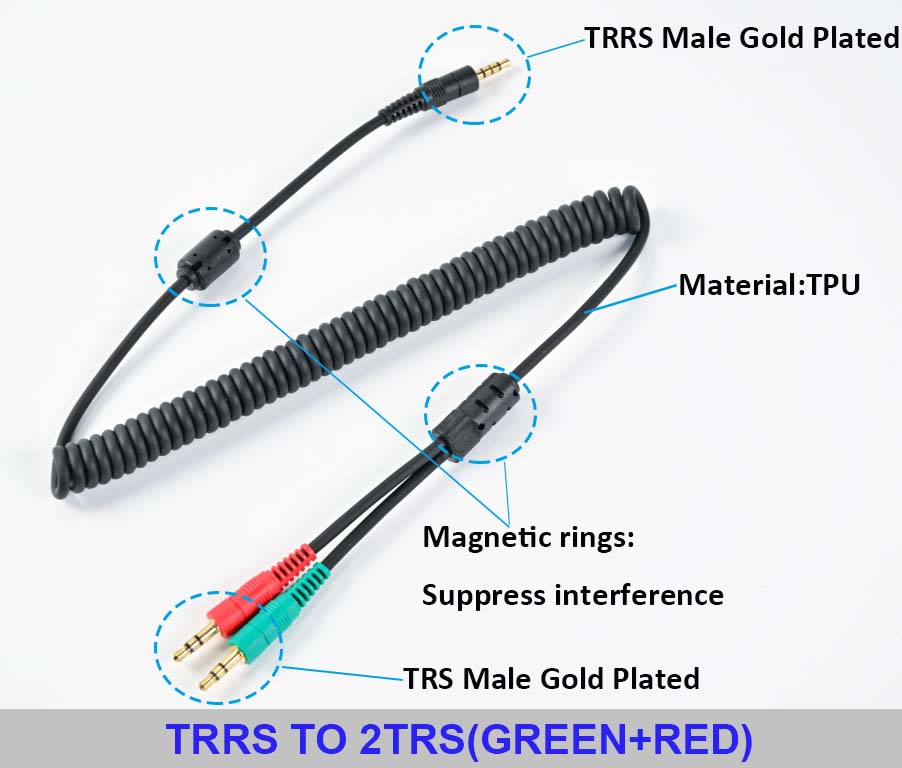

This is a 2TRS to TRRS spiral cable made of flexible TPU material.One end is a 180° straight gold-plated TRRS male plug, while the other splits into green and red 180° TRS male plugs for PC audio input and output.Built-in dual ferrite cores effectively filter RF and electromagnetic interference to eliminate howling and static noise during radio transmission. The elastic spring cord is stretchable, fold-resistant and space-saving for easy storage.
The 2TRS to TRRS spiral cable,one end is TRRS male gold plated,the other end is TRS male gold plated.The material of spiral cable is TPU.Our 2TRS to TRRS spiral cable is tested and certified strictly and passed 100% testing.
XUNER cable are professional manufacturer of spiral cable and connectors.Providing high quality solutions,to support the ODM and OEM,one-stop service,please contact us for customised solutions to meet your requirements!

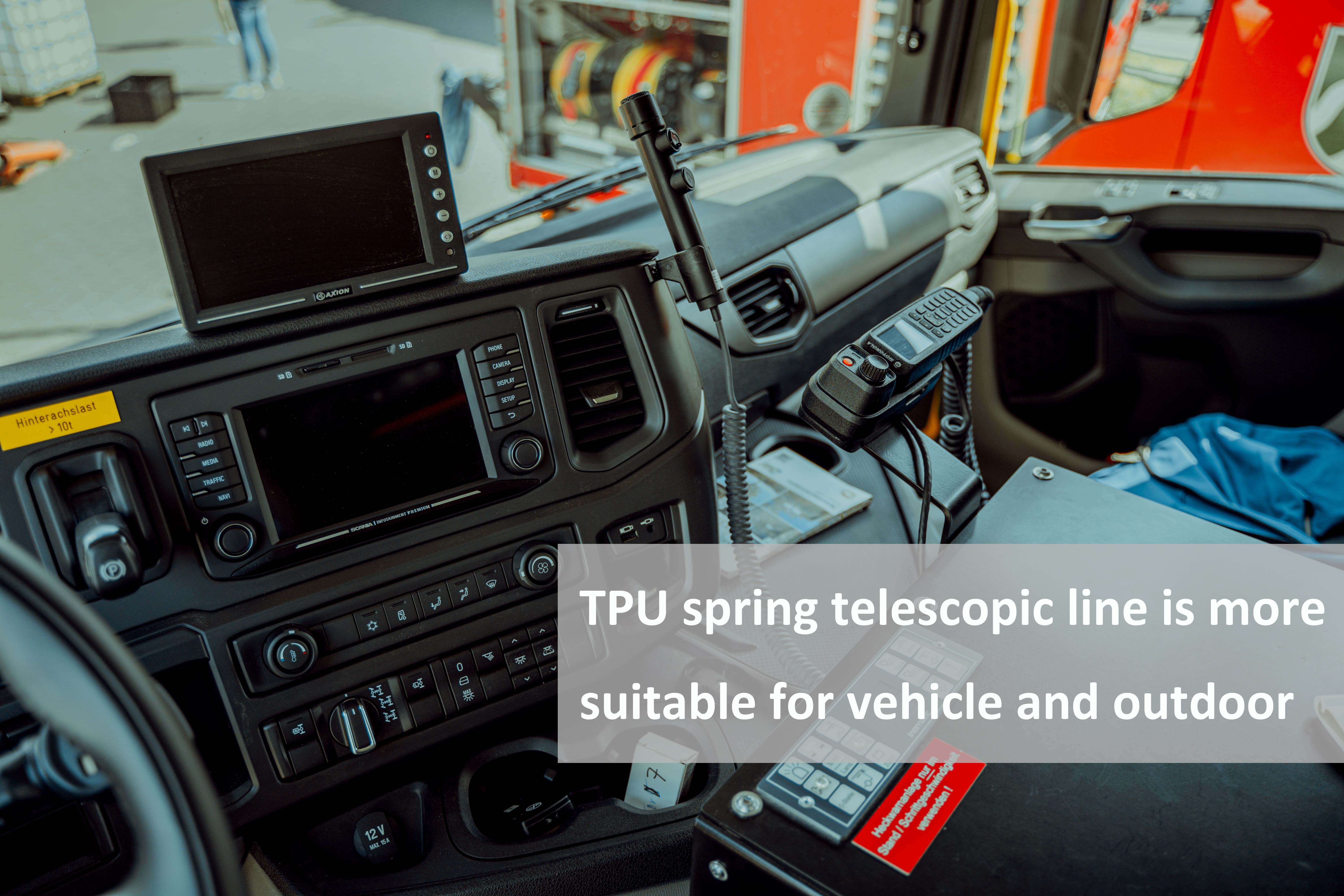

This 2TRS to TRRS spiral cable is mainly applied to HAM radio communication. It connects radio equipment to desktop computer sound cards for digital mode signal transmission, radio frequency programming, equipment debugging and audio recording. Our 2TRS to TRRS spiral cable is made of stretchable TPU spring wire, it withstands frequent pulling for vehicle and outdoor use.Dual magnetic rings greatly cut down current noise and audio howling during radio transmitting.

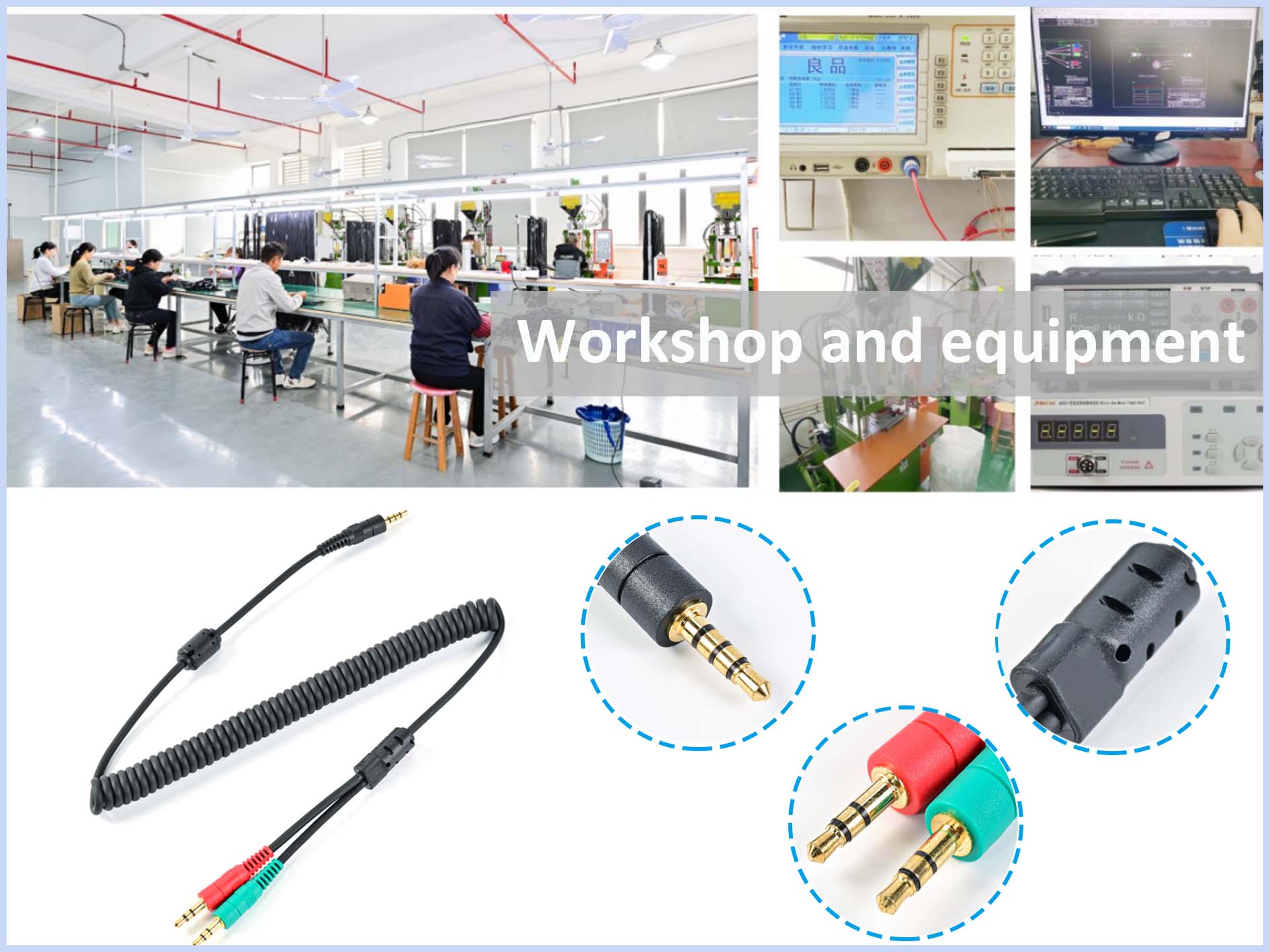

Detailed Display of The Product
| Cable Name: | 2TRS to TRRS Spiral Cable |
| Cable Specifications: | 28AWG*3C+D+AL+60P elastic TPU |
| OD: | 3.5mm |
| Baking wire size： | coil length 200mm |
| Coil diameter： | 14mm,each end stay:180mm |
| Rod diameter: | 7mm |
| Connector1: | TRRS Male Gold Plated,180 Degree Molded Black |
| Connector2: | TRS Male Gold Plated,180 Degree Molded Green and Red |
| Lengths： | 200mm |
| Test requirements (100% test): | No short circuit,open circuit,dislocation,poor insulation,etc. |
