Stop Picking the Wrong M12 Connector! M12 Coding Types & Industrial Application Guide

Introduction

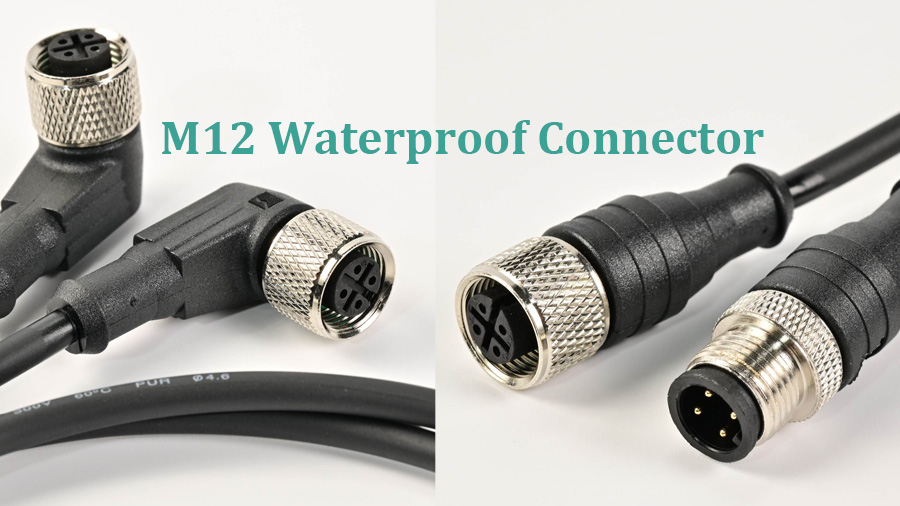

In industrial automation environments, M12 circular connectors are widely deployed for sensors, actuators, machine vision systems and other industrial hardware. They serve as critical interconnect components between devices and systems. Beyond excellent dust-water resistance, anti-vibration performance and convenient quick connect design, coded key ways represent another core advantage of M12 connectors. This mechanical feature prevents accidental cross connection of different signal types, delivering reliable transmission for data, power and signals under harsh industrial operating conditions.

M12 connectors use a coding system to distinguish electrical specifications and application scenarios. Common variants include A, B, D, X, K, L, S and T codes. Each code corresponds to unique electrical parameters for different equipment and working conditions. Below is a detailed explanation of each M12 coding type.

1. Detailed Introduction to M12 Coding Types

A-Code

• Compatible devices: Sensors, actuators, IO-Link devices and peripheral equipment. Pin count ranges from 2-17 pins.
• Performance & applications: Supports 1 Gbps Ethernet signal transmission as well as DC power connection. It is the most universal coding for automation sites.

B-Code

• Pin specification: Mainly 5-pin configuration.
• Performance & applications: Designed for fieldbus control systems, compatible with Profibus and Interbus protocols to satisfy dedicated bus-communication requirements in industrial automation.

D-Code

• Pin specification: Standard 4-pin, normally used with CAT5e cables.
• Performance & applications: Supports 100 Mbit Ethernet. Widely adopted for PROFINET, railway CCTV control systems, servos and encoders requiring medium-speed communication.

X-Code

• Pin specification: 8-pin configuration built for high-speed transmission.
• Performance & applications: Delivers up to 10 Gbps high-speed Ethernet. Ideal for industrial network wiring, machine vision, video surveillance and other bandwidth-intensive data transmission scenarios.

K-Code

• Pin specification: Special 5-pin structure.
• Performance & applications: Developed for AC power connections. It can transmit control signals, status information and power simultaneously. It provides compact, high-current, high-voltage connection solutions rated IP67/IP68 for demanding environments featuring high temperature, high humidity and heavy vibration.

L-Code

Performance & applications: Focuses on high-power power supply for industrial equipment such as PROFINET components and power-supply units. It enables compact high-current transmission under harsh conditions with IP67 / IP68 protection for flexible and reliable connections.

S-Code

Performance & applications: Specially designed for AC power supply. It features outstanding shielding performance and high protection rating, meeting strict power-connector requirements for automation hardware. It can replace C-code power-related components.

T-Code

Performance & applications: Dedicated for DC power connections with IP67 or higher waterproof rating and high reliability. It is used for industrial automation devices requiring DC power input and serves as an alternative to A-code power-related parts.

2. Core Functions of M12 Connector Coding

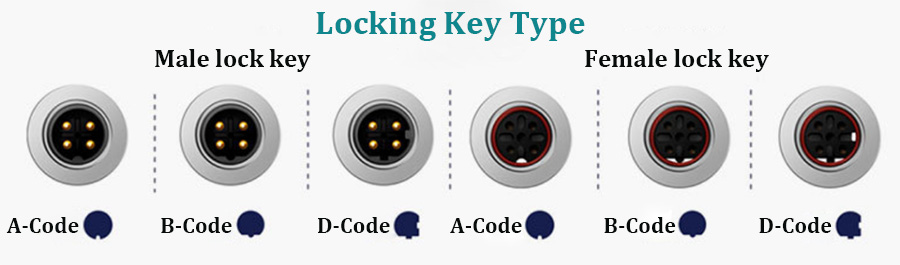

• Prevent Mismated Connections The coded keyway provides mechanical anti-mismating protection. Plugs can only mate with sockets of the identical code. It effectively avoids equipment failure and hardware damage caused by blind or incorrect insertion and improves operational safety on-site.
• EMI / RFI Shielding Performance Most coded M12 connectors come with shielding structures to mitigate electromagnetic and radio-frequency interference, ensuring stable signal and data transmission.
• Indication of Electrical Characteristics Coding visually marks electrical properties such as Ethernet speed and AC / DC power type, helping engineers and buyers make correct selection decisions and reduce specification matching errors.

3. Selection Summary

A-Code, B-Code, D-Code and X-Code are the most widely used options on the market. A-Code is common for general purpose sensors and encoders; B-Code targets Profibus fieldbus systems; D-Code applies to 100Mbps industrial Ethernet; as a new generation solution, X-Code gains growing popularity in high-speed industrial Ethernet and is expected to gradually replace partial A-Code and D-Code applications.

Thanks to robust mechanical performance and stable signal transmission, M12 connectors have been adopted across multiple automation industries. When selecting connectors, match the coding according to signal type, transmission speed, power supply mode and actual working environment.
